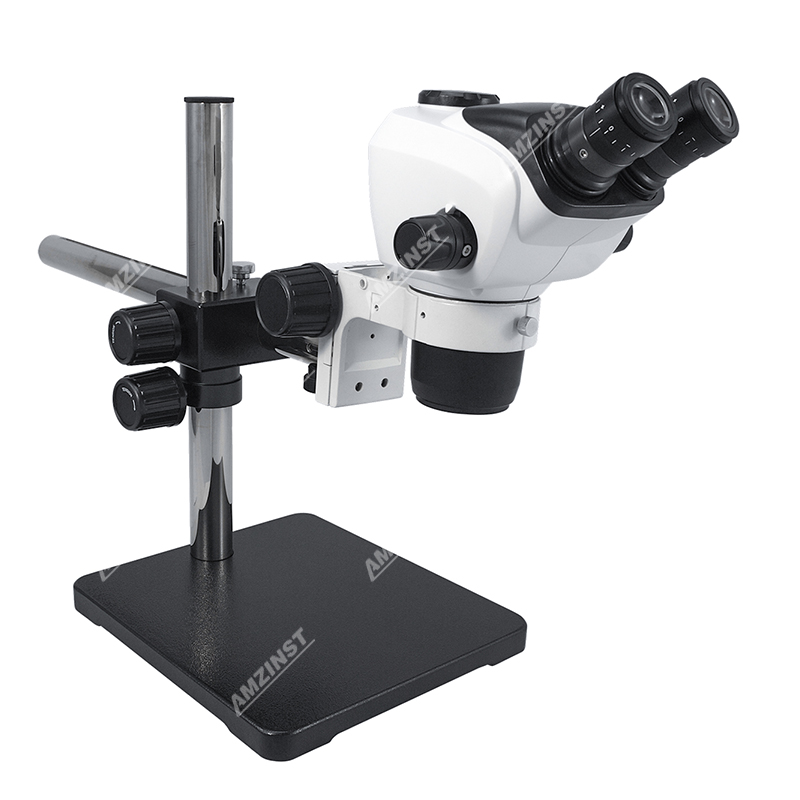

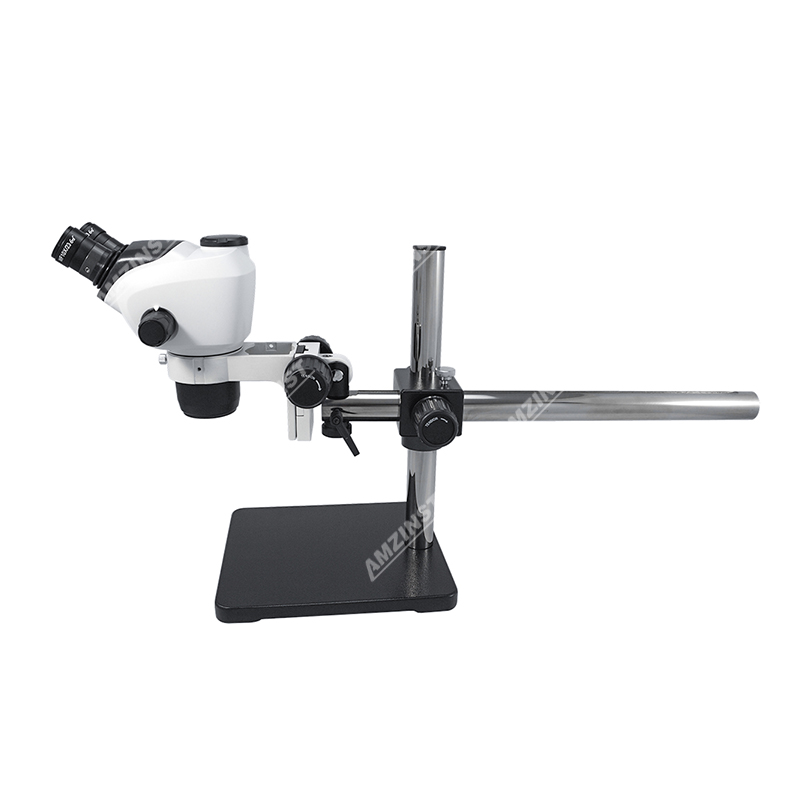

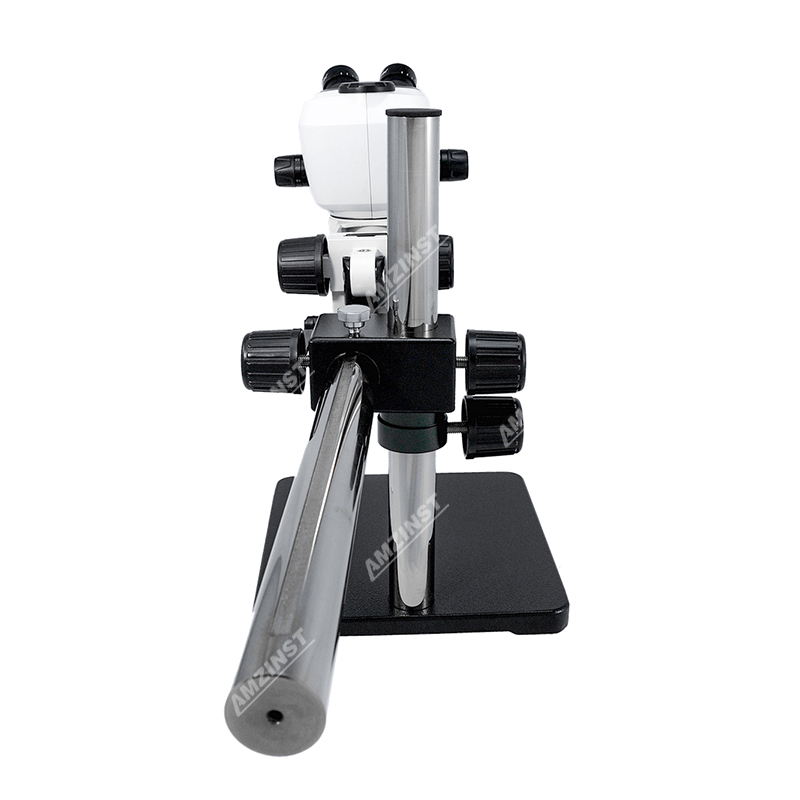

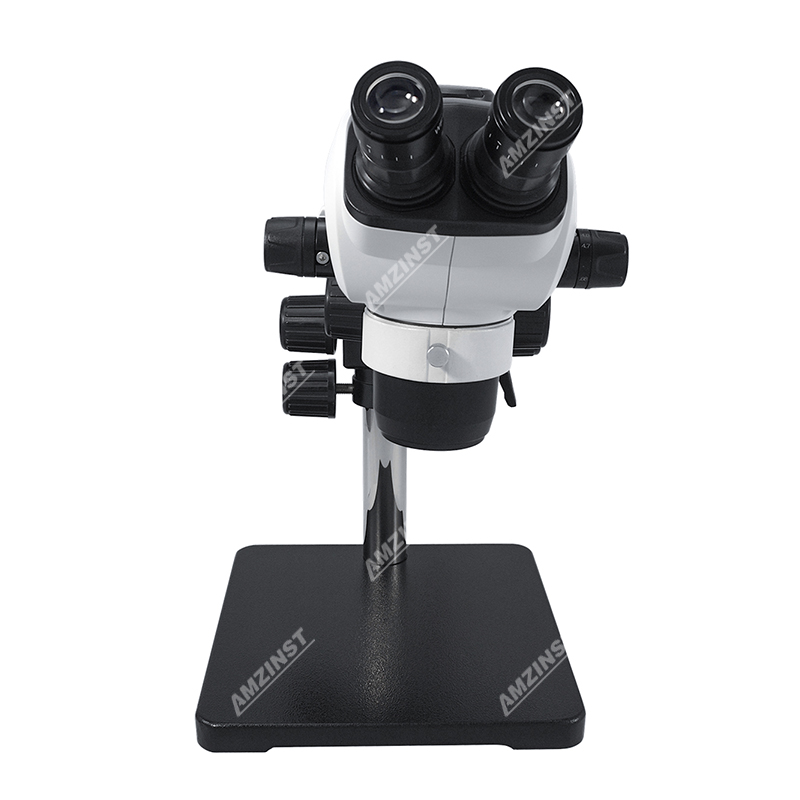

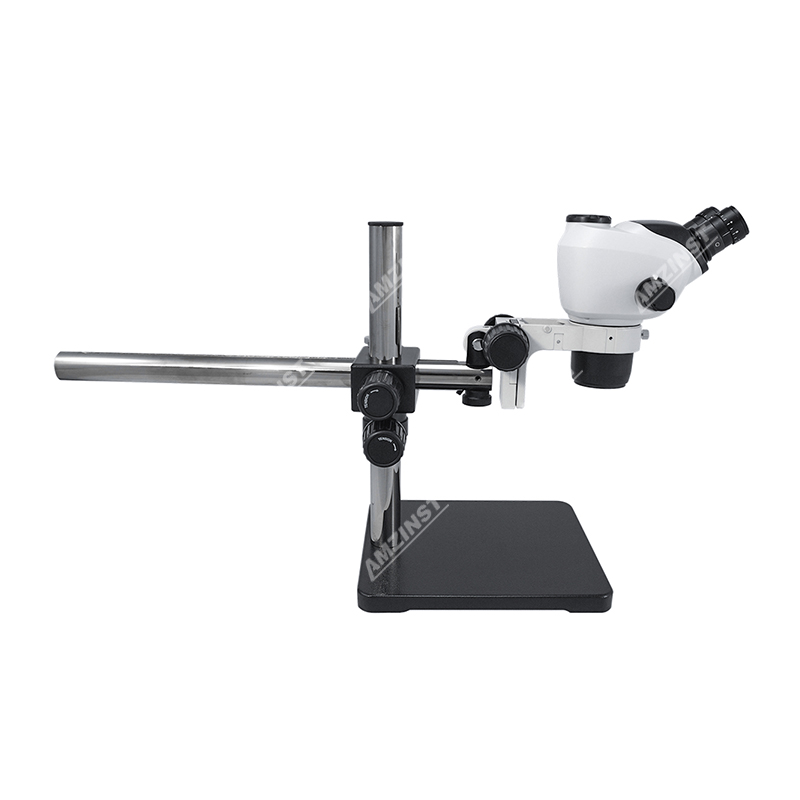

ZM-10BP4 0.68X-4.7X Greenough Binocular Stereo Microscope With T-P4 Single Arm Boom Stand
  • Specifications
  • Accessories
  • Products Catalog

  • ● Optical system: Greenough
    ● Viewing head: Binocualr head, Inclined 35° Interpupillary distance adjustment 50-75mm, Diopter adjustment +/- 5.
    ● Eyepieces: WF10X/23mm, Eyeguards included
    ● Zoom Objective: 0.68X-4.7X
    ● Zoom Ratio: 6.8:1
    ● Working Distance: 110mm
    ● Head mounting size: 76mm in diameter
    ● Dust cover: Yes (Included)


    Base:
    ● T-P4W Arm Boom Stand with Focusing Mount
    ● Expand the scope of operation and observe the object in any direction
    ● Vertical Post: 380mm
    ● Diameter: 37mm
    ● Horizontal moving: 420mm
    ● Base Size: 260x280x15mm



    Additional Objective
         		0.5X
         		1X(built-in)
         		2X
    W.D
         		189mm
         		110mm
         		36mm
    Eyepiece 10X/|μ23mm
         		Magnification
         		3.4-23.5x
         		6.8-47x
         		13.6-94x
    Field dia. (mm)
         		67.65-9.79mm
         		33.82-4.89mm
         		16.91-2.46mm
    Eyepiece 15X/|μ16mm
         		Magnification
         		5.1-35.25x
         		10.2-70.5x
         		20.4-141x
    Field dia. (mm)
         		47.06-6.81mm
         		23.53-3.40mm
         		11.76-1.70mm
    Eyepiece 20X/|μ12mm
         		Magnification
         		6.8-47x
         		13.6-94x
         		27.2-188x
    Field dia. (mm)
         		35.294-5.11mm
         		17.65-2.55mm
         		8.82-1.28mm
