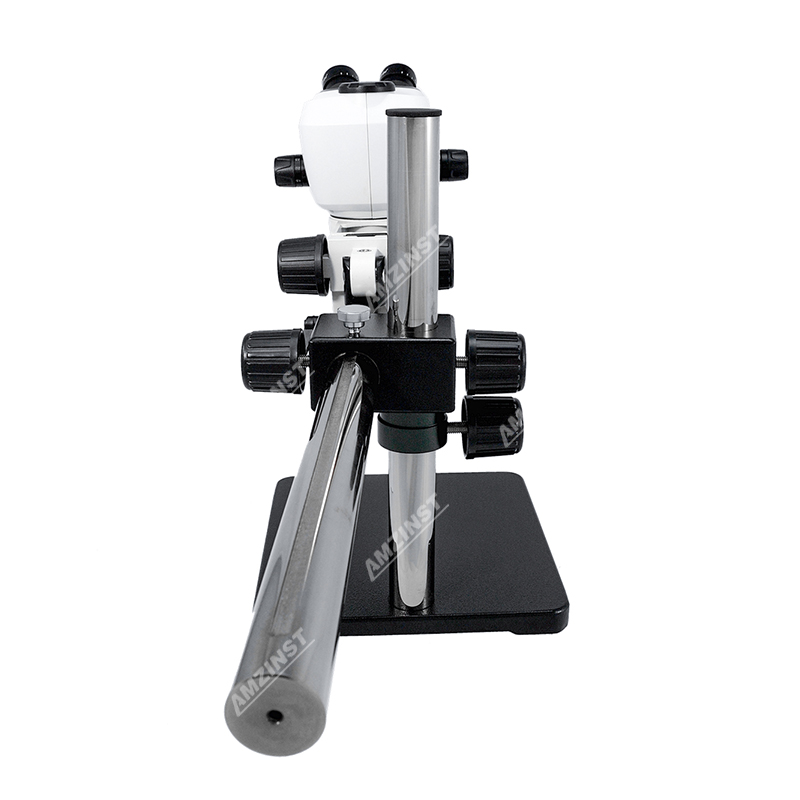

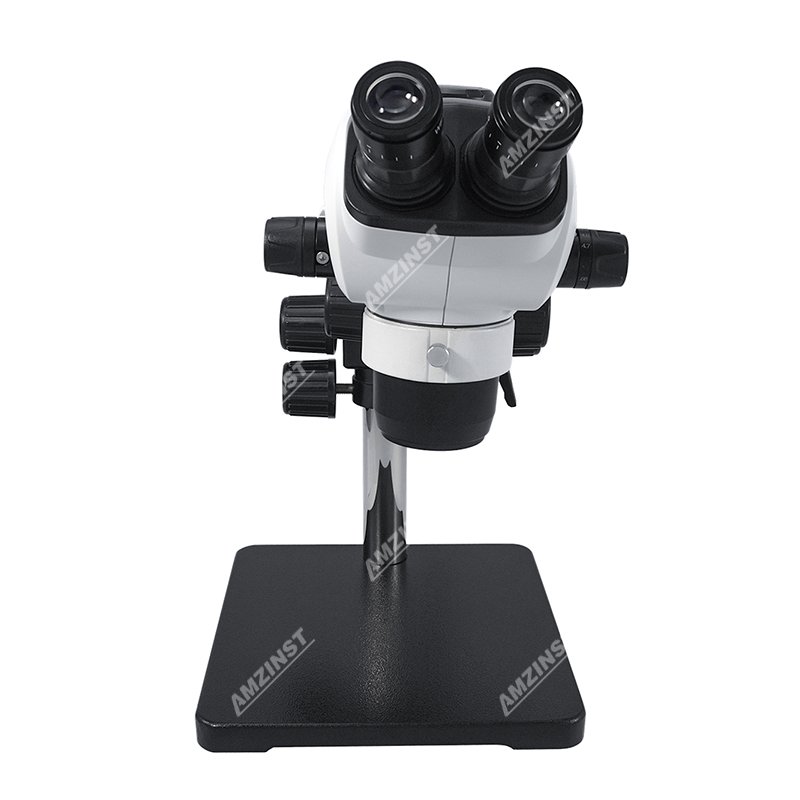

ZM-20BP3 0.66X-5.1X Greenough Binocular Stereo Microscope With T-P3 Dual Arm Boom Stand
  • Specifications
  • Accessories
  • Products Catalog

  • ● Optical system: Greenough
    ● Viewing head: Binocualr head, Inclined 35° Interpupillary distance adjustment 50-75mm, Diopter adjustment +/- 5.
    ● Eyepieces: WF10X/24mm, Eyeguards included
    ● Zoom Objective: 0.65X-5.3X
    ● Zoom Ratio: 8.1 : 1
    ● Working Distance: 110mm
    ● Head mounting size: 76mm in diameter
    ● Dust cover: Yes (Included)


    Base:
    ● T-P3W Dual Arm Boom Stand with Focusing Mount
    ● Expand the scope of operation and observe the object in any direction
    ● Vertical Post: 380mm
    ● Diameter: 37mm
    ● Horizontal moving: 420mm
    ● Base Size: 260x280x15mm



    Additional Objective
         		0.5X
         		1X(built-in)
         		2X
    W.D
         		189mm
         		110mm
         		36mm
    Eyepiece 10X/24mm
         		Magnification
         		3.3-25.5x
         		6.6-51x
         		13.2-102x
    Field dia. (mm)
         		72.73-9.41mm
         		36.36-4.71mm
         		18.18-2.35mm
    Eyepiece 15X/16mm
         		Magnification
         		4.95-38.25x
         		9.9-76.5x
         		19.8-153x
    Field dia. (mm)
         		48.48-6.27mm
         		24.24-3.14mm
         		12.12-1.57mm
    Eyepiece 20X/12mm
         		Magnification
         		6.6-51x
         		13.2-102x
         		26.4-204x
    Field dia. (mm)
         		39.64-4.71mm
         		18.18-2.35mm
         		9.09-1.18mm
