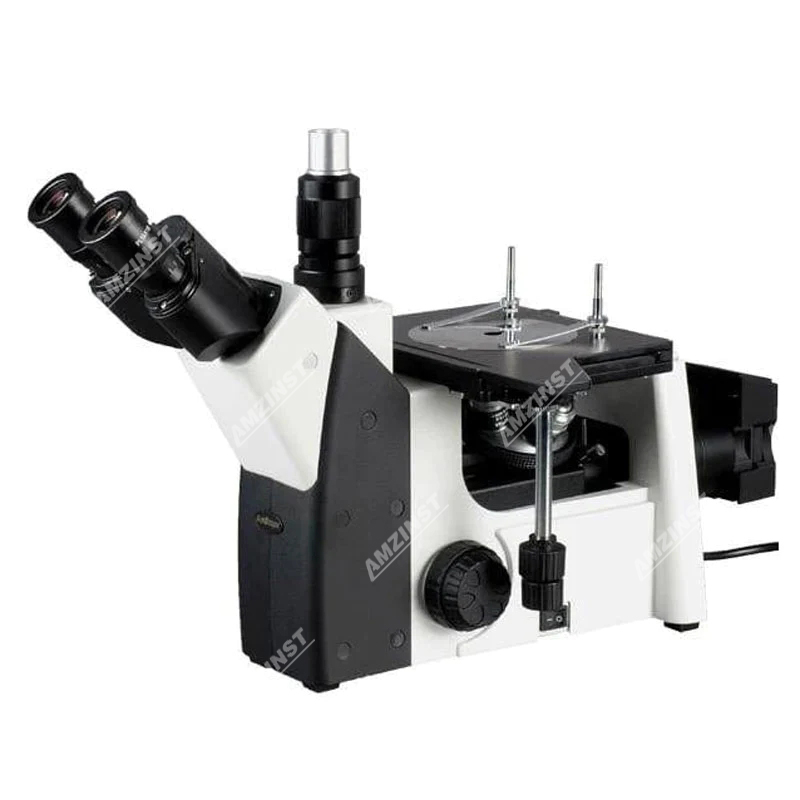

AJX-200M Inverted Trinocular Metallurgial Microscope
--With infinity optic system
--Offering upright image viewing. Avoid illusion from the reverse image
---With long working distance Plan objective
---Nosepiece: for bright field and dark filed use Plan objective, which offer sharp image and image is plain.
---With reflected Vertical Kohler illumination offering even and enough brightness for different objective
  • Specifications
  • Accessories
  • Products Catalog
  • AJX-200M
    Eyepieces

    High Eye point Wide Field Plan eyepiece: PL10X / 18mm

    High Eye point Wide Field Plan eyepiece: PL10X / 18mm, with micrometer

    High Eye point Wide Field Plan eyepiece: PL15X / 13mm

    High Eye point Wide Field Plan eyepiece: PL15X / 13mm, with micrometer

    High Eye point Wide Field Plan eyepiece: PL20X / 10mm

    ●●





    Objective

    LWD Plan Achromatic Metallurgical Objective 5X / 0.125 WD=15.51mm

    LWD Plan Achromatic Metallurgical Objective 10X / 0.25 WD=8.7mm

    LWD Plan Achromatic Metallurgical Objective 20X / 0.40 WD=8.8mm

    LWD Plan Achromatic Metallurgical Objective 50X / 0.60 WD=5.1mm

    LWD Plan Achromatic Metallurgical Objective 100X / 0.80 WD=2.0mm

    ●

    ●

    ●

    ●


    Head

    Gemel trinocular, 45°inclined, Diopter adjustment ±5 for each side, Interpupillary distance adjustable between: 54-75mm Beam Splitt: binocular : trinocular =80% : 20%

    		●
    Nosepiece

    Quadruple nosepiece

    Quintuple nosepiece

    ●


    Stage

    Size:180x155mm moving range:75x40mm, precision: 0.1mm

    Metal working stage board ( Center hole diameter 25 )

    Metal working stage board ( Center hole diameter 12 )

    ●


    ●

    Focus

    Coaxial coarse and fine adjustment, coarse adjustment 38mm, precision of fine adjustment: 0.002mm

    		●
    Illumination

    Transmission Koehler illumination with alterable aperture diaphragm and centerable field diaphragm, wide-range volltage 100-240V, 6V30W halogen bulb and brightness adjustable

    Transmission Koehler illumination with alterable aperture diaphragm and centerable field diaphragm, wide-range volltage 100-240V, single 5W LED light, warm color temperature 2850K-3250K and brightness adjustable


    ●

    Filters

    Bule filters ( Dia:32mm )

    Green filters ( Dia:32mm )

    Yellow filters ( Dia:32mm )

    Natural filters ( Dia:32mm )

    ●




    Polarization

    Polarizer
    360 degree rotatable analyzer

    Camera adapter
    Accessories

    0.35X camera adapter, C-type interface, adjustable

    0.5X camera adapter, C-type interface, adjustable

    0.65X camera adapter, C-type interface, adjustable

    1X camera adapter, C-type interface, adjustable

    Micrometer
    Accessories

    High-precision micrometer, grid value 0.01mm

    Standard micrometer, grid value 0.01mm
