Nikon Phototube to C/T2/M52 Mount Adaptor (NikonTV Adaptor)
● Convert the NIKON trinocular microscope phototube/head/port (have standard 38 mm(1.50 inch) outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch)
● With different built-in reduction lens (1.2X,1X, 0.8X, 0.70X, 0.55X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 2.7”, 1.8”, 4/3”, 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);
● Can be installed in UIS trinocular tube such as : NIKON E100, E200, 50i, 55i, 80i, 90i, Ni series, Ti Series, SMZ800, SMZ1000, SMZ15000 biology microscopes and industrial microscopes
● Build of material: stainless steel material for the C-Mount end and spray-painted aluminum for the phototube end
● Telecentric optics with low light deficiency
● Parfocal with different microscope objective lenses
● Diffraction limited MTF
● Aperture totally coupled with UIS microscope objective exit pupil
|
- Specifications
- Accessories
- Products Catalog
Nikon Phototube to C-Mount Adaptor (NikonTV Adaptor)
Model
|
|
Magnification
|
Sensor Size
|
Mount Type
|
|

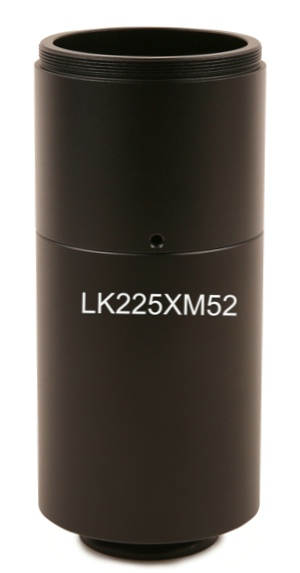

NK225XM52
MBB42225
|
|
2.25X
|
2.7”,1.8”, 4/3”, 1”
|
M52-Mount
|
|

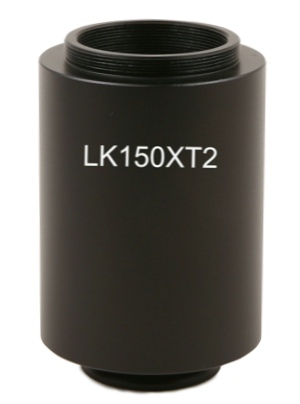

NK150XT2
MBB42150
|
|
1.5X
|
1.8”, 4/3”, 1”, 2/3”
|
T2-Mount
|

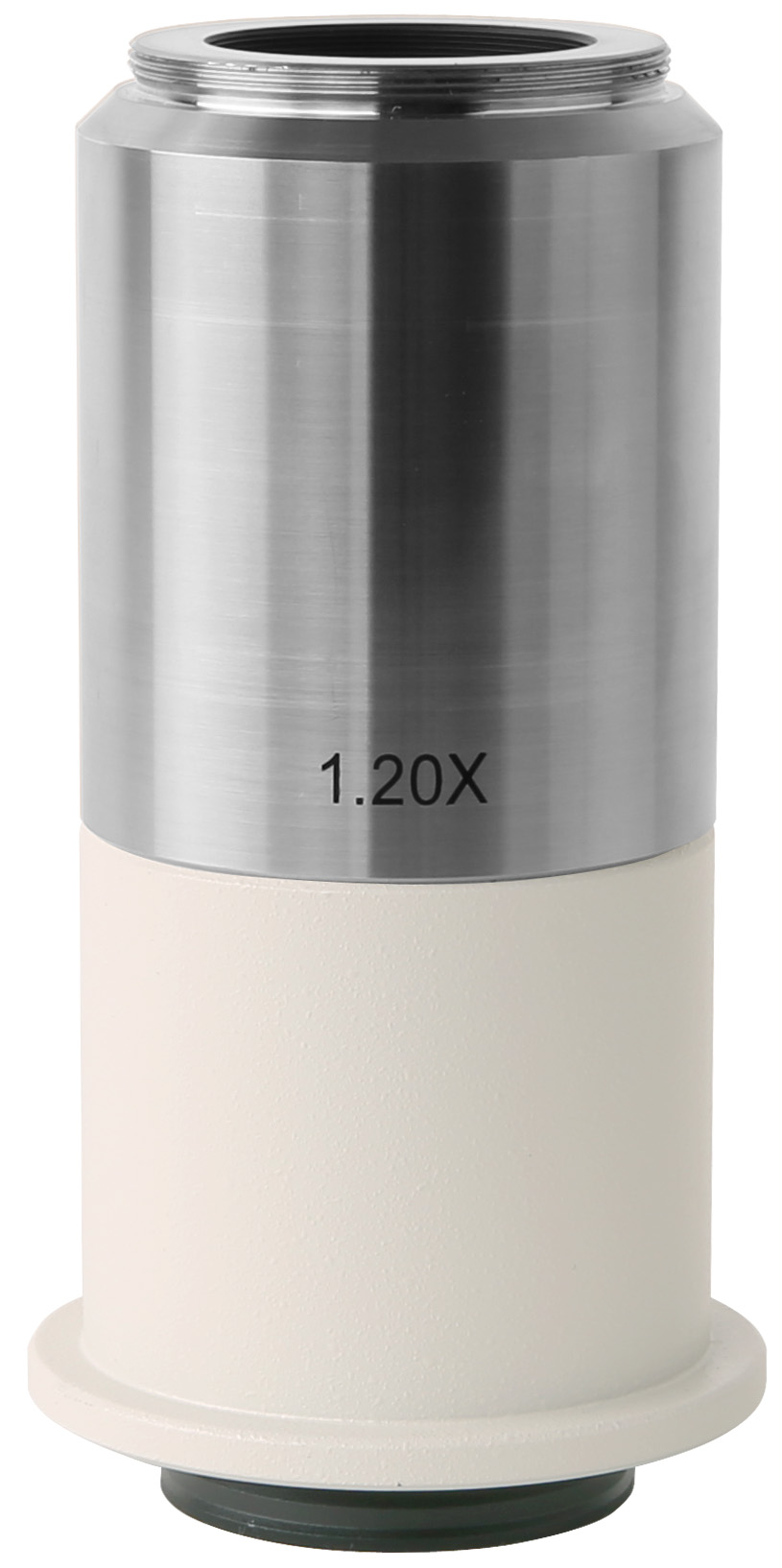

MQD42120
MBB42120
|
|
1.20X
|
4/3”,1”
|
T2-Mount
|

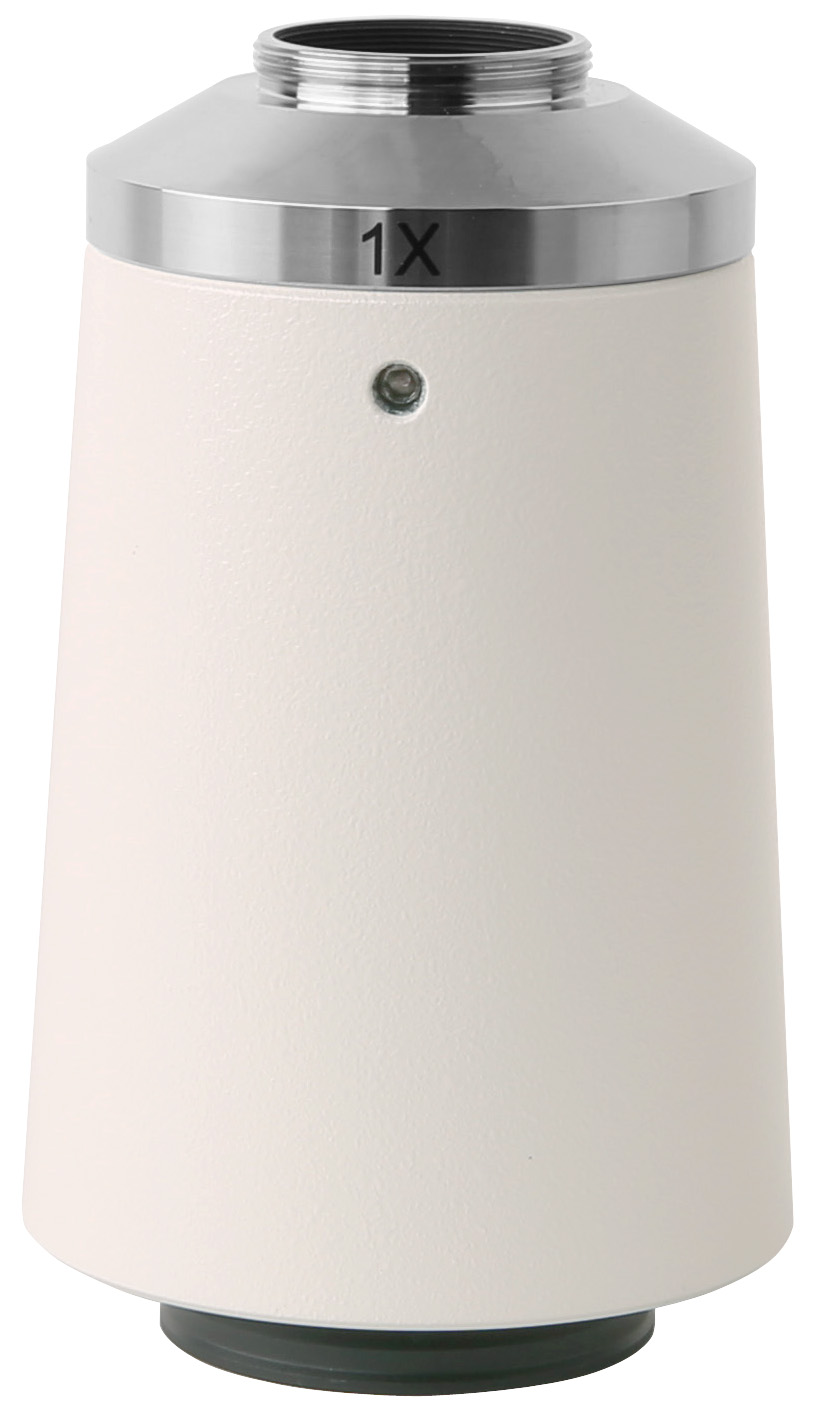

MQD42000
MBB42000
|
|
1.0X
|
1”, 2/3”
|
C-Mount
|

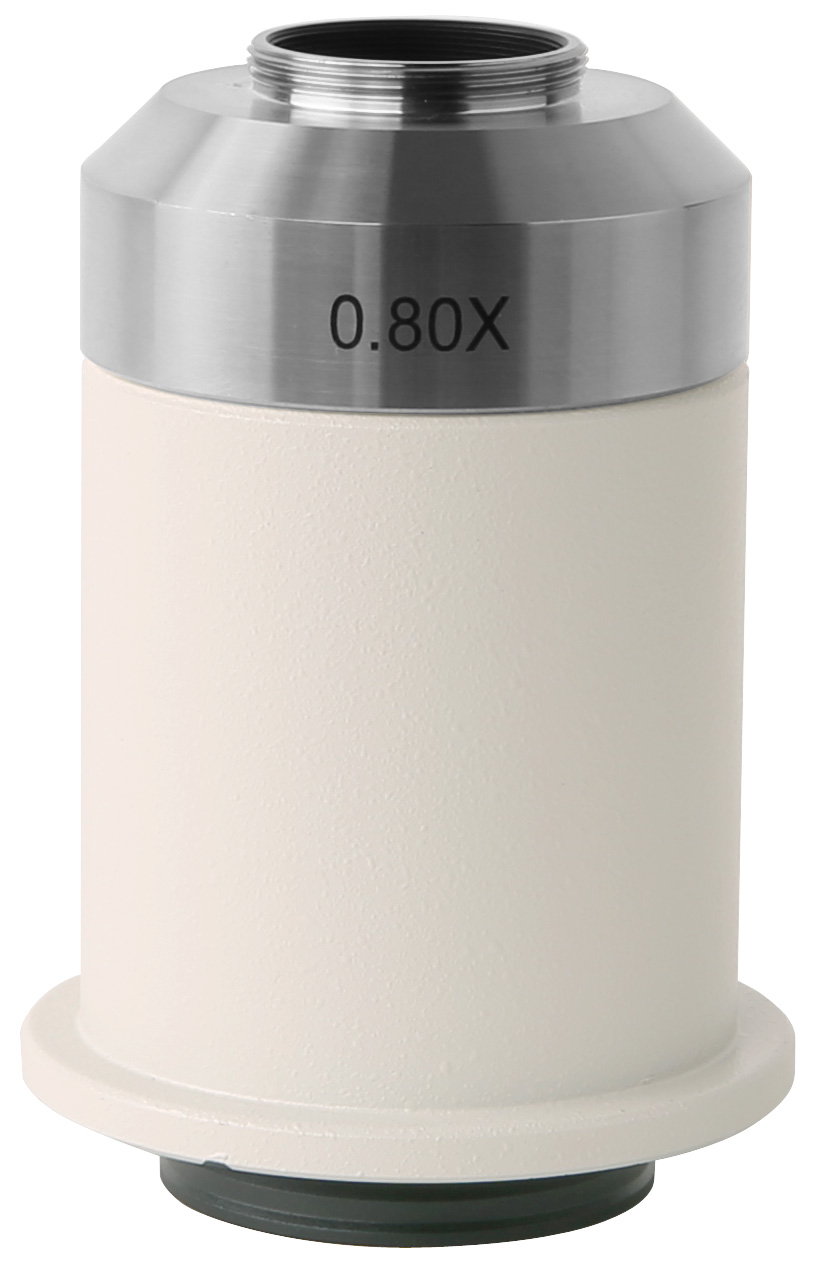

MQD42080
MBB42080
|
|
0.80X
|
1”,2/3”
|
C-Mount
|

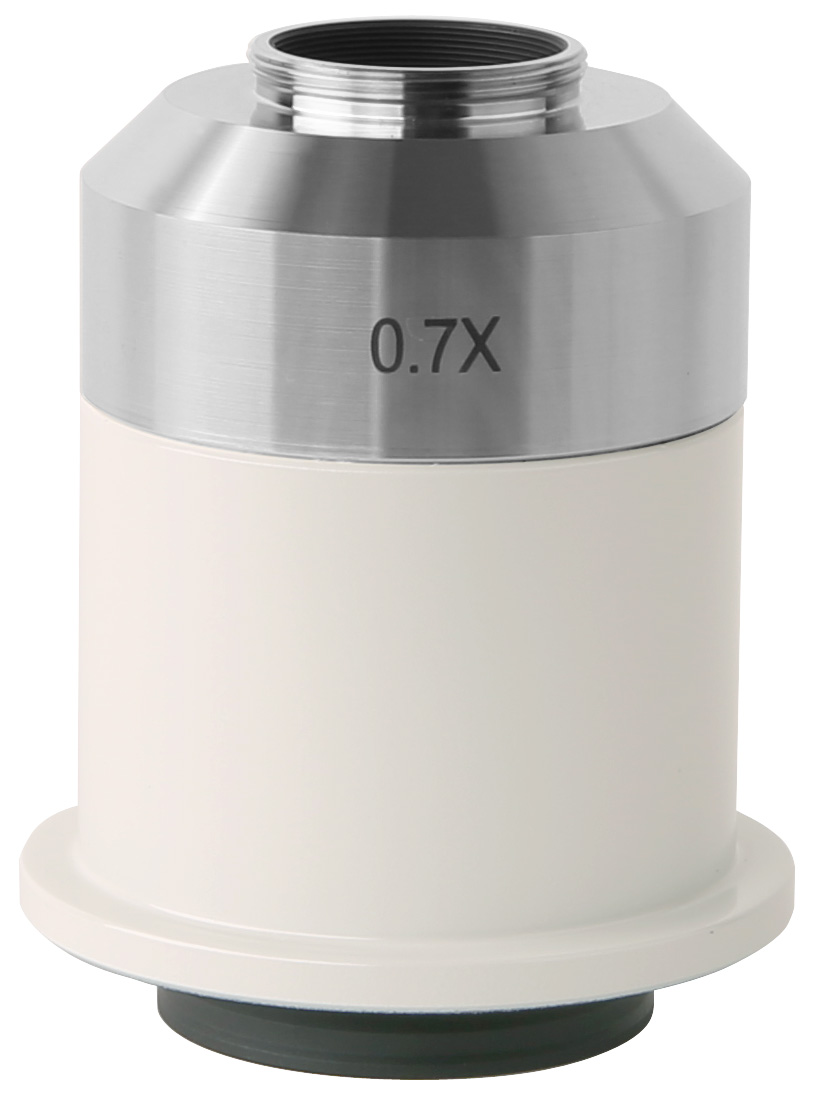

MQD42070
MBB42070
|
|
0.70X
|
2/3”,1/1.8”,1/2”
|
C-Mount
|

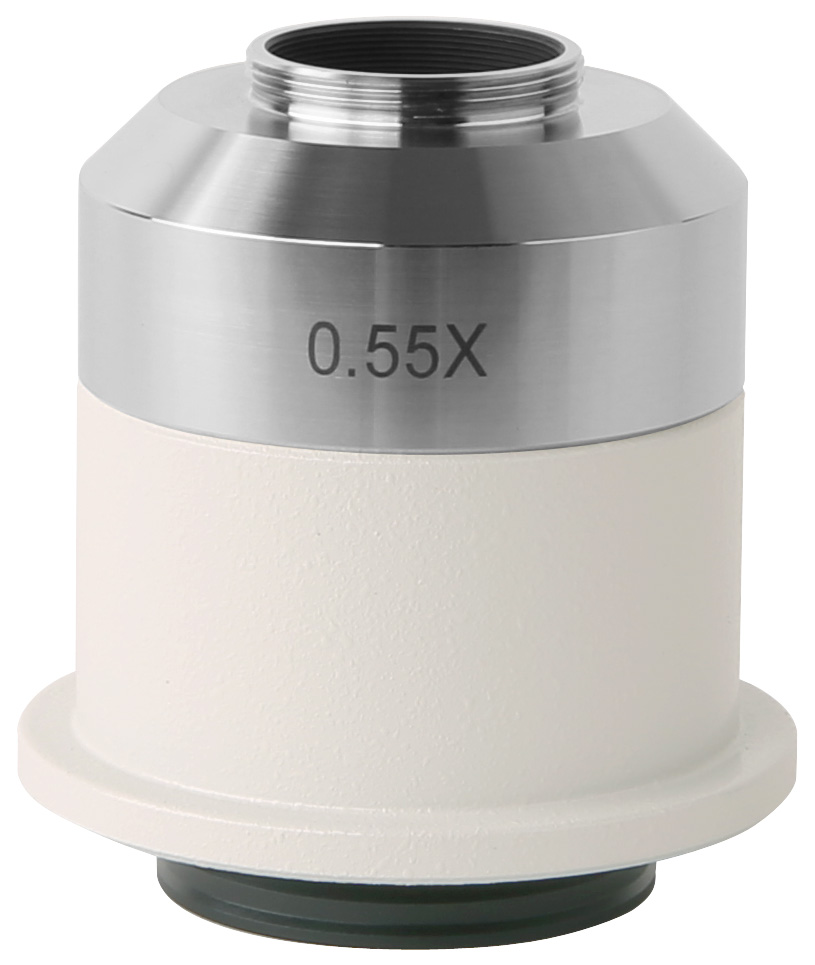

MQD42055
MBB42055
|
|
0.55X
|
1/1.8”,1/2”,1/2.5”
|
C-Mount
|

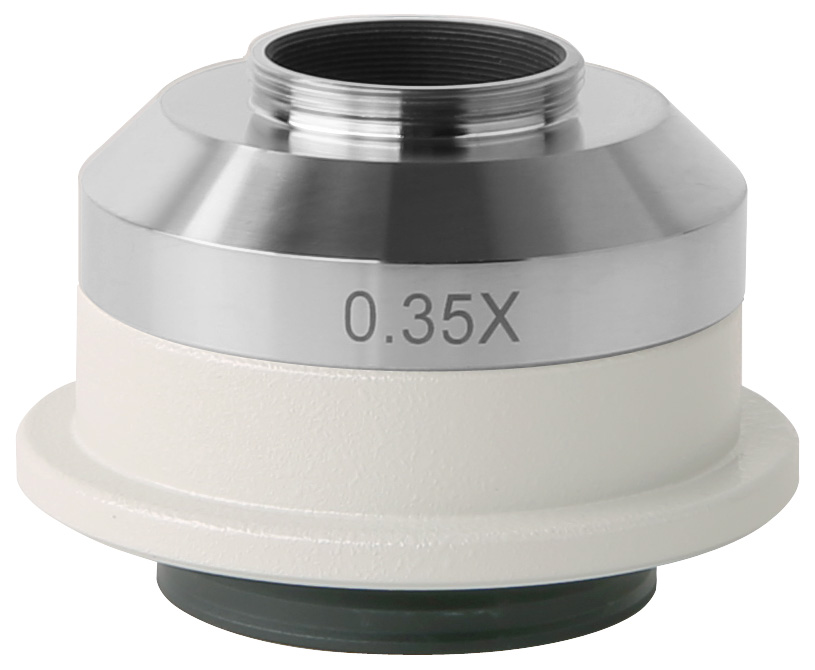

MQD42035
MBB42035
|
|
0.35X
|
1/3”,1/4”，1/5”
|
C-Mount
|
Supported Microscope
|
Specially designed for NIKON E100,E200,50i,55i,80i,90i, Ni series, Ti Series, SMZ800,SMZ1000, SMZ15000 biology microscopes and industrial microscopes
|
Note:Please specify your brand name, AMZ Optics engineers will help choose the right adaptor magnification according to the camera sensor size
|
|
