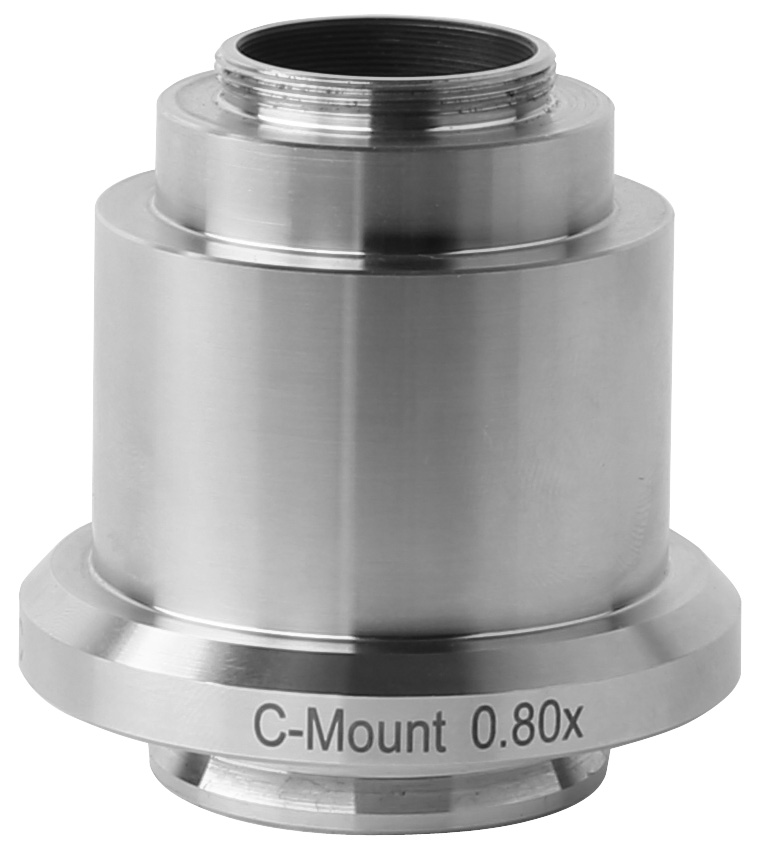

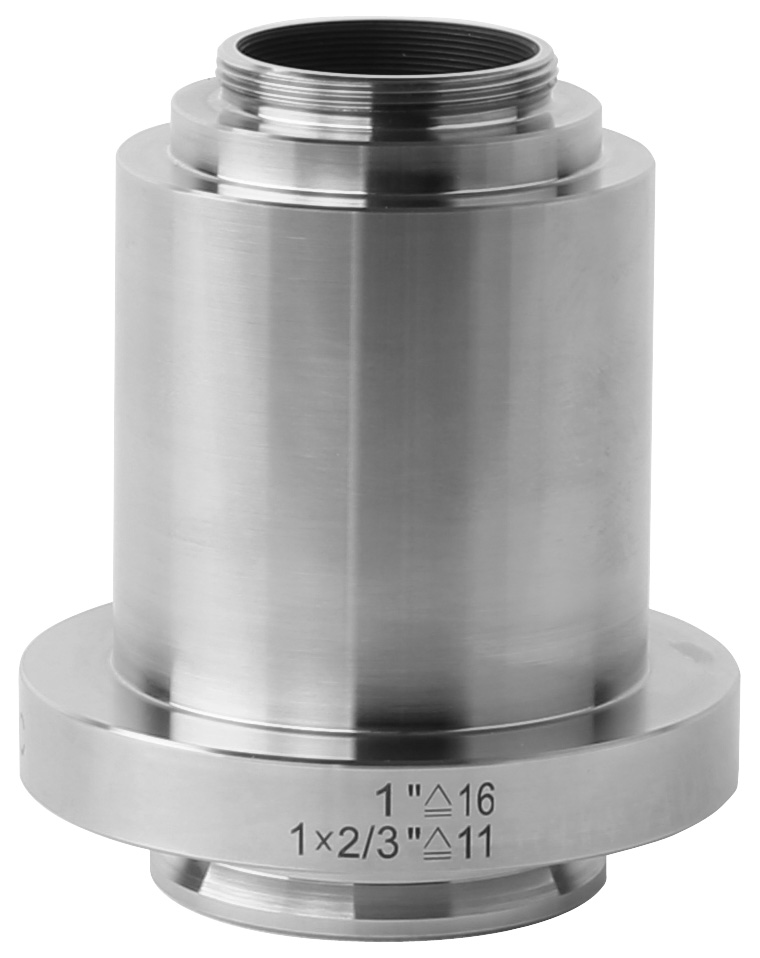

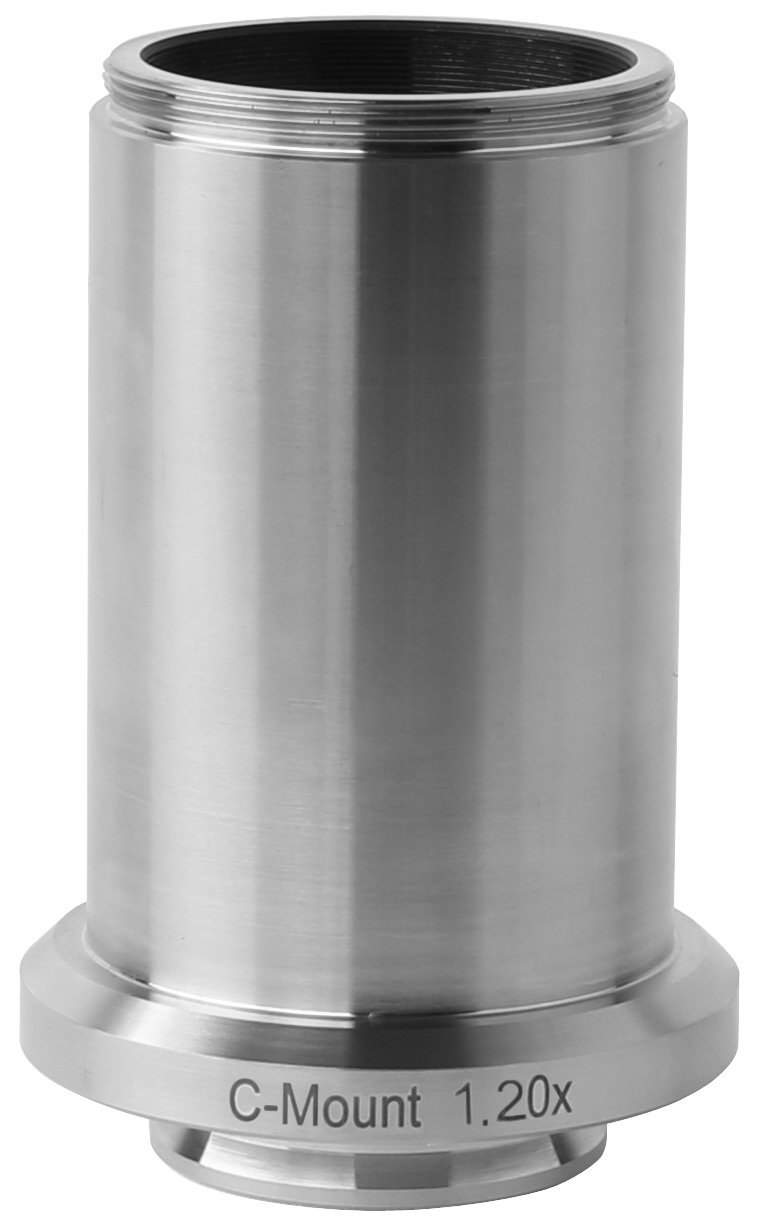

LEICA Phototube to C/T2/M52 Mount Adaptor （LEICA TV Adapter）

● Convert the LEICA trinocular microscope phototube/head/port (have standard 34.4 mm,1.35 inch inner diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch), T2 mount type(M42x0.75 mm metric thread) or M52 mount type(M52x0.75mm metric thread);
● With different built-in reduction lens (2.25X, 1.5X,1.2X,1X, 0.8X,0.63X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 2.7”, 1.8”, 4/3”, 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);
● Can be installed in UIS trinocular tube such as specially designed for LEICA DM series biology microscopes and industrial microscopes;
● Build of material stainless steel;
● Telecentric optics with low light deficiency;
● Parfocal with different microscope objective lenses;
● Diffraction limited MTF;
● Aperture totally coupled with LEICA CFI microscope objective exit pupil;
