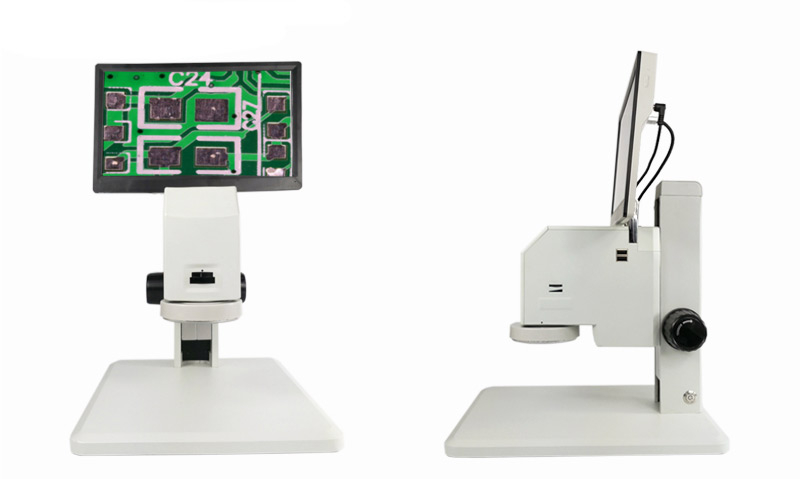

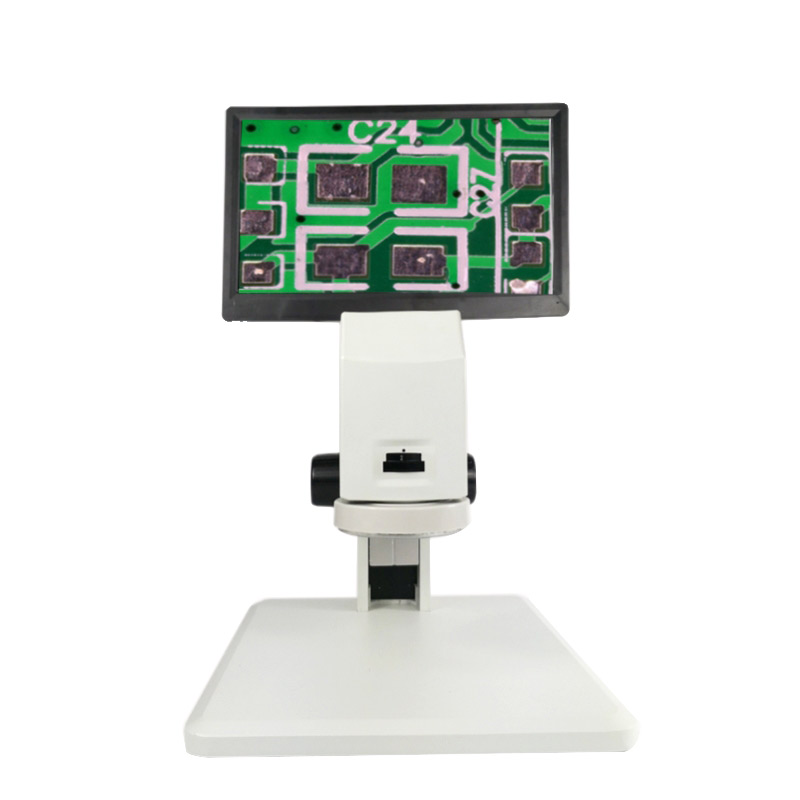

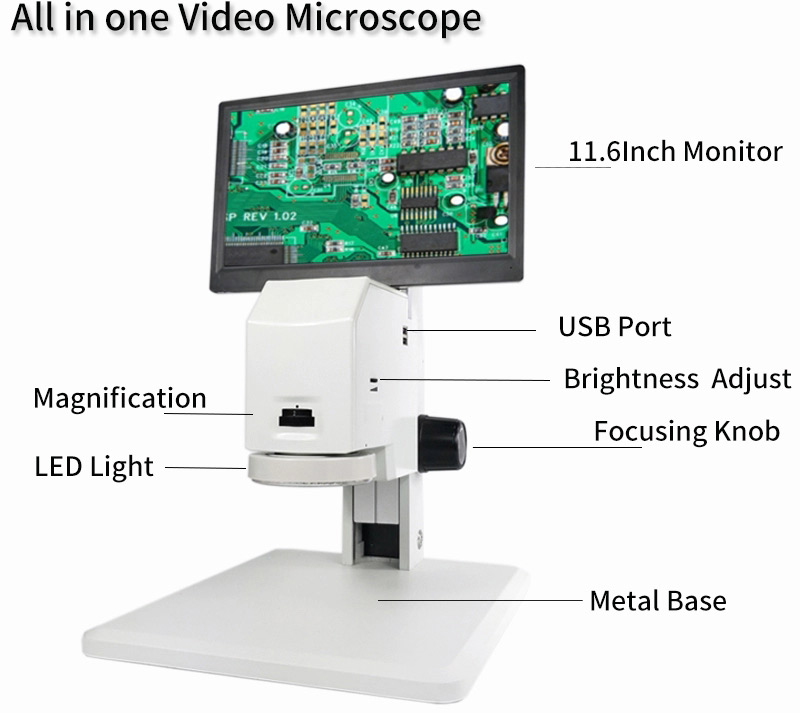

ZM-20LCD HD 1080P Digital Video Microscope With 11.6'' HD Screen
  • Specifications
  • Accessories
  • Products Catalog
  • ● Eyepiece: 0.35X
    ● Objective: 0.7X - 5X
    ● Objective Magnification Ratio: 1:6.5
    ● Click-stops at: 0.7,1, 1.5, 2, 2.5, 3, 4, 5x positions
    ● Working distance: 100mm
    ● Stand Type: table stand with track
    ● Base dimensions 320mm x 260mm x 20mm
    ● Column dimensions height: 299mm
    ● Depth: 54mm
    ● Illuminator: 144 LED ring light
    ● Power: 110-240VAC, 50/60Hz

    Camera:
    ● Sensor: Sony IMX307 (color)
    ● Sensor type: CMOS
    ● Sensor size: 1/2.8"
    ● Active pixels: 2M (1920 x 1080)
    ● Pixel size: 2.9µm x 2.9µm
    ● Active sensor area: 5.57mm x 3.13mm
    ● Shutter: electronic rolling shutter

    11.6'' inch LCD screen:
    ● LCD screen size: 11.6"
    ● Monitor magnification: 46X
    ● Displayed magnification: 11.3X-72.5X
    ● Native resolution: 1920 x 1080
    ● Aspect ratio: 16:9
    ● Brightness: 220 nits


    Packing list:
    1x Microscope 0.7-5x
    1x 11.6 inch LCD Screen
    1x Mouse
    1x Power adapter


    Optical parameters:

    Eyepiece
    Auxiliary Lens
    Standard 1X
    0.3X
    0.5X
    0.75X
    2X
    Working Distance100mm
    Working Distance287mm
    Working Distance165mm
    Working Distance117mm
    Working Distance30mm
    Magnification
    view (mm)
    Magnification
    view (mm)
    Magnification
    view (mm)
    Magnification
    view (mm)
    Magnification
    view (mm)
    0.35X
    12X
    22.5-12.8
    3.6X
    73-43.7
    6X
    51-29.1
    9X
    30-17
    24X
    11.1-6.2
    77X 3.8-2
    23.2X 11.9-5.4
    38.7X
    7.7-4.1
    58X
    4.8-2.9
    154.7X
    1.9-1
    0.5X
    17.2X
    16-9
    5.2X
    52-30
    8.6X
    36-20
    12.9X 21.3-11.7
    34.4X
    8-4.5
    110.5X 2.3-1.3
    33.1X 8.2-3.7
    55.2X 5.3-2.8
    82.9X
    3.3-2
    221X
    1.5-0.7
