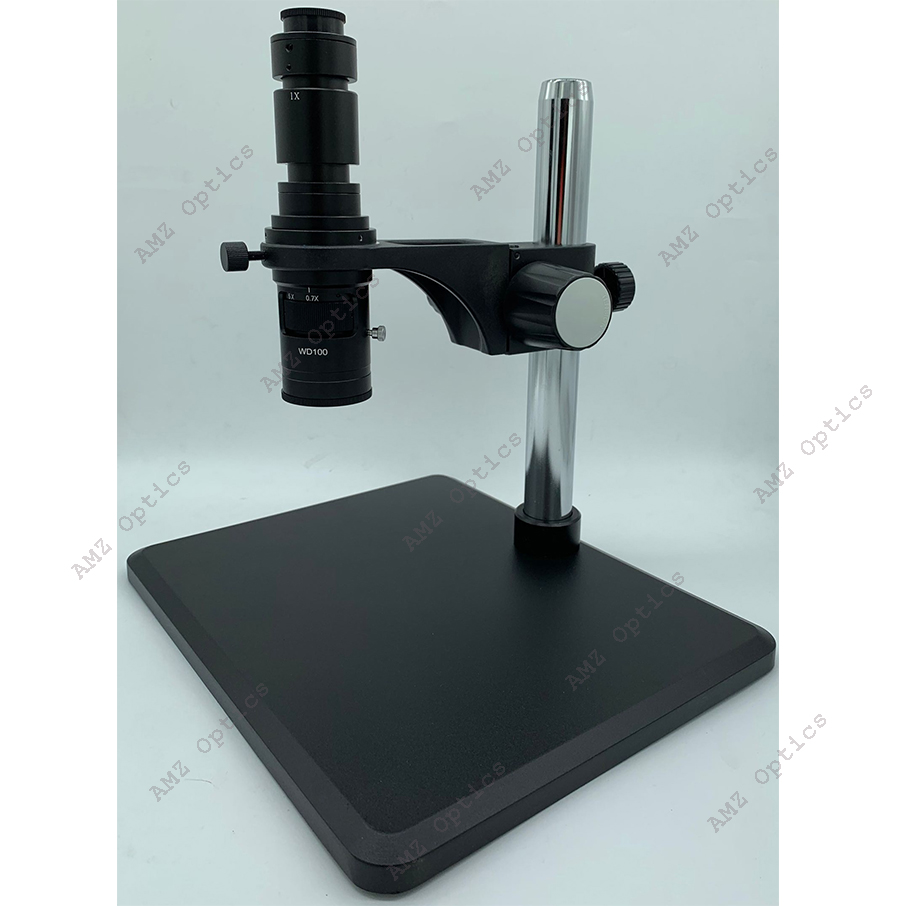

ZML50-B3 0.7X-5X Video Zoom Microscope On Post & Track Stand
  • Specifications
  • Accessories
  • Products Catalog
  • Video inspection microscope systems allow the user to view small parts and circuit boards on a monitor, providing larger images that reduce eye fatigue. These systems are perfect for quality control areas where a number of parts need examination throughout the day.

    For details regarding any of our featured inspection microscopes, contact us. You can also request a quote today.

    - Magnification: Standard 7X---50X,Optional and auxiliary lenses can be extended to,Continuous doubling

    - Eyepiece: Standard 0.4X, IR Coating,Corrected the image effect of the field of view edge


    ● Zoom Ratio: 1:7
    ● Zoom objective: 0.7X-5X
    ● Eyepiece: 0.4X
    ● Working Distance: 100mm
    Base:
    ● Vertical post height: 240mm
    ● Vertical post diameter: φ32mm
    ● Microscope body holder: φ50mm
    ● Focus travel: 50mm
    ● Base size: 320x260x16mm
    ● Material: Metal


    Optical parameters:


    Eyepiece

    Standard
    (No auxiliary Lens)

    Auxiliary Lens

    0.3X

    0.5X

    0.75X

    1.5X

    2X

    Working Distance100mm


    Working Distance287mm

    Working Distance198mm

    Working Distance131mm

    Working Distance63mm

    Working Distance46mm

    Magnification

    view

    Magnification

    view

    Magnification

    view

    Magnification

    view

    Magnification

    view

    Magnification

    view

    0.4X

    0.28X

    18mm

    0.08X

    60mm

    0.14X

    36mm

    0.21X

    24mm

    0.42X

    12mm

    0.56X

    9mm

    2X

    2.8mm

    0.6X

    9.3mm

    1X

    5.6mm

    1.5X

    3.7mm

    3X

    1.9mm

    4X

    1.4mm

    1X

    0.7X

    10mm

    0.21X

    33.3mm

    0.35X

    20mm

    0.53X

    13.4mm

    1.05X

    6.7mm

    1.4X

    5mm

    5X

    1.5mm

    1.5X

    5mm

    2.5X

    3mm

    3.75X

    2mm

    7.5X

    1mm

    10X

    0.8mm
