AJX-8R
|
Eyepieces
|
Hight eyepoint plan eyepiece PL10X/25mm, Diopter adjustable
|
●●
|
Hight eyepoint plan eyepiece PL10X/25mm, Diopter adjustable, with reticle
|
|
Hight eyepoint plan eyepiece PL10X/26.5mm, Diopter adjustable
|
|
Hight eyepoint plan eyepiece PL10X/26.5mm, Diopter adjustable, with reticle
|
|
Head
|
30° inclination, upright image, Compensation Free Trinocular, interpupillary distance: 50-76mm, splitting ratio R:T=100 : 0 or 0 : 100
|
●
|
30° inclination, inverted image, Compensation Free Trinocular, interpupillary distance: 50-76mm, splitting ratio R:T=100:0 or 0:100 or 20: 80
|
|
5-35° tilt angle adjustable, Erect image, Compensation Free Trinocular, interpupillary distance: 50-76mm, splitting ratio R:T=100 : 0 or 0 : 100 or 50 : 50
|
|
Objective 1
|
B&D semi-aprochromatic metallurgical objective 5X / 0.15, WD=13.5mm
|
●
|
B&D semi-aprochromatic metallurgical objective 10X / 0.3, WD=9.00mm
|
●
|
B&D semi-aprochromati metallurgicalc objective 20X / 0.5, WD=2.50mm
|
|
LWD B&D semi-aprochromatic metallurgical objective 20X / 0.4,WD=8.50mm
|
●
|
B&D semi-aprochromati metallurgicalc objective 50X / 0.8, WD=1.00mm
|
|
B&D semi-aprochromati metallurgicalc objective 100X / 0.9, WD=1.00mm
|
|
Objective 2
|
LWD B&D semi-aprochromati metallurgicalc objective 50X / 0.55, WD=7.5mm
|
●
|
LWD B&D semi-aprochromati metallurgicalc objective 100X / 0.8, WD=2.1mm
|
|
Objective 3
|
Bright field semi-aprochromati metallurgicalc objective 5X / 0.15, WD=19.5mm
|
|
Bright field semi-aprochromati metallurgicalc objective 10X / 0.30, WD=10.9mm
|
|
Bright field semi-aprochromati metallurgicalc objective 20X / 0.50, WD=3.2mm
|
|
Bright field semi-aprochromati metallurgicalc objective 50X / 0.80, WD=1.20mm
|
|
Bright field semi-aprochromati metallurgicalc objective 100X / 0.9, WD=1.00mm
|
|
DIC
|
DIC Slider
|
|
Nosepiece
|
Bright & Dark field sextuple nosepiece ( with DIC slot )
|
●
|
Bright & Dark field quintuple nosepiece ( with DIC slot )
|
|
Brigh field sextuple nosepiece ( with DIC slot )
|
|
Brigh field Septuple nosepiece ( with DIC slot )
|
|
Focus
|
Coaxial Coarse and fine focusing adjustment, Coarse adjustment distance: 33mm, precision of fine adjustment: 0.001mm, with loosen and tight limit ring
|
●
|
Stage
|
8" three layers mechanical stage 525x330mm, moving range: 210X210mm, X-Ymoving hand wheel, with clutch handle right hand shank, can move quickly, glass work plate
|
●
|
6" three layers mechanical stage 455x240mm, moving range: 158X158mm, transmitted Light moving range: 158x158mm, reflected light moving range:100x100mm, X-Ymoving hand wheel, with clutch handle right hand shank, can move quickly, glass work plate
|
|
Condensor
|

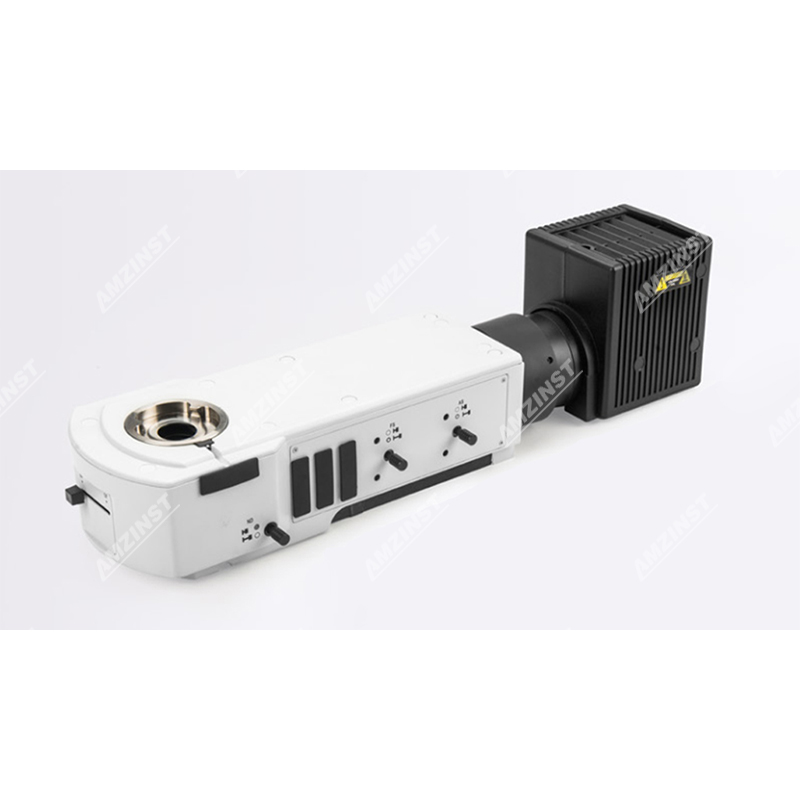

B&D reflect illumination, with Iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with switch device sIth bright and dark field
|
●
|
Refelcted Illumination
|
12V100W Halogen house, Pre-Centering, Digital Dimming Can Be With Bright Intensity Settings And Reset Function
|
●
|
12v100W Halogen lamp
|
●
|
Accessories
|
8 inch Rrotatable wok plate, apply to 6, 8 inch Wafer
|
|
IF Filter
|
Blue IF Filter, ( for reflection ): ≤ 480nm
|
|
Green IF Filter, ( for reflection ): 520-570nm
|
|
Red IF Filter, ( for reflection ): 630-750nm
|
|
Natural IF Filter, ( for reflection )
|
●
|
Polarizing kits
|
Polarizer ( for reflection )
|
●
|
360° Rrotatable analyzer
|
●
|
Fixed analyzer ( for reflection )
|
|
Camera adapter
Accessories
|
0.35X camera adapter, C-type interface, adjustable
|
|
0.5X camera adapter, C-type interface, adjustable
|
|
0.65X camera adapter, C-type interface, adjustable
|
|
1X camera adapter, C-type interface, adjustable
|
|
Micrometer Accessories
|
High-precision micrometer, grid value 0.01mm
|
|
