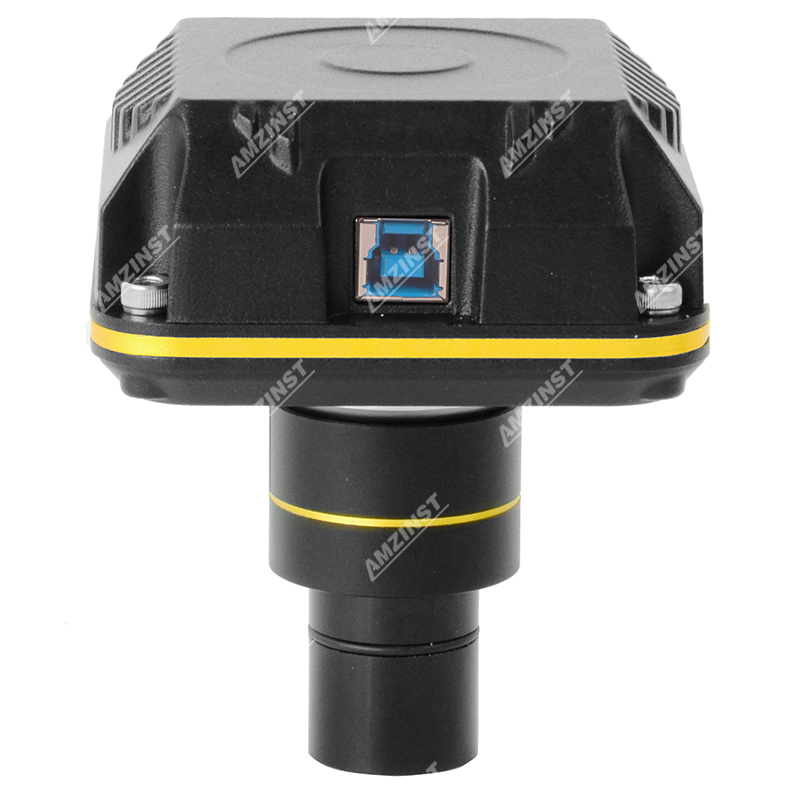

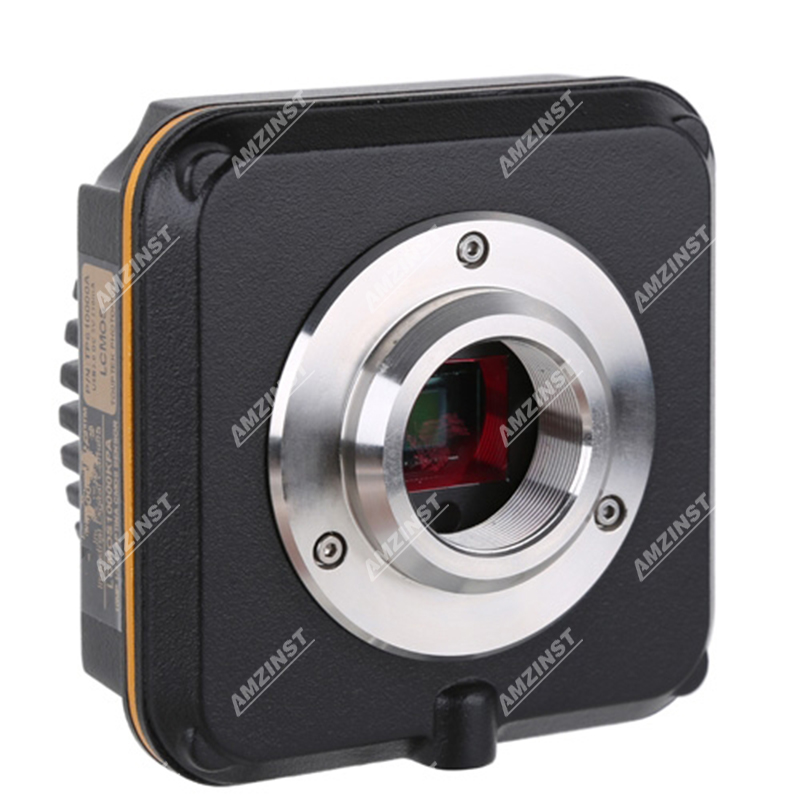

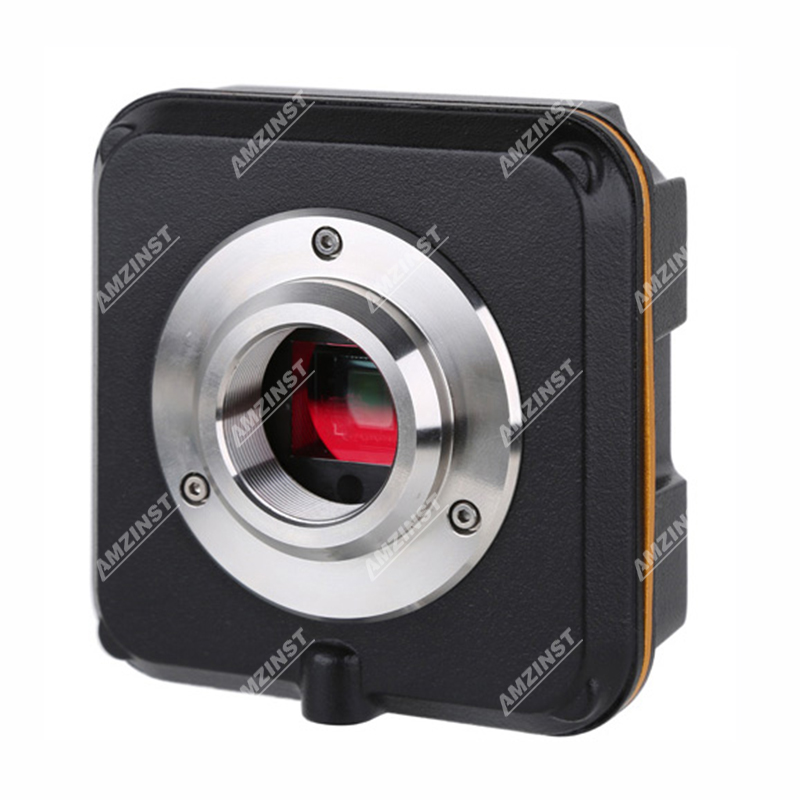

PC3-HP Series USB3.0 High-Performance Color CMOS C-Mount Microscope Camera
● Standard C-Mount camera with Aptina CMOS sensor; ● With hardware resolution among 1.2M to 14M; ● On-board memory for perfect synchronization，higher frame rate and stable performance; ● High performance cooling structure, ensures low image noise; ● USB3.0 5 Gbps interface ensuring high frame rate; ● Ultra-Fine color engine with perfect color reproduction capability; ● With advanced video & image processing application ToupView; ● Windows/Linux/macOS/Android multiple platform SDK;
  • Specifications
  • Accessories
  • Products Catalog
  • Order Code Sensor & Size(mm) Pixel(μm) G Sensitivity
    Dark Signal         		FPS/Resolution Binning Exposure
    PC3-HP14M 14M/MT9F002(C)
    1/2.3" (5.73x4.60)         		1.4x1.4 0.724v/lux-sec
    65.3dB
    35.5dB     		6.2@4096x3286
    20.8@2048x1644
    53.3@1024x822     		1x1,
    2x2,
    4x4     		0.1ms~2000ms
    PC3-HP12M 12M/IMX577(C)
    1/2.1“ (5.95x4.71)         		1.55x1.55 250mv with 1/30s
    0.25mv with 1/30s         		8.5@3840x3040
    49@1920x1516
    137@960x758         		1x1
    2x2
    4x4         		0.1ms~2000ms
    PC3-HP10M 10M/IMX577(C)
    1/2.3“ (5.68x4.26)     		1.55x1.55 250mv with 1/30s
    0.25mv with 1/30s     		8.5@3664x2748
    49@1832x1374
    137@912x686     		1x1,
    2x2,
    4x4     		0.1ms~2000ms
    PC3-HP8.5M 8.5M/Special(C)
    1/2.4“(5.16x3.95)     		1.55x1.55 250mv with 1/30s
    0.25mv with 1/30s     		10@3328x2548
    56@1664x1272     		1x1,
    2x2
    		 0.1ms~2000ms
    PC3-HP5.1M 5.1M/AR0521(C)
    1/2.5“ (5.70x4.28)
    		 2.2x2.2 18.8ke-/lux
    73dB
    40dB     		15.5@2592x1944
    49.5@1296x972
    97.5@648x486     		1x1,
    2x2,
    4x4     		0.05ms~2000ms
    PC3-HP3.1M 3.1M/AR0330(C)
    1/3“ (4.51x3.37)     		2.2x2.2 1.9v/lux-sec
    100dB
    39dB     		27.3@2048x1534
    53.3@1024x770     		1x1,
    2x2     		0.1ms~2000ms


    OTHER HARDWARE CONFIGURATION

    Spectral Range 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used
    White balance ROI White Balance/ Manual Temp-Tint Adjustment
    Color Rendering Technique Ultra Fine Color Engine
    Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
    Recording System Still Picture and Movie
    Cooling System* Natural


    OPERATING ENVIRONMENT

    Operating Temperature -10℃~ 50℃
    Storage Temperature -20℃~ 60℃
    Operating Humidity 30~80%RH
    Storage Humidity 10~60%RH
    Power Supply DC 5V over PC USB Port


    SOFTWARE ENVIRONMENT

    Operating System Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit)
    OS X (Mac OS X), Linux
    PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
    Memory: 2GB or More
    USB port: USB2.0 High-speed Port
    Display: 17" or Larger
    CD-ROM
