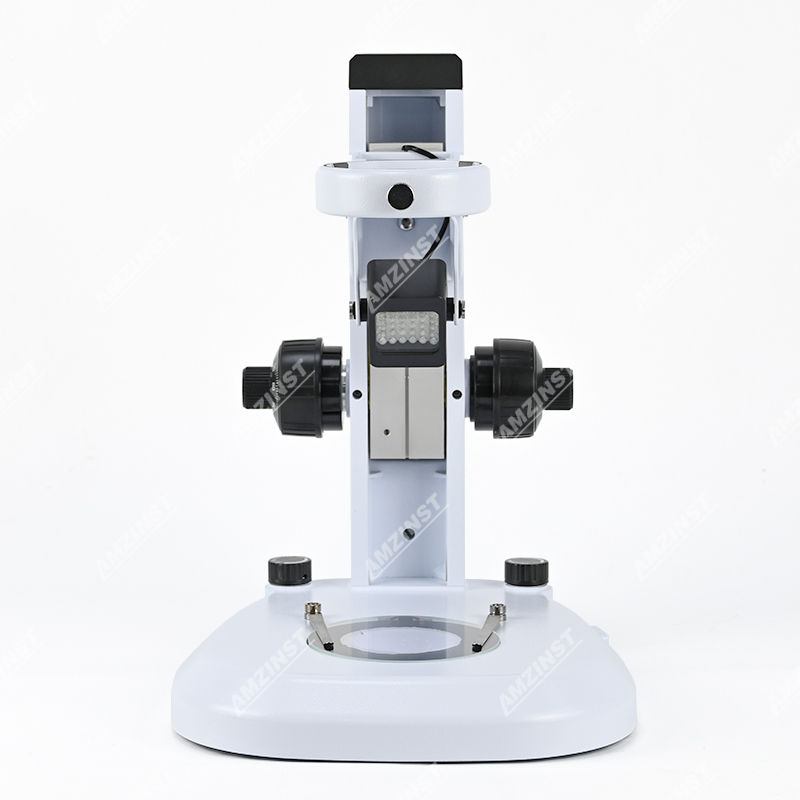

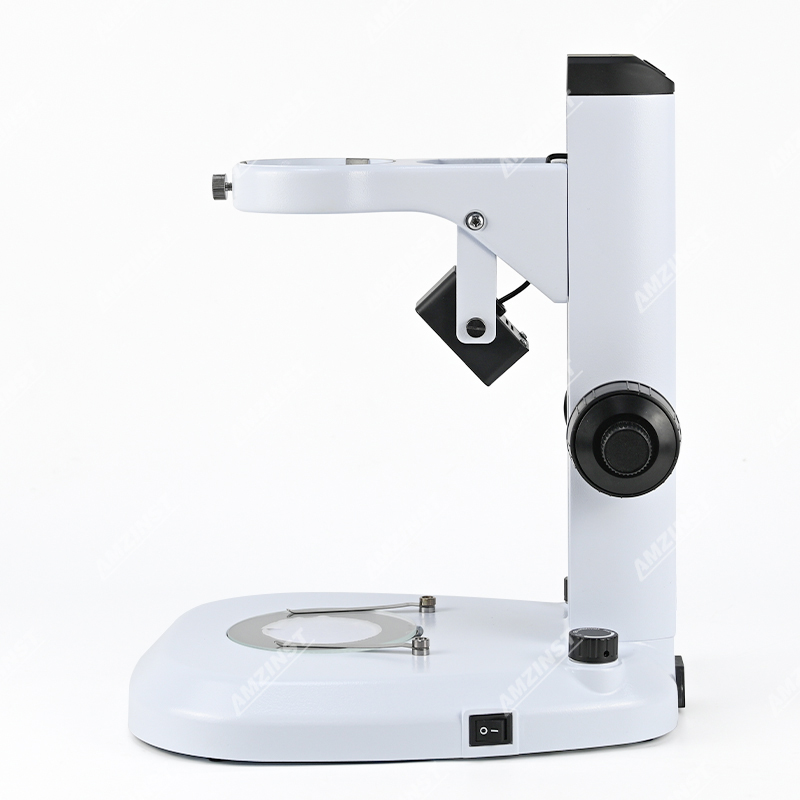

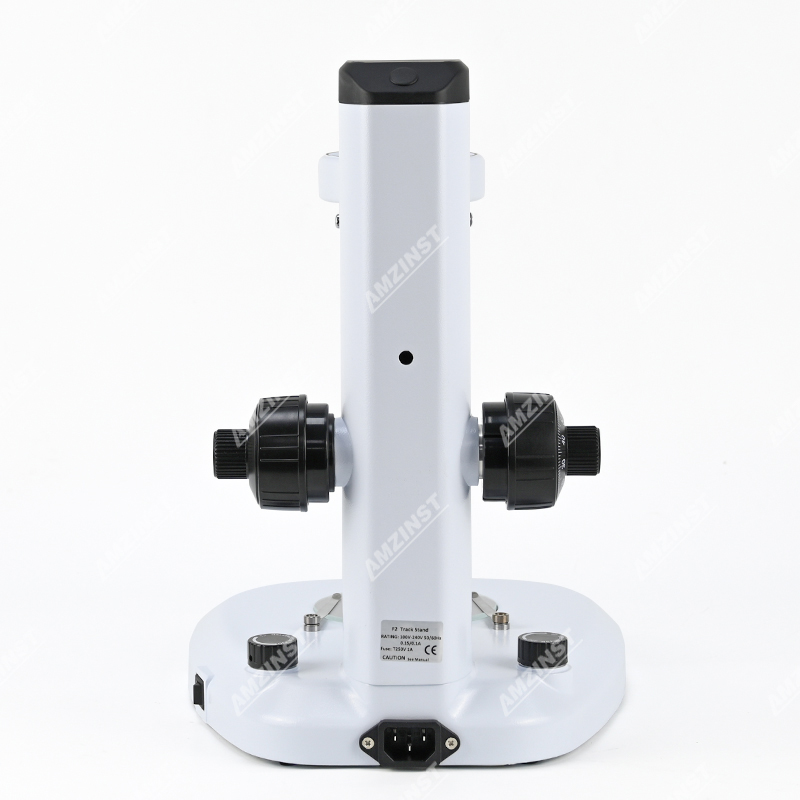

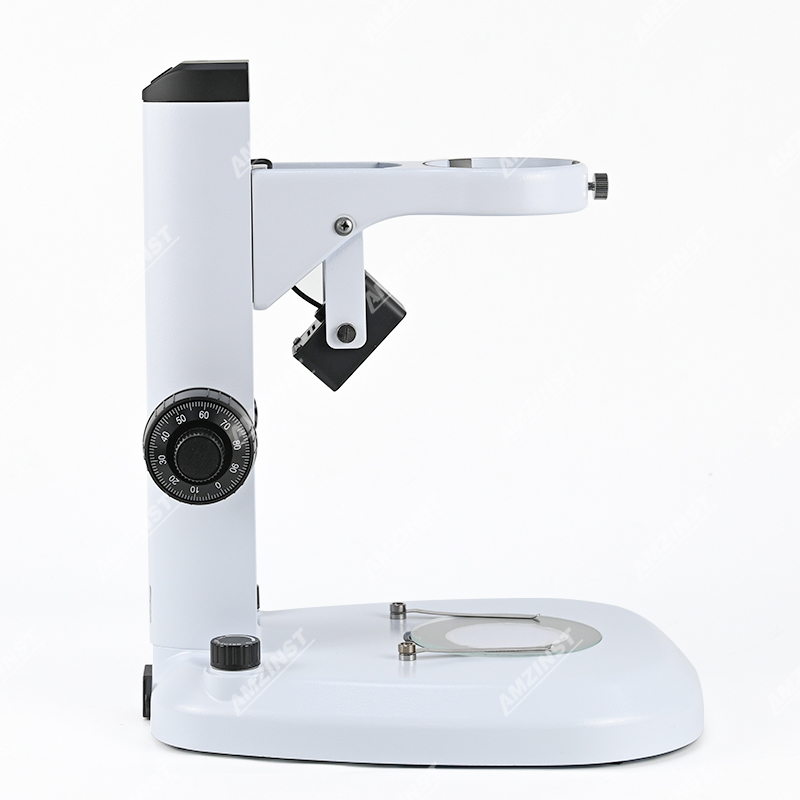

F2 Microscope Track Stand, 76mm Fine Focus, Top And Bottom LED Light (Dimmable)
  • Specifications
  • Accessories
  • Products Catalog
  • ● Vertical arm height: 280mm
    ● Microscope body holder: φ76mm
    ● Foucs distance: 102mm
    ● Coarse foucs distance per rotation: 40mm
    ● Fine foucs distance per rotation: 1.5mm
    ● Fine foucs distance Minmum scale: 150μm
    ● Light sources: 3W LED transmitted and reflected illuminators
    ● Dimming: Upper and lower independent dimming
    ● Stage plate: φ100mm float glass and black white contrast plate
    ● Input power: 100V-240V
    ● Base Size: 240x285x39mm
    ● Material: Metal
