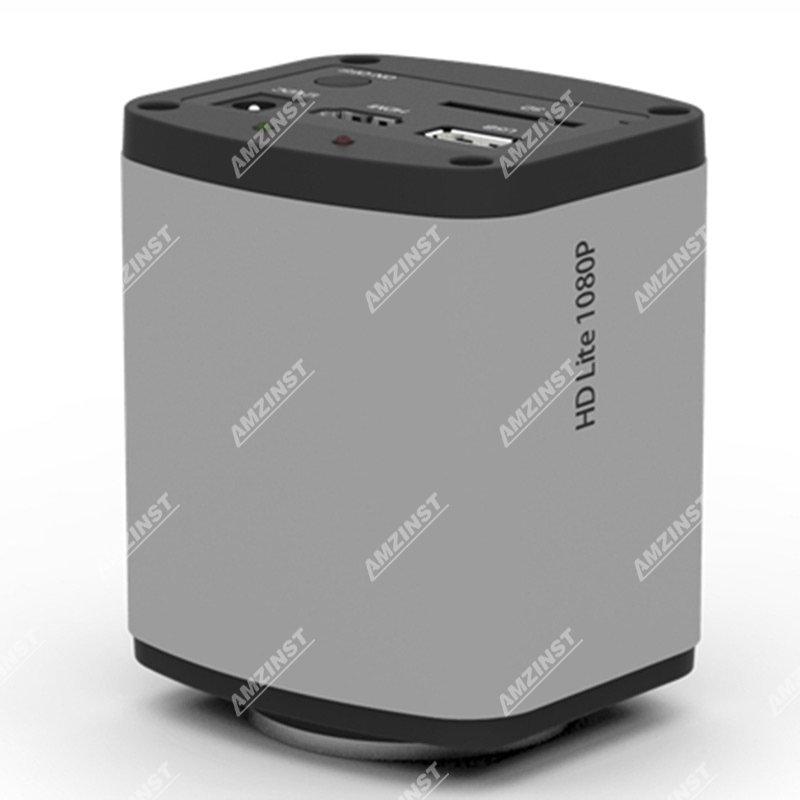

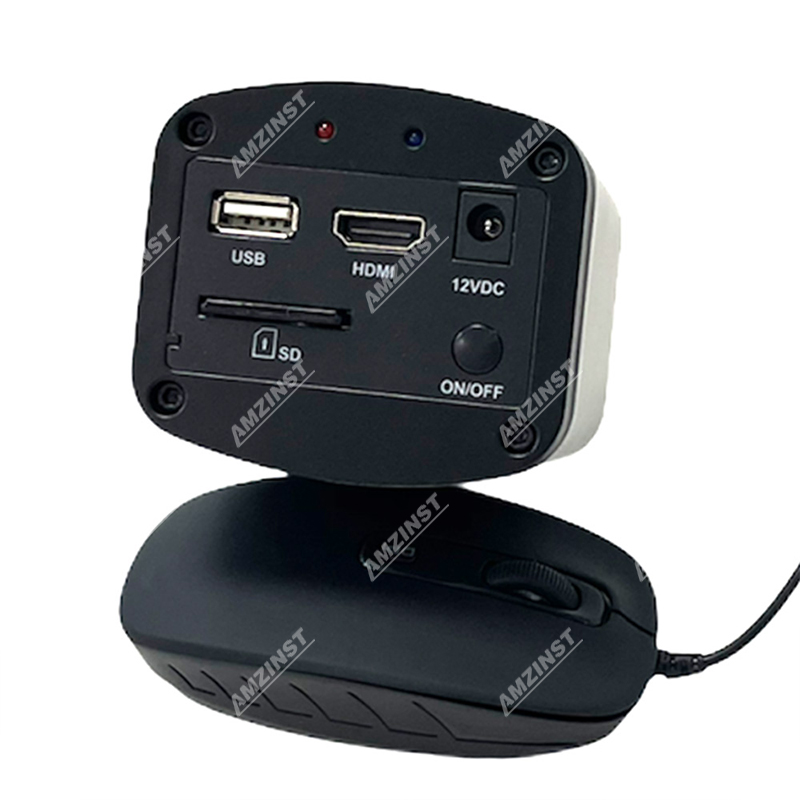

PCT-HD5M 5.0MP Microscope Camera HD Live Imaging For Scientific And Industrial Applications
  • Specifications

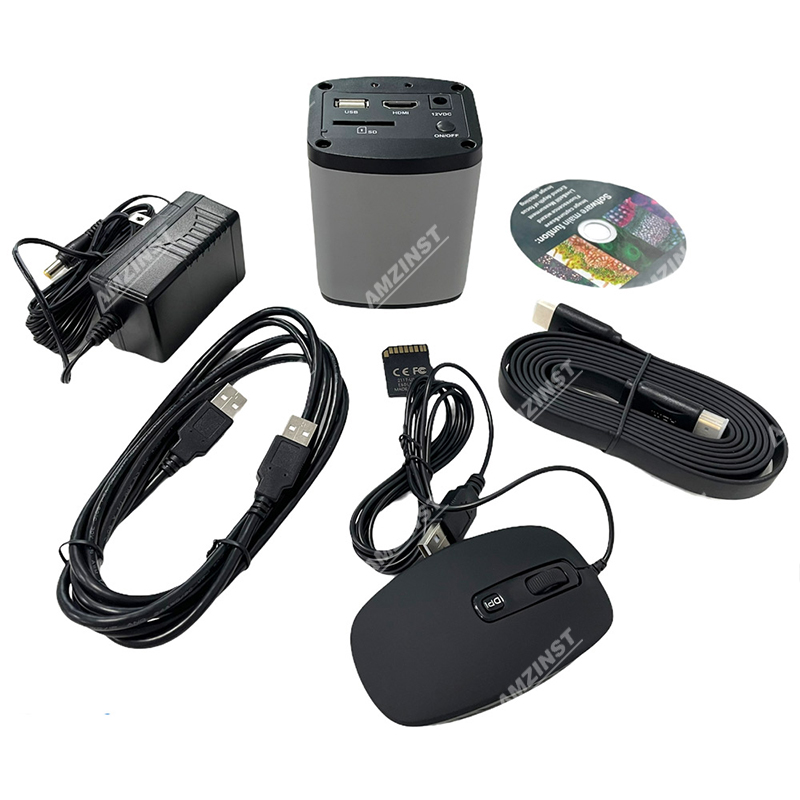

  • Accessories
  • Products Catalog
  • The HD Lite is a very streamlined HDMI CMOS Camera, which is designed for fast image and video capture, built-in perfect color restoration algorithm, image acquisition, processing functions, no computer required, very easy to use.

    Features

    • HD Lite uses a new 5-megapixel HD image sensor. The detail is more clearly presented, providing for excellent image quality.
    • Color processing is capable of a new level of precision, matches the monitor image to the eyepiece view, and produces extremely-high color definition.
    • HD Lite automatically analyzes the acquired images and optimizes the white balance, exposure time, and saturation, to present perfect images. Whatever for bright field bio imaging or dark field birefringent crystal imaging, HD Lite delivers ideal images, barely needing any parameter adjustment.

    Specification

    Sensor Type
    CMOS
    Sensor Model ON MT9P001I12STC
    Color/Mono Color
    Array Diagonal 7.13mm
    Resolution 2MP, 2592(H)x1944(V)
    Pixel Size 2.2μm x 2.2μm
    Effective area 5.7mm x 4.3mm
    Shutter Mode Rolling
    Frame Rate 15fps@USB2.0, 15fps@HDMI
    Exposure Time 1ms-2s
    SD Format FAT32
    Color Temperature 1800-10000K
    Software HDMI: Cloud 1.0 Ver; USB: Mosaic V2
    HDMI Key Settings Preview: 1920x1080; Capture: 2592x1944; Video recording: 15fps@1920x1080
    Picture Format HDMI: JPG/TIF; USB: TIFF/JPG/PNG/DICOM
    Multiple Cameras Supports 4 Cameras Simultaneously in SDK
    Optical Interface Standard C Mount
    Power 2.4W
    Dimensions 90.7mm x 74mm x 67.2mm
    Weight 265g
    Data Interface HDMI, USB2.0, SD card
    Operating Environment Temperature: -10~45℃; Humidity: 10%~85%
    Operating System Windows 7/10 (32 Bit/64 Bit)/Mac
    PC configuration CPU: Intel Core i5 or better(Quad or more Core); RAM: 8G or more
    Applications Stereo, Biological, Metallographic, Polarizing Microscopes
