The software includes numerous functions for image acquisition and image processing

• Image and video capture, time lapse
• Measurement function* (with live image): Labeling, distance, angle, surface area (polygon, circle, ellipsoid)
• Automatic dark frame processing for reduced noise
• Enhanced depth of field function when taking several images with different focus
• Image Stacking from video files
• Storage video and image
• HDR wide dynamic

Specification:

● Series: HDMI Industrial Camera
● Sensor size: 1/3"
● Effective pixel: Full HD
● Resolution: 1920*1080@30FPS

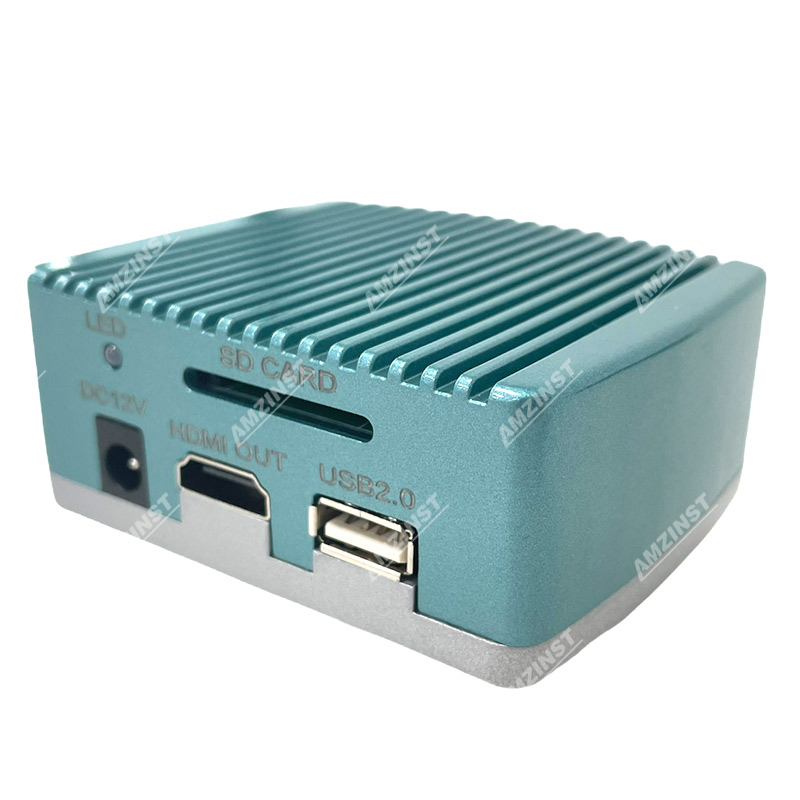

● Output: HDMI、USB、SD card
● Pixel size: 2.75*2.75 μm
● Power: DC-12V/1A
● Camera dimension: 73x82x32mm/0.3kg
● Camera body material: Aluminum

Features:
● Basic function: Brightness, Contrast, Saturation, White balance, Black-and-white switch, HDR wide dynamic
● UI interface: Easy mouse control
● Image adjustment: Exposure, Flicker restrain, Acutance, Gamma, Cb/ Crgain adjustment
● Camera function: digital amplification, mirroring, contrast, noise reduction, screen freeze. Cross-line can define color, line, hide and display
● Crosshair: small crosshair in the center, can adjust color, line size, hide or display
● Reticle: 4 sets of the reticle, can adjust the color, size, shift, and hide
● Grid line: 8 sets of grid lines, each set can be corresponding to one product

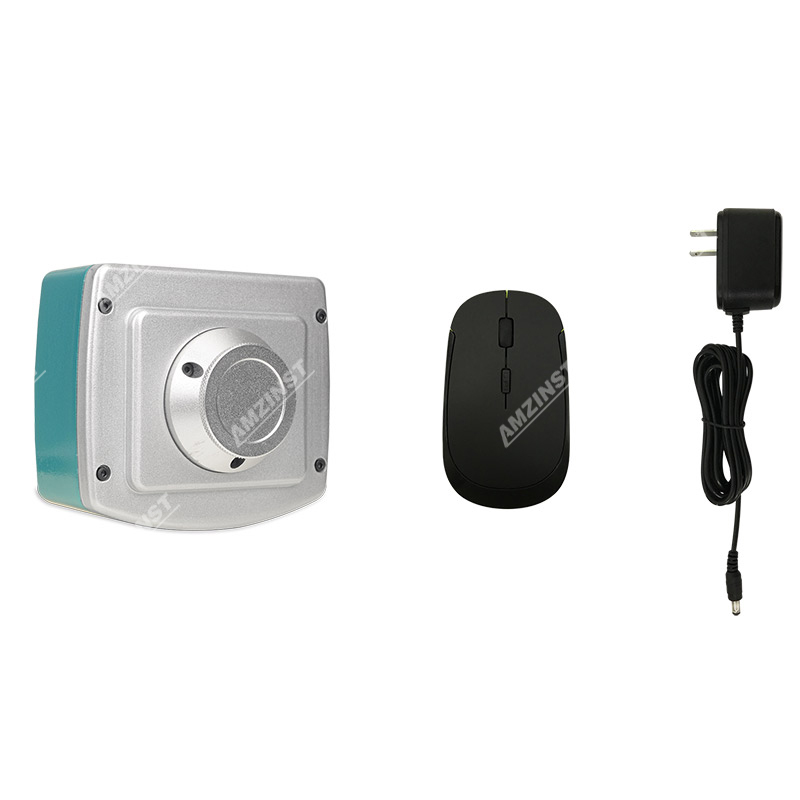

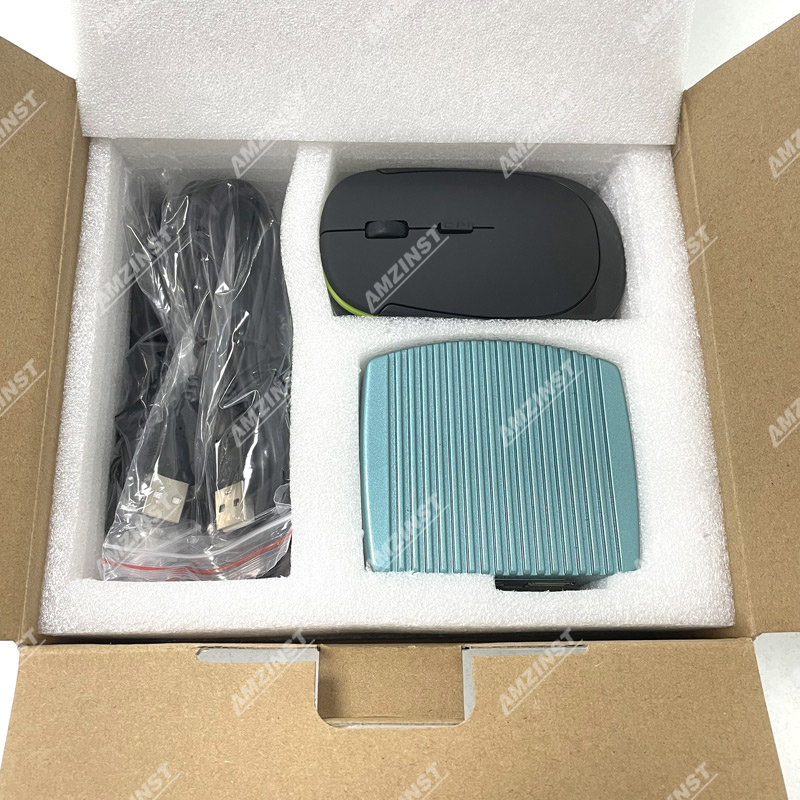

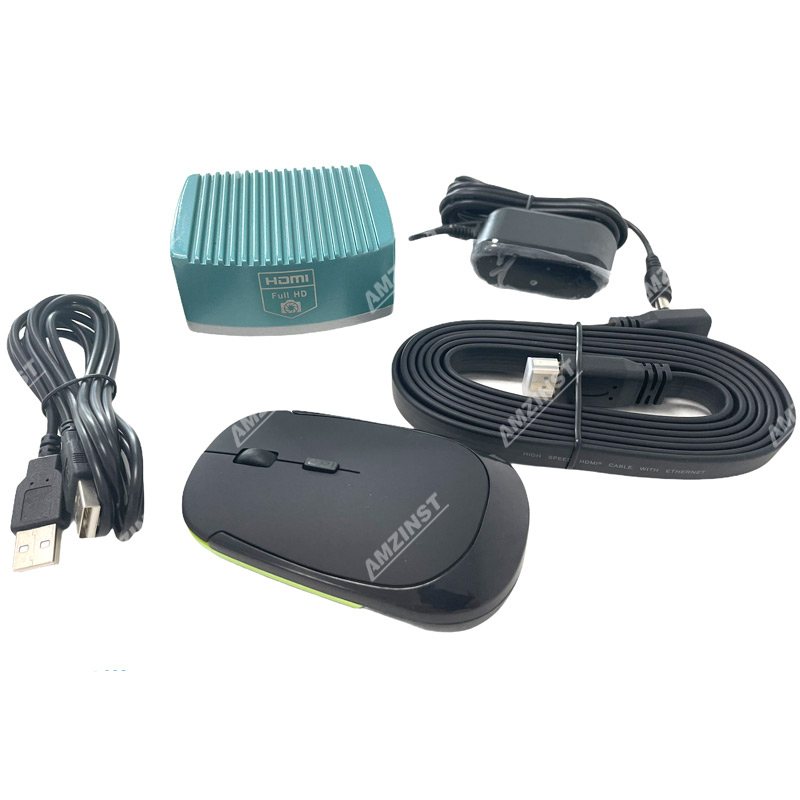

Packing list:
1x Camera
1x Bluetooth mouse
1x 8G memory card
1x 12V/1A Power adapter
1x USB Cable 2.2m
1x HDMI Cable 2m
