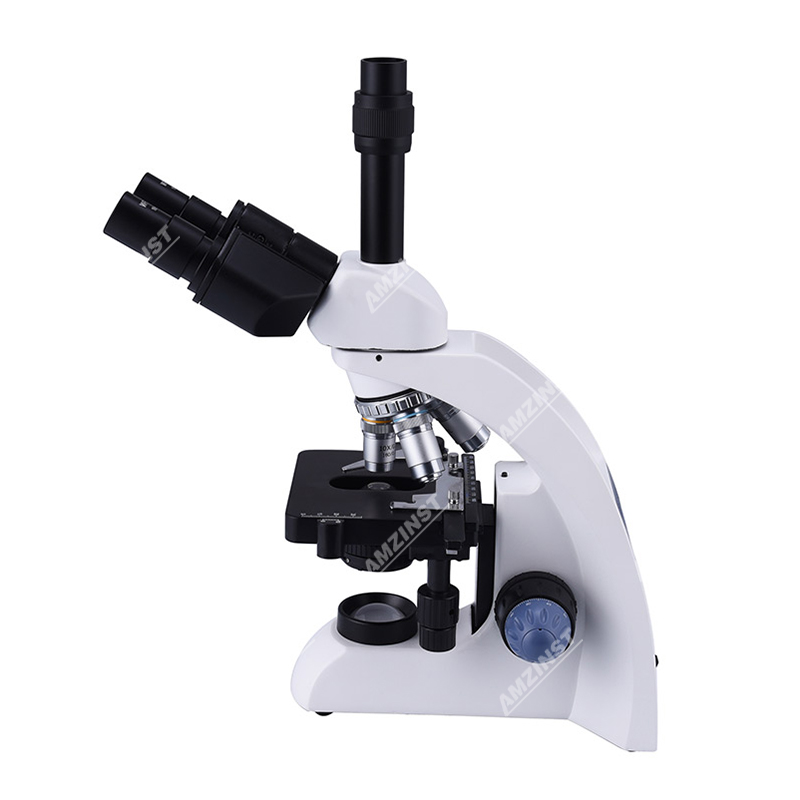

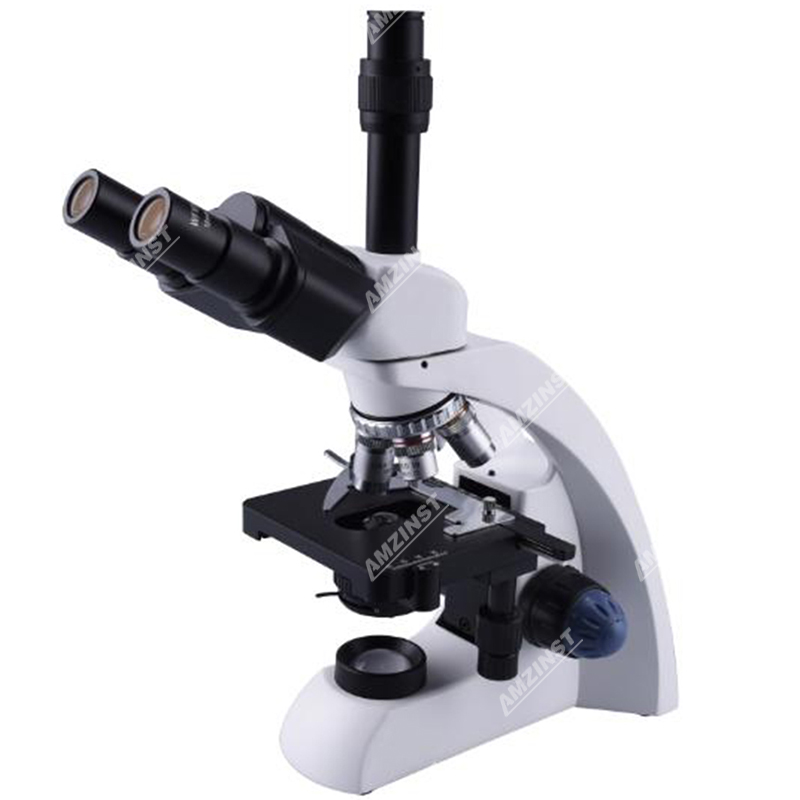

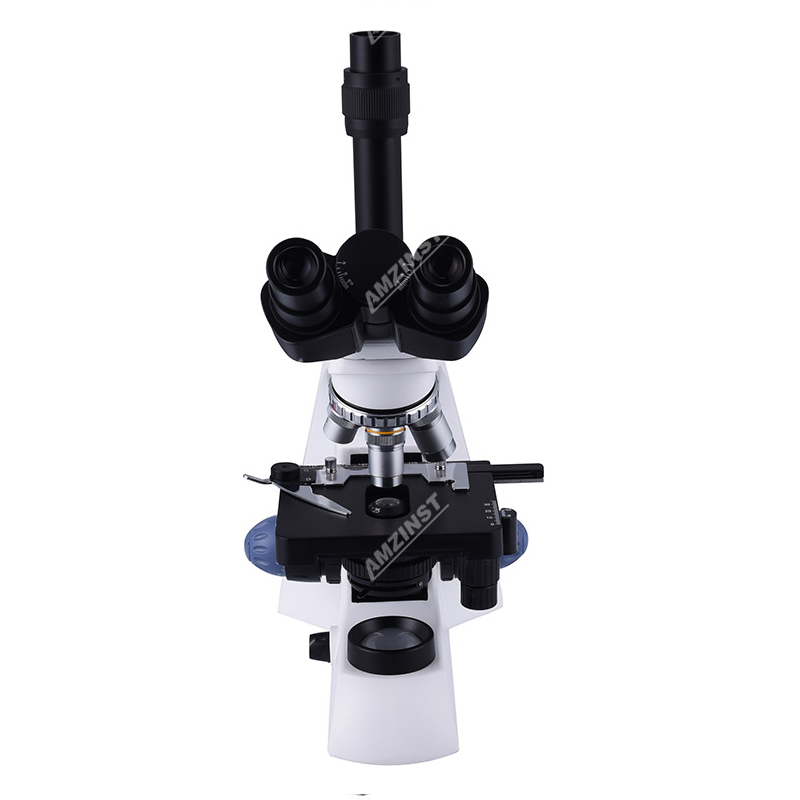

Microscope Specifications

Optical System	Infinite optical system
Viewing head	Seidentopf Trinocular Head, Inclined at 30°, 360°Rotatable
Eyepiece	WF10X/18mm
Objective	Finite 195 Series Achromatic Objectives 4X 10X 40Xs 100Xs(oil)
Nosepiece	Quadruple nosepiece
Condenser	Abbe condenser NA1.25 with diaphragm filter
Focusing system	Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 36mm
Stage	Double layer mechanical stage 110x125mm
Illumination	3W/LED adjustment

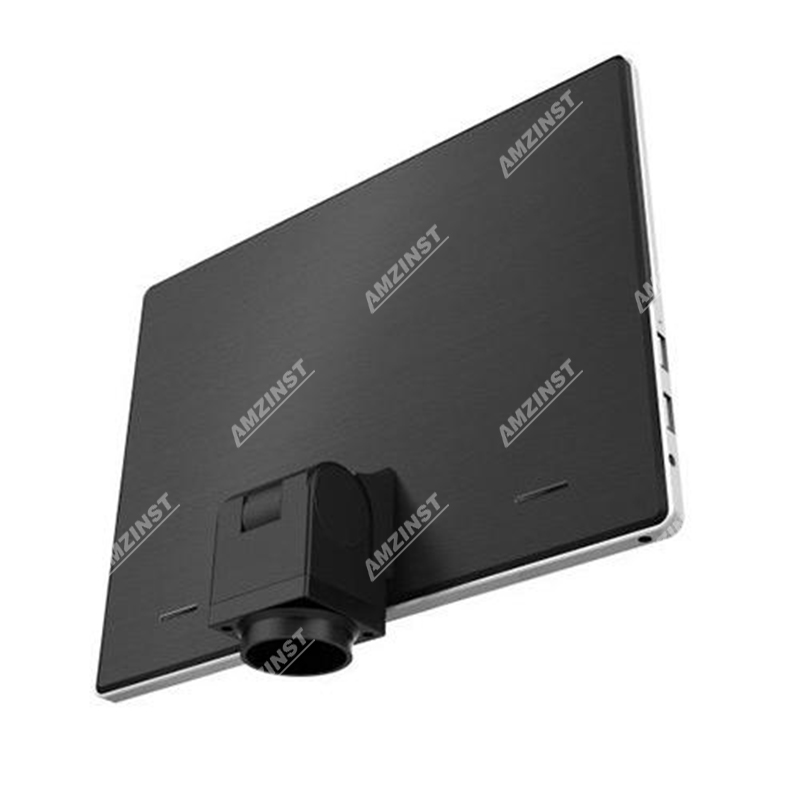

5.0MP LCD Touch Pad Screen Specifications

Series	Integrated display camera
Sensor size	1/2.5"
Effective pixels	5 million pixels
Resolution	2048x1536@15FPS
Screen resolution	2048x1536 retinal screen
Output	USB2.0, HDMI, TF card, WIFI
Output ports	1x HDMI Port; 1x USB 2.0 Port; 1x Mini USB 2.0 Port
Pixel size	2.2x2.2|ìm
Power	DC-12V/2A
UI	Easy mouse control, , Android5.1 operation system
Mark function	Point coordinates, reticle, coordinates, text annotation
Length measuring	Straight length, broken line length, curve line length, distance between parallel lines, point-line distance
Center distance of circles	Center distance of circles
Geometry measurement	Line length, radius setting circle, two points setting circle, three points setting circle, concentric circles
Geometry area	Polygon and square
Image capture	Support 16 million static image capture
Video record	Support 1080P video
Measuring tool	S-EYE
