AJX-40M Advanced Reflection and Transmitted Metallurgical Microscope
-- Infinity Color Corrected Optical System With Newly Upgraded Koehler Illumination System, offer Clear & Bright Micro-image Under Each Magnification.
-- Ergonomic Design, Steady System Structure, Easy Operation, Suitable For Various Working Environments.
-- Newly Designed Integrative Y-Shape Body, All Metal Diecasted Under High Pressure.
-- High stability, No Image Dithering Under High Magnification Observation, Ensures The Test Precision Of Multi-channel Fluorsecnce Diagnosis.
-- LWD Infinity Plan Achromatic Metallurgical Objectives 5x, 10x, 20x, 50x, 100x (optional)
-- Reflect & Transmit Light Source 5W LED Warm Color With Full Range Filters
|
|

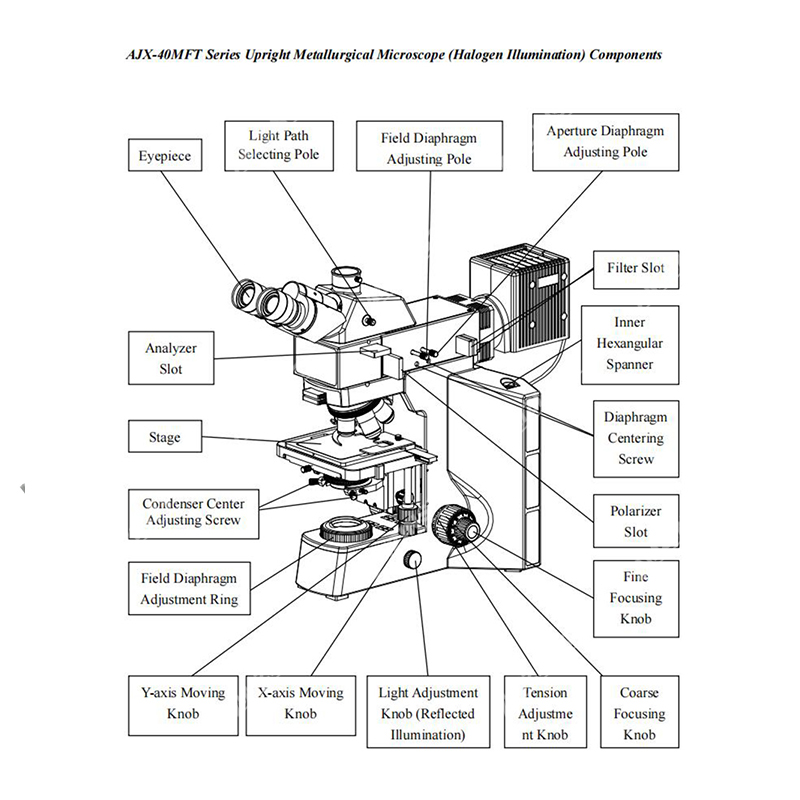

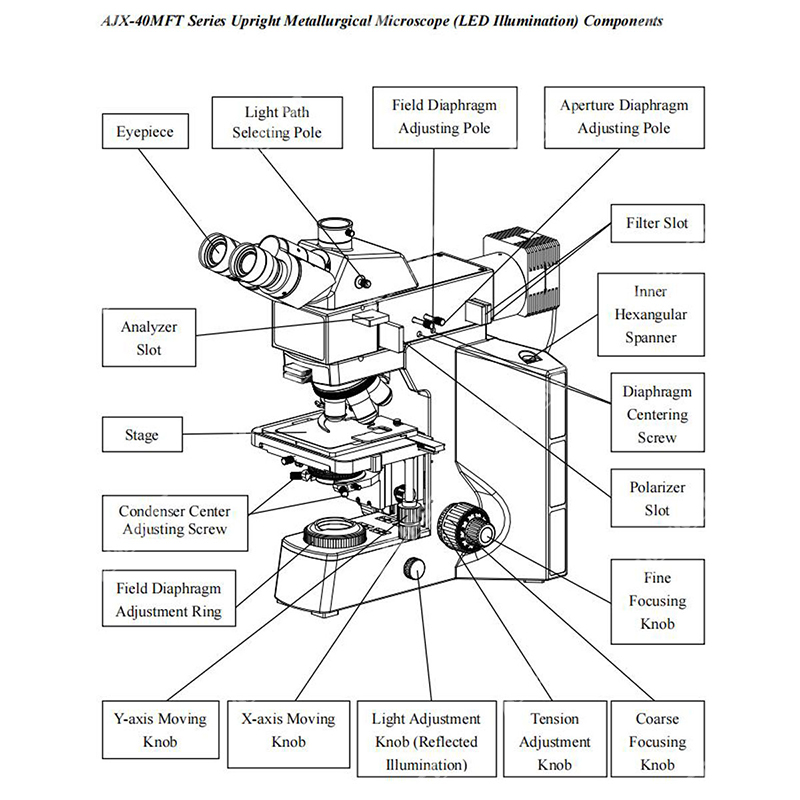

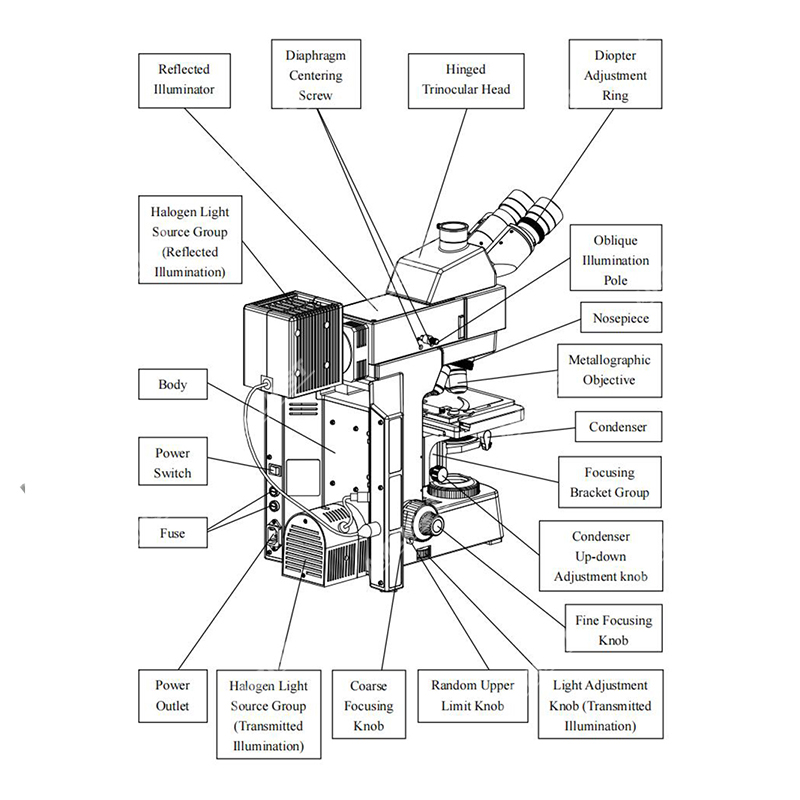

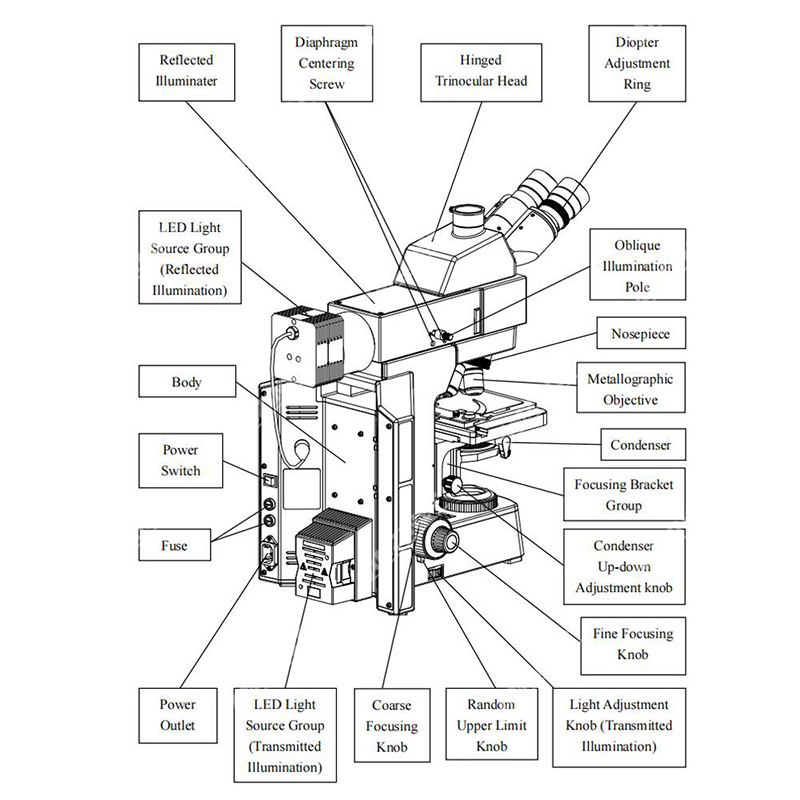

AJX-40MFB
|
Eyepieces
|
High Eye-point Wide Field Plan Eyepiece PL10X/22mm
|
●●
|
High Eye-point Wide Field Plan Eyepiece PL10X/22mm, with reticle
|
|
High Eye-point Wide Field Plan Eyepiece PL10X/22mm, Diopter adjustable
|
|
High Eye-point Wide Field Plan Eyepiece PL10X/22mm, Diopter adjustable, with reticle
|
|
High Eye-point Wide Field Plan Eyepiece PL15X/16mm
|
|
Head
|
Compensation Binocular Head 30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Diopter +/-5 Adjustable
|
●
|
Compensation Trinocular Head 30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Light spliting ratio: 100:0 or 50:50, Diopter +/-5 Adjustable
|
|
Objective
|
LWD Infinity plan achromatic metallographic objective 5X LMPL5X/ 0.15 WD=10.8mm
|
●
|
LWD Infinity plan achromatic metallographic objective 10X LMPL10X/ 0.3 WD=12.2mm
|
●
|
LWD Infinity plan achromatic metallographic objective 20X LMPL20X/ 0.45 WD=4mm
|
●
|
LWD Infinity plan achromatic metallographic objective 50X LMPL50X/ 0.55 WD=7.9mm
|
●
|
LWD Infinity plan achromatic metallographic objective 100X LMPL100X/ 0.80 WD=2.15mm
|
|
Infinity Semi-aprochromatic metallurgical objectivewith correction ring 50X/0.70, WD=2.3-2.9mm
|
|
Nosepiece
|
Back-Forward, 5 Holes Revolving Nosepiece, Inward
|
●
|
Stage
|
For Transmit & Reflect Light,
- Double Layer Mechanical Stage 175x145mm, Moving Range 76*42mm, X/Y Moving Coaxial Adjustment
- Coase Moving range:28mm; Max Sample height:28mm, Division:0.002mm
- with Tension adjustment loc,Top limit Kit
|
|
For Reflect Light,
- Double Layer Mechanical Stage 175x145mm, Moving Range 76*42mm, X/Y Moving Coaxial Adjustment with Metal Plate
- Coase Moving range:28mm; Max Sample height: 78mm, Division:0.002mm
|
●
|
Glass Plate (for Transmit & reflect light)
|
|
Metal work plate ( for reflect light)
|
●
|
Light Source
|
Reflected Light, Lamp House With Single 5W LED, Warm Color, Koehler Illuminator WIth Oblique Light Device, Center Adjustable Field And Aperture Diaphragm , Universal Voltage: 100-240V
|
●
|
Transmitted Light, Single 5W LED, Universal Voltage: 100-240V
|
|
Condensor
|
N.A. 0.9 Swing-out Achromatic Condenser For Transmit Light, With Center Adjustable Aperture Iris Diaphragm (for Transmit light)
|
|
IF Filter
|
Blue IF Filter, ( for reflection):≤480nm
|
|
Green IF Filter, ( for reflection):520-570nm
|
|
Red IF Filter, ( for reflection):630-750nm
|
|
|
Natural IF Filter, ( for reflection)
|
|
Filter
|
Yellow Filter Φ45
|
|
Green Filter Φ45
|
|
Blue Filter Φ45
|
|
Naturel Filter Φ45
|
|
Polarizing kits
|
Polarizer( Φ 30) (for reflection)
|
|
360° rotating analyzer insert
|
|
Polarizer( Φ 40) (for transmition)
|
|
Camera adapter

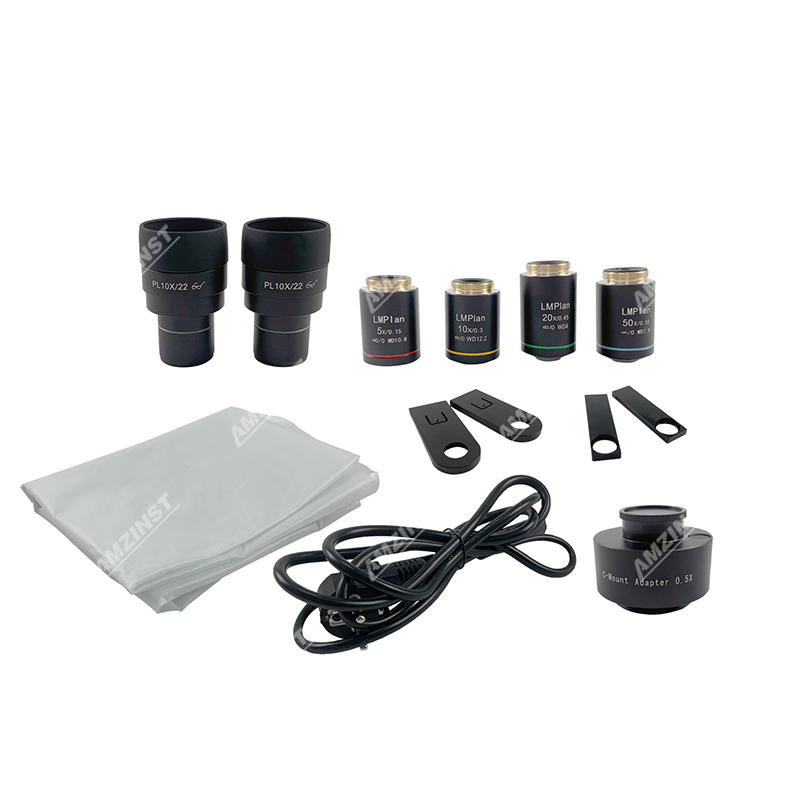

Accessories
|
0.35X camera adapter, C-type interface, adjustable
|
|
0.5X camera adapter, C-type interface, adjustable
|
|
0.65X camera adapter, C-type interface, adjustable
|
|
1X camera adapter, C-type interface, adjustable
|
|
Electronic eyepiece tube set
|
|
Digital camera relay lens (c interface)
|
|
Micrometer
Accessories
|
High-precision micrometer, grid value 0.01mm
|
|
Standard micrometer, grid value 0.01mm
|
|
''●'' = Standard configuration ''○''= Option
