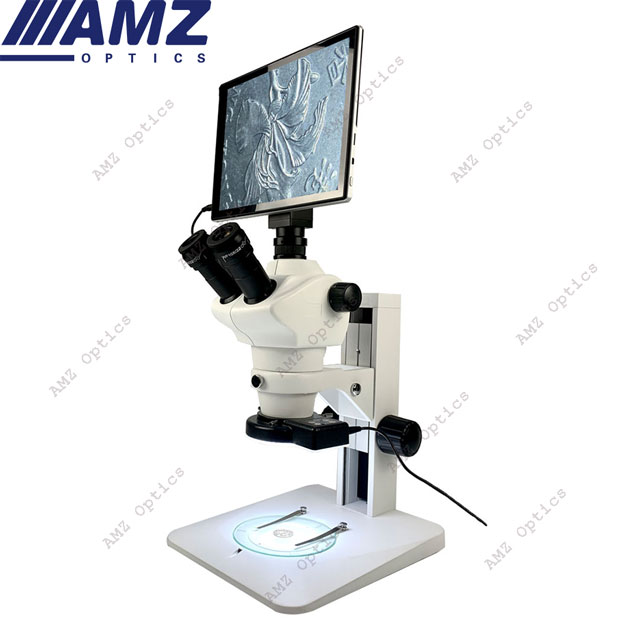

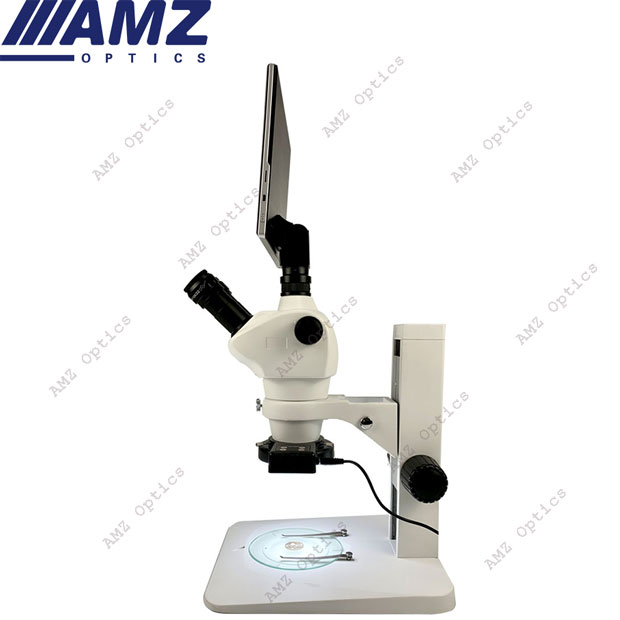

ZM0850B-R1LCD5M LCD Digital 0.8X - 5X Zoom Microscope With 80 LEDs Ring Light
  • Specifications
  • Accessories
  • Products Catalog
  • Microscope Specification:
    ● Optical System: Stereo Optics
    ● Viewing Head: Stereo Trinocular Viewing Head, Inclined at 45°, Interpupillary distance

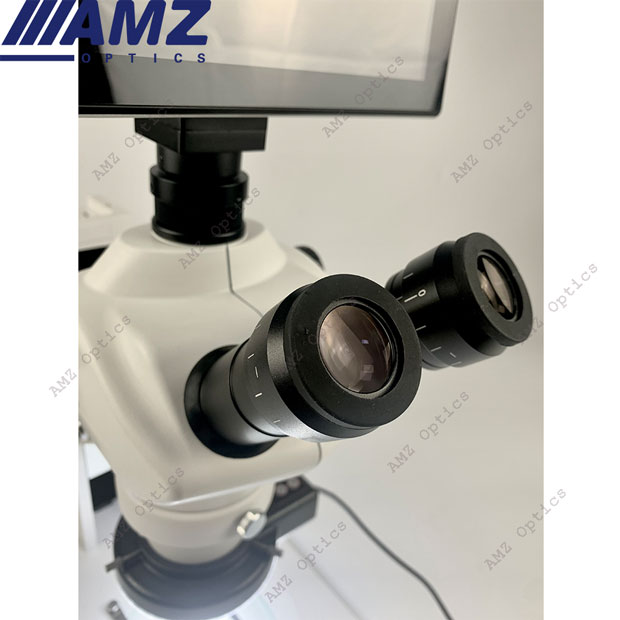

    ● Eyepiece: Wide Field Eyepiece WF10X/F.N.22mm
    ● Zoom Objective: 0.8X-5X
    ● Zoom Ratio: 6.3 : 1
    ● Working Distance: 115mm
    ● Insert Round Plate: ø125mm Glass Plate & White&Black Plate
    ● Illumination: Touch Sensitive LED-80T microscope ring light

    LCD Specification:
    ● Model: LCD-5M
    ● Series: Integrated display camera
    ● Sensor size: 1/2.5"
    ● Effective pixels: 5 million pixels
    ● Resolution: 2048*1536@15FPS
    ● Screen Resolution: 2048*1536 Retinal Screen
    ● Output: USB2.0,HDMI, TF card, WIFI
    ● Output Ports: 1x HDMI Port; 1x USB 2.0 Port; 1x Mini USB 2.0 Port
    ● Pixel size: 2.2*2.2|ìm
    ● Power: DC-12V/2A

    Illuminance Specification:
    ● Item mumber: LED-80T
    ● Illuminance: 4W LED
    ● Number of LED: 80PCS
    ● Inner diameter( mm ): 25-63mm ( for stereo head microscopes )
    ● Color temperature: 6500-7000 K
    ● Brightness adjustmen: Yes
    ● Material: Metal & plastic
    ● Power supply: 100V-240V
    ● Working distance: 50-180 mm
