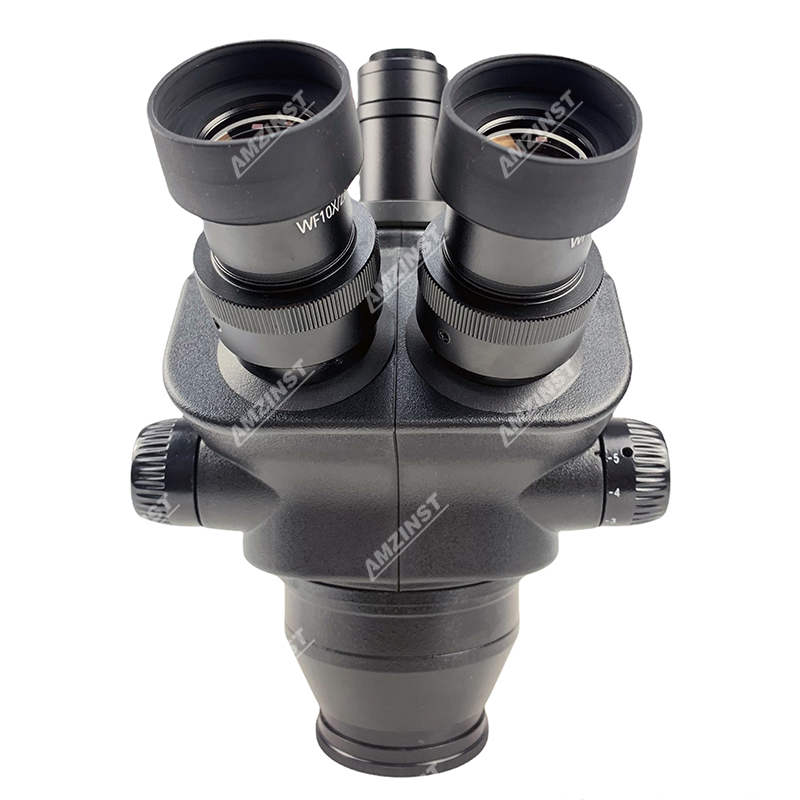

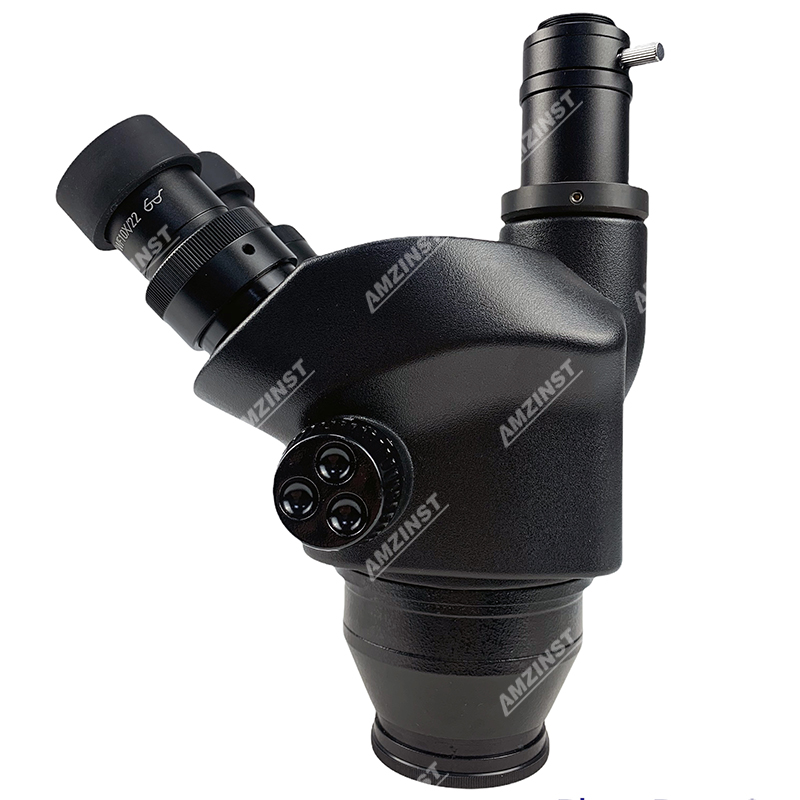

ZM-0750TH Zoom 0.7x-5.0x Trinocular Stereo Microscope Head

● Trinocular zoom body is the main body of a stereo microscope that has continuous zooming functions.
● In addition to the two eyepieces for observation, there is a third optical path (image port), which is usually a set of optical paths borrowed from the microscope for connecting to the camera to facilitate the observation with the display or connecting to a computer.
● Usually, the third ocular of the body can be configured with different photo eyepieces, or other interfaces to connect to different webcam, cameras and so on.
● This body usually needs to be placed on a microscope stand for use.
● Generally, a variety of eyepieces andobjective lenses with different magnifications can be selected, and high-end stereo microscope usually has a wide range of accessories for selection.
  • Specifications
  • Accessories
  • Products Catalog
  • ● Viewing head: Binocular head, Inclined 45°. Interpupillary distance adjustment 54-76mm, Diopter adjustment +/- 5.

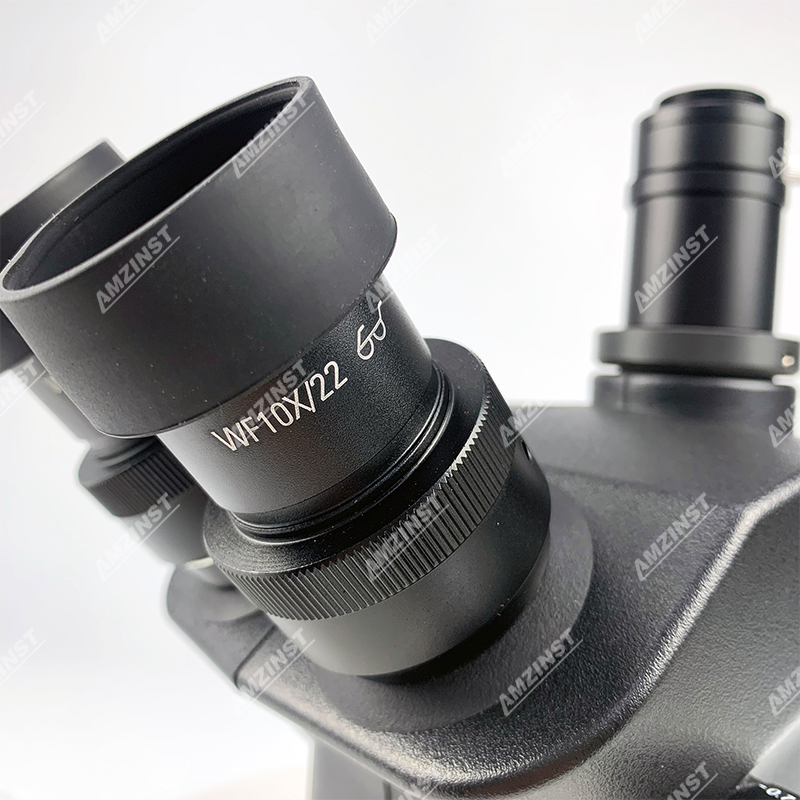

    ● Eyepiece: WF10X/22mm

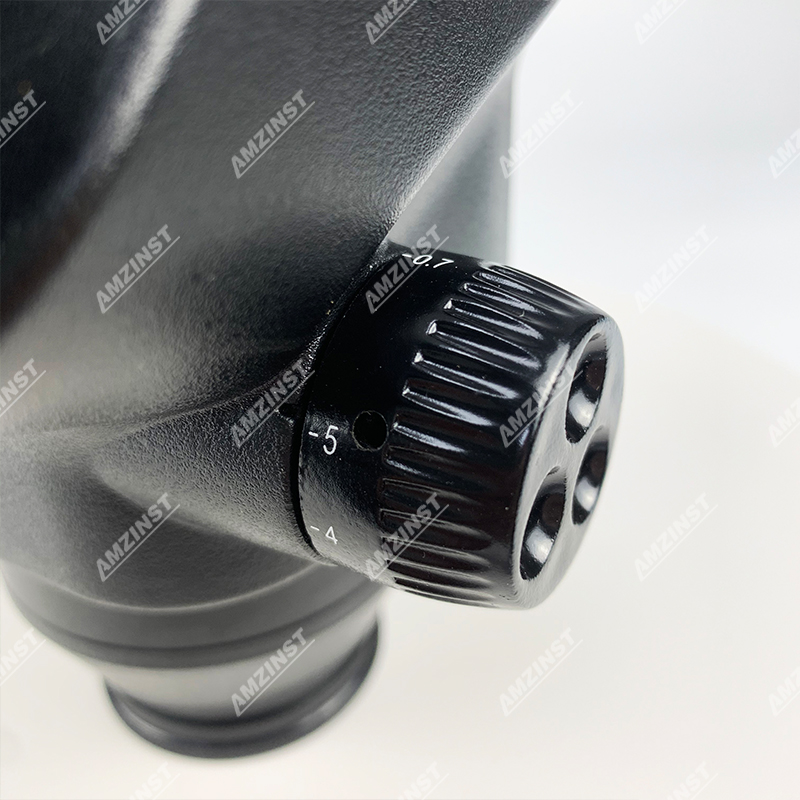

    ● Zoom Objective: 0.7-5.0X
    ● Zoom Range: 7.1 : 1
    ● Working Distance: 100mm
    ● Head Mounting Size: 76mm in diameter
    ● Dust cover: Yes (Included)
    ● Packing size: 32*22*23cm/1.77kg (one set)

    Optional Accessories:
    - 10x/22mm eyepieces (SKU: ZM0750-10EX)
