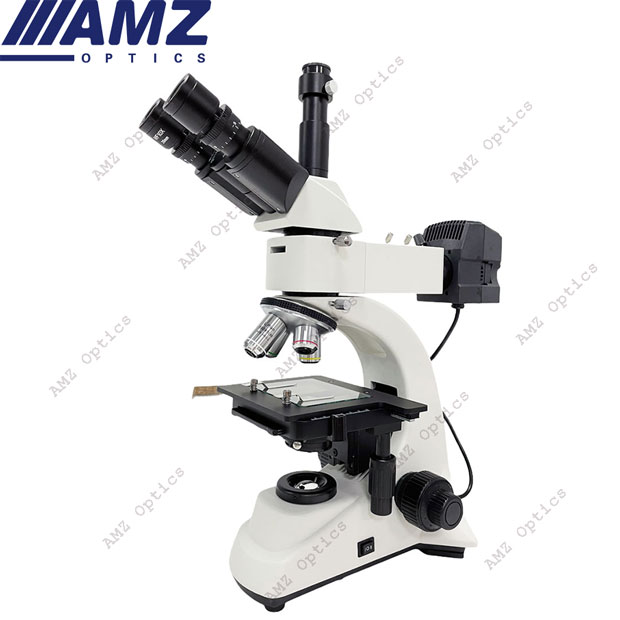

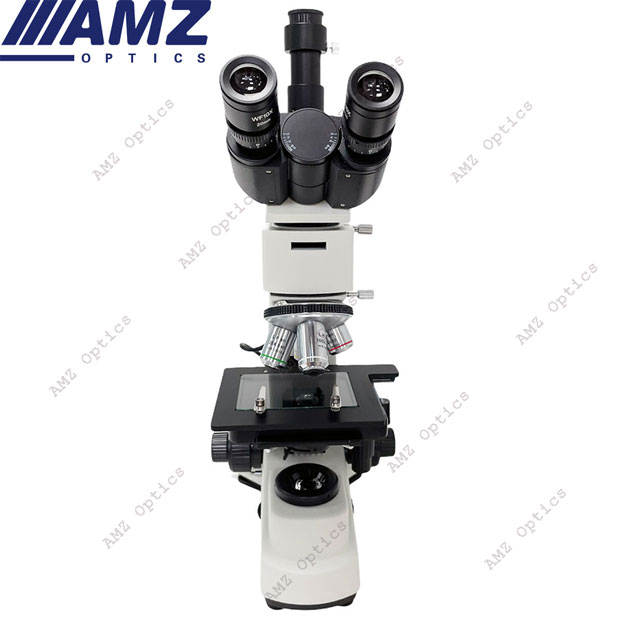

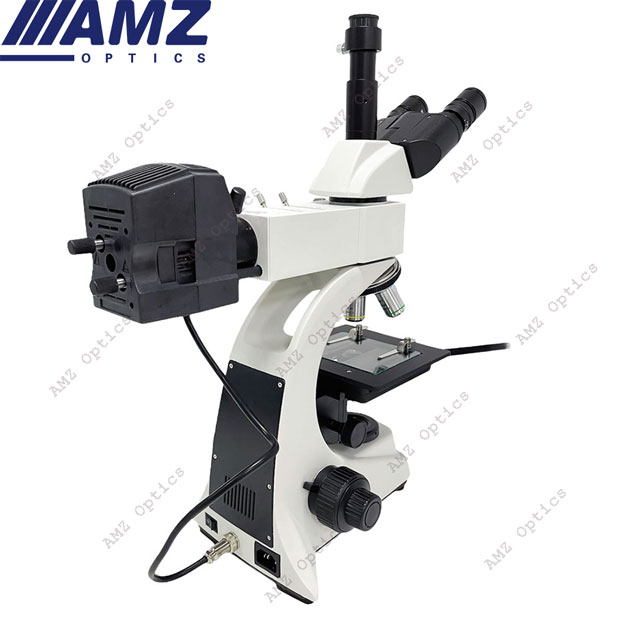

AJX-20TR Trinocular Wafer Inspection Bright/Dark Field Upright Metallographic Microscope
  • Specifications
  • Accessories
  • Products Catalog
  • ● Head:  Trinocular head
    ● Eyepiece: WF10X/20mm
    ● Infinitive plan Achromatic Objective: 5x/0.12, WD=23.6mm
                                                                 10x/0.25, WD=17.8mm
                                                                 40x/0.40, WD=10.4mm
                                                                 50x/0.55, WD=7.6mm
    ● Noseplece: Quadruple nosepiece
    ● Stage: Double layer mechanical stage, size 150x140m, movement 75x50mm
    ● Focusing: Coaxial fine and coarse adjustment.
    ●Illuminator: Kohler illumination, Epi-illuminator with Iris aperture diaphragm and iris field diaphragm.
    ●Illumination: halogen lamp. brightness adjustment.

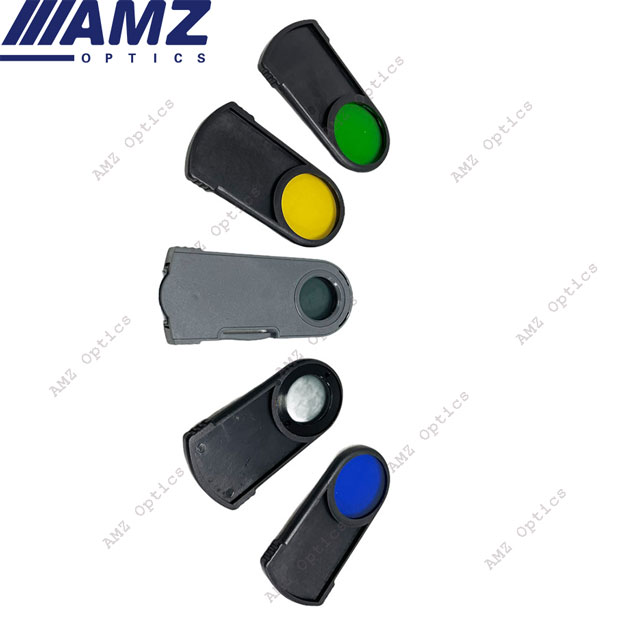

    ●Filter: Blue green yeallow, ground glass.
    ●Polarization Attachment.
