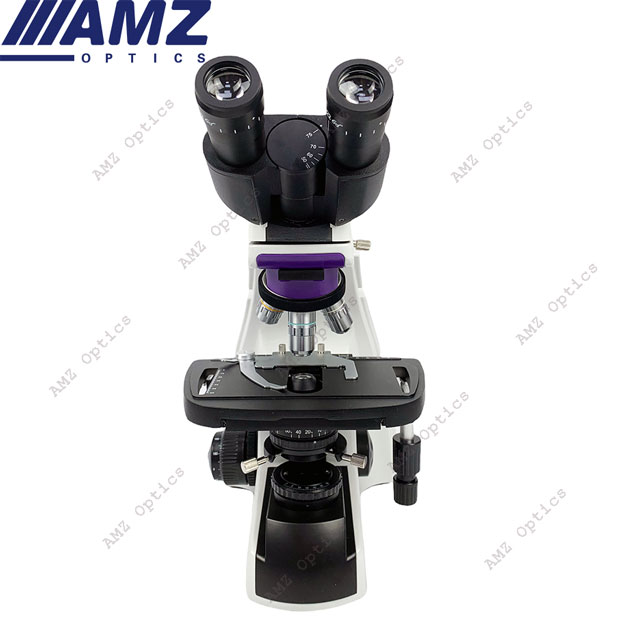

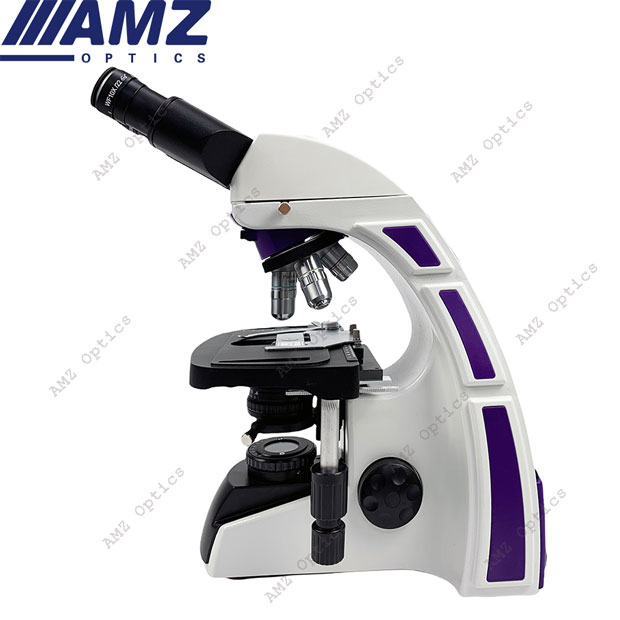

AIM-PBPA Binocular Scientific research microscope
1, The excellent appearance accord with ergonomic design
2. Integrated body design makes produces maintain long-term stability
3. High quality 3W LED lamp and long time using life
4. Infinity achromatic correction optical system and common optical system can meet the different customers' requirments.
  • Specifications
  • Accessories
  • Products Catalog

  • ● Optical System:Infinity achromatic correction optical system and common optical system
    ● Viewing Head:Articulated free binocular head, 30° inclined,interpupillary distance 50-75mm
    ● Eyepiece:PL10X/23mm high eyepiont eyepiece,diopter adjustment ±5,tube Ø30mm

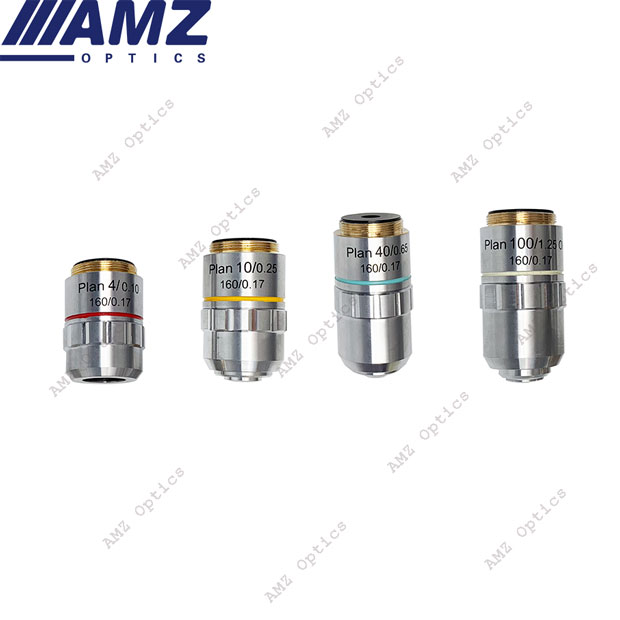

    ● Objective: Plan achromatic objectives 4X/0.10, 160/0.17

                        Plan achromatic objectives 10X/0.25, 160/0.17

                        Plan achromatic objectives 40X/0.65, 160/0.17

                        Plan achromatic objectives(OIL) 100X/1.25, 160/0.17
     ● Nosepiece:Backward quintuple or quadruple objective nosepiece

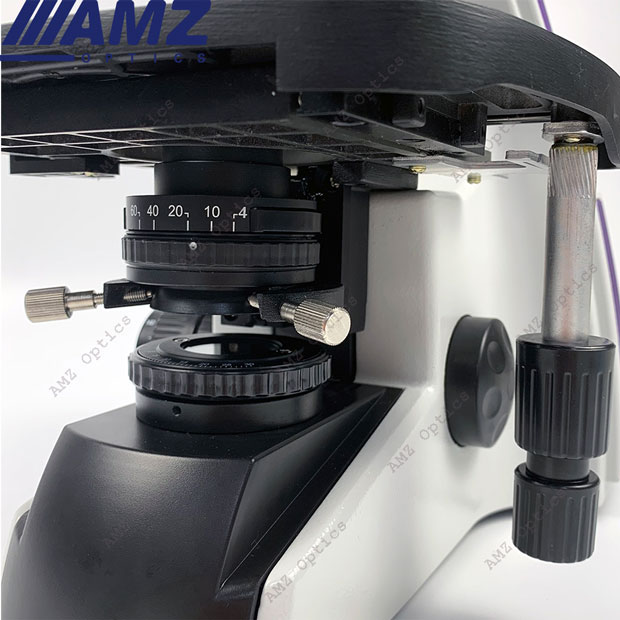

    ● Condenser: Abbe condenser set
    Dry darkfield condenser
    Oil-darkfield condenser

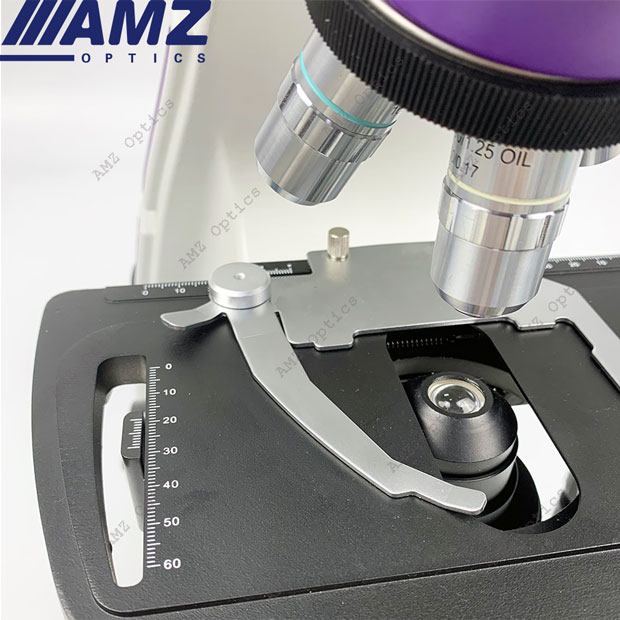

    ● Stage:220*148mm X-aris low hand position double mechanical stage(steel wire transmission):76*50mm,precision 0.1mm, damped double slide clamp

    ● Focusing System:Coaxial coarse and fine focus knobs,precision 0.002mm

    ● Illumination:3W LED lamp with Kohler illumination system
