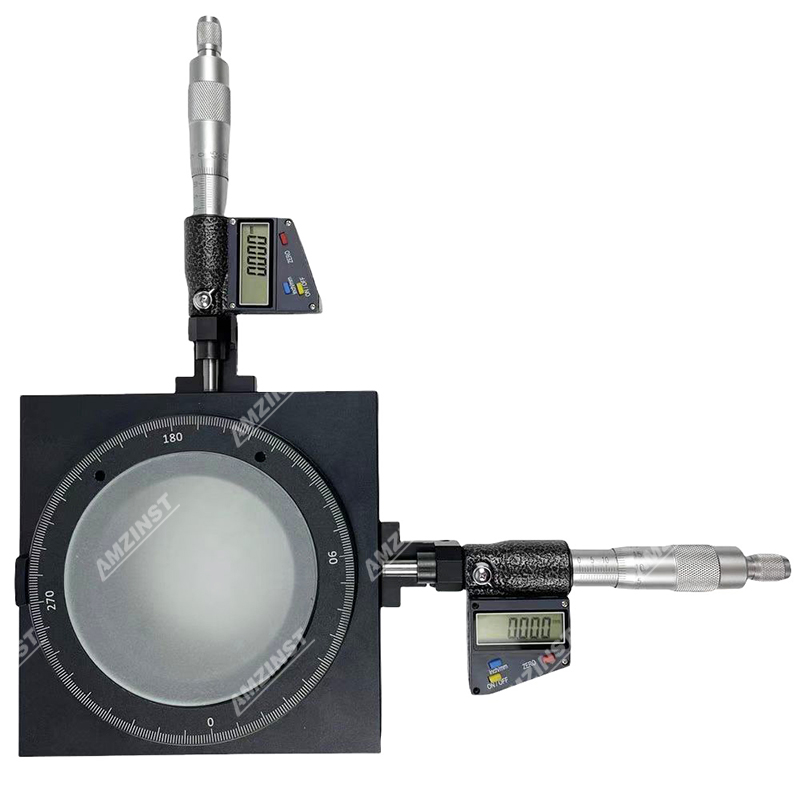

DMS-02 XY Mechanical Measurement Stage For Microscopes
  • Specifications
  • Accessories
  • Products Catalog
  • ● Table (Stage) Dimension: 140x140x36mm
    ● Digital Measuring stroke: 0-25mm
    ● Accuracy: 0.001mm / 0.00005"
    ● Travel Distance: 75x55mm
    ● Glass Size: ø95mm
    ● Diameter of base circle: ø95mm
    ● Conversion ''inch'' and ''mm'': Yes
    ● Net Weight: About 2.3kg
    ● Power by battery: 2pcs LR44 cell button battery (not included)
    ● Battery dimension: 11.6x5.3mm
