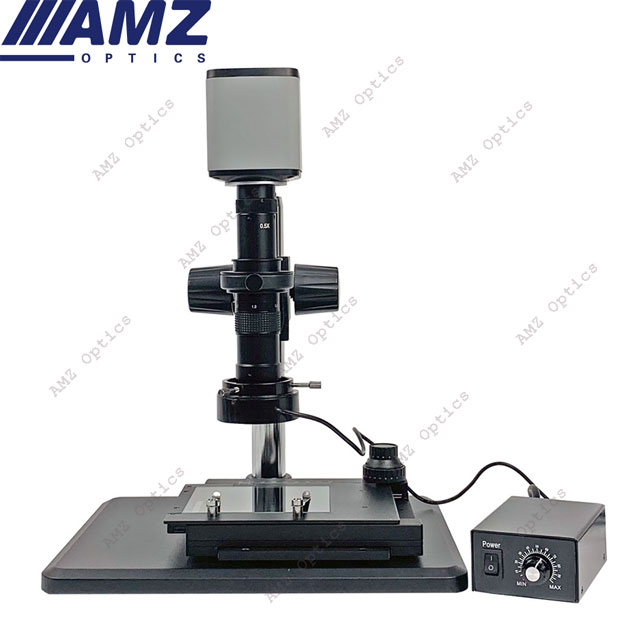

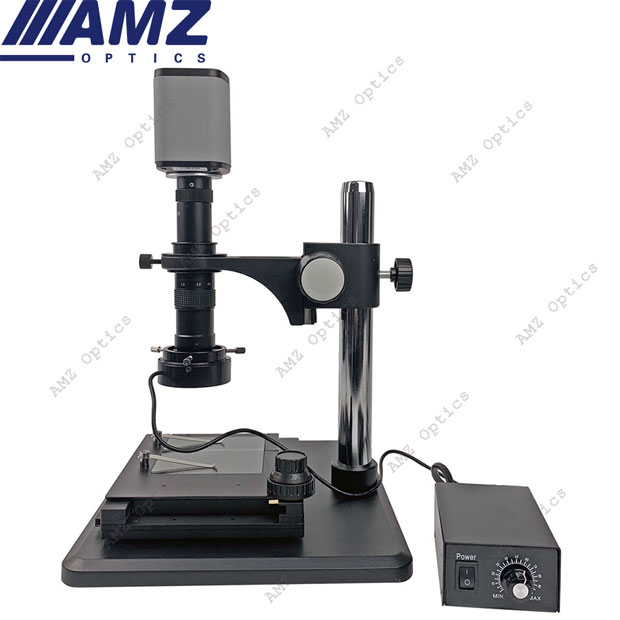

ZMZ45-B3M5 0.7X-4.5X Industrial Inspection Video Zoom Parallel Optical Microscope With Illuminator And Camera
  • Specifications
  • Accessories
  • Products Catalog
  • Microscope Specifications:

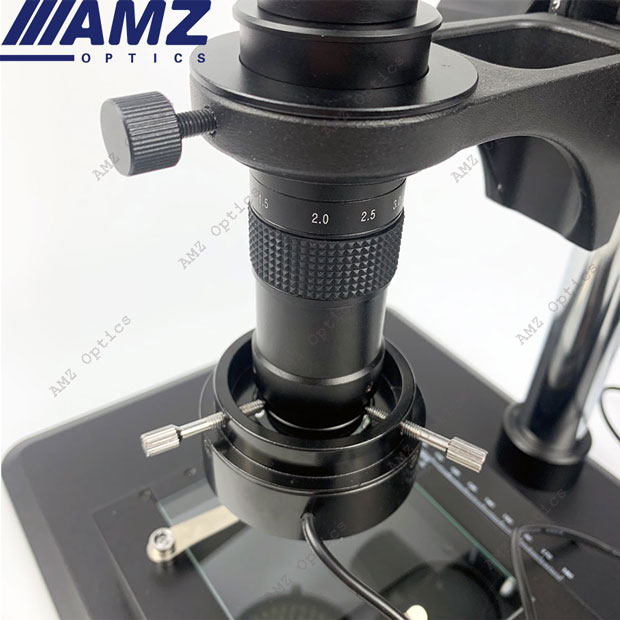

    ● Continuous zoom lens: 0.7-4.5X, zoom ratio: 6.4:1
    ● Standard working distance: 100mm
    ● Eyepiece: 0.5X (optional 0.35X/1X/2X)
    ● Objective: 1X (optional 0.5X, 2X)
    ● Base size:260*380mm

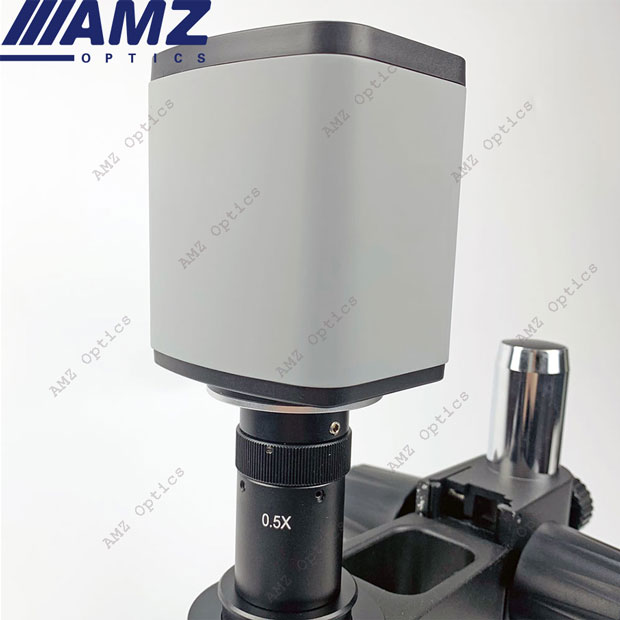

    Camera Specifications:
    ● Sensor: CMOS Aptina MT9P031
    ● Sensor Size: 1/2.5”, (0.5x C-mount recommended)
    ● Live Resolution: 1920 x 1080
    ● Capture Resolution: 5MP (2592x1944)
    ● Frame Rate: HDMI (30fps); USB 2.0 (15fps)
    ● Image Capture High Speed SD Card (8GB)
    ● Video Capture HDMI: 1080p, 15fps to SD Card, USB 2.0: 1080p, 15fps to PC or Mac ● Exposure Time 0.001sec—10.0 sec
    ● White Balance: Auto
    ● Settings: White Balance, Exposure Time, Noise, Reduction, Gain, Gamma, WDR
    ● Built-in Software Cloud 1.0
    ● PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported), Advanced Camera Controls: still image measurement and annotation, flatfield correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPG and TIF
    ● Data Interface: USB2.0, SD, HDMI
    ● Optical Interface: Windows 7/8/10(32/64bit)
    ● Optical Port: Standard C-Mount
    ● Camera Size: 90.7x74.5x67.2(mm)

    Illuminator Specifications:
    ● Power Output: 4.5W
    ● Brightness: 15000lux @ 100mm
    ● Color Temperature: 6400K
    ● Mounting Size: up to 50mm in diameter
    ● Inside Diameter: 35mm
    ● Outside Diameter: 68mm
    ● Power Input: 110-240V, 50-60HZ, auto-switching

    Stage Specifications:
    ● Type: Ball bearing rack
    ● Stage Dimesion: 180x155x26mm
    ● Glass Size: 116X96mm
    ● Travel Distance: Horizontal 75mm,vertical 55mm
    ● Reading Precision: 0.1mm
    ● Connecting Size: ø 95mm
