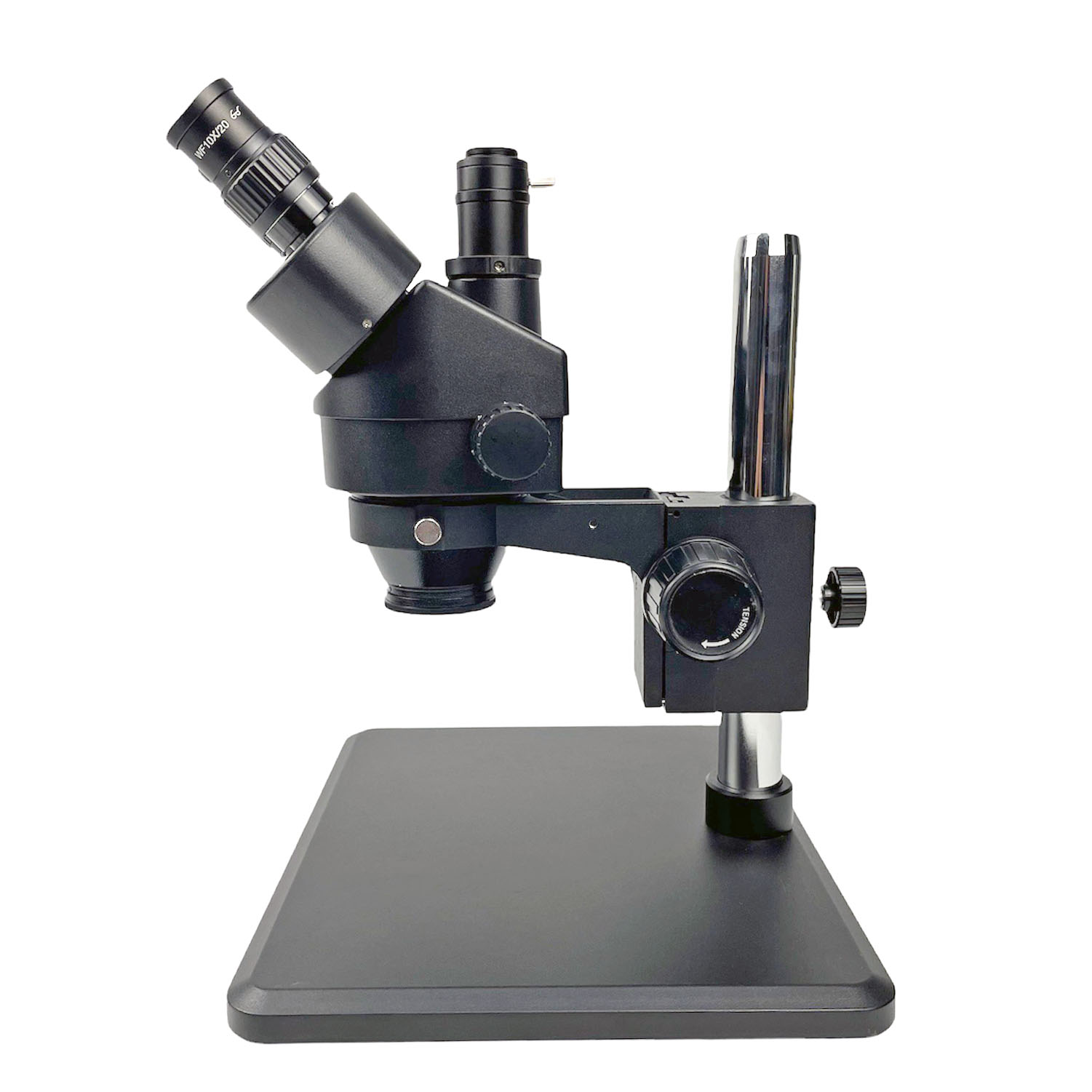

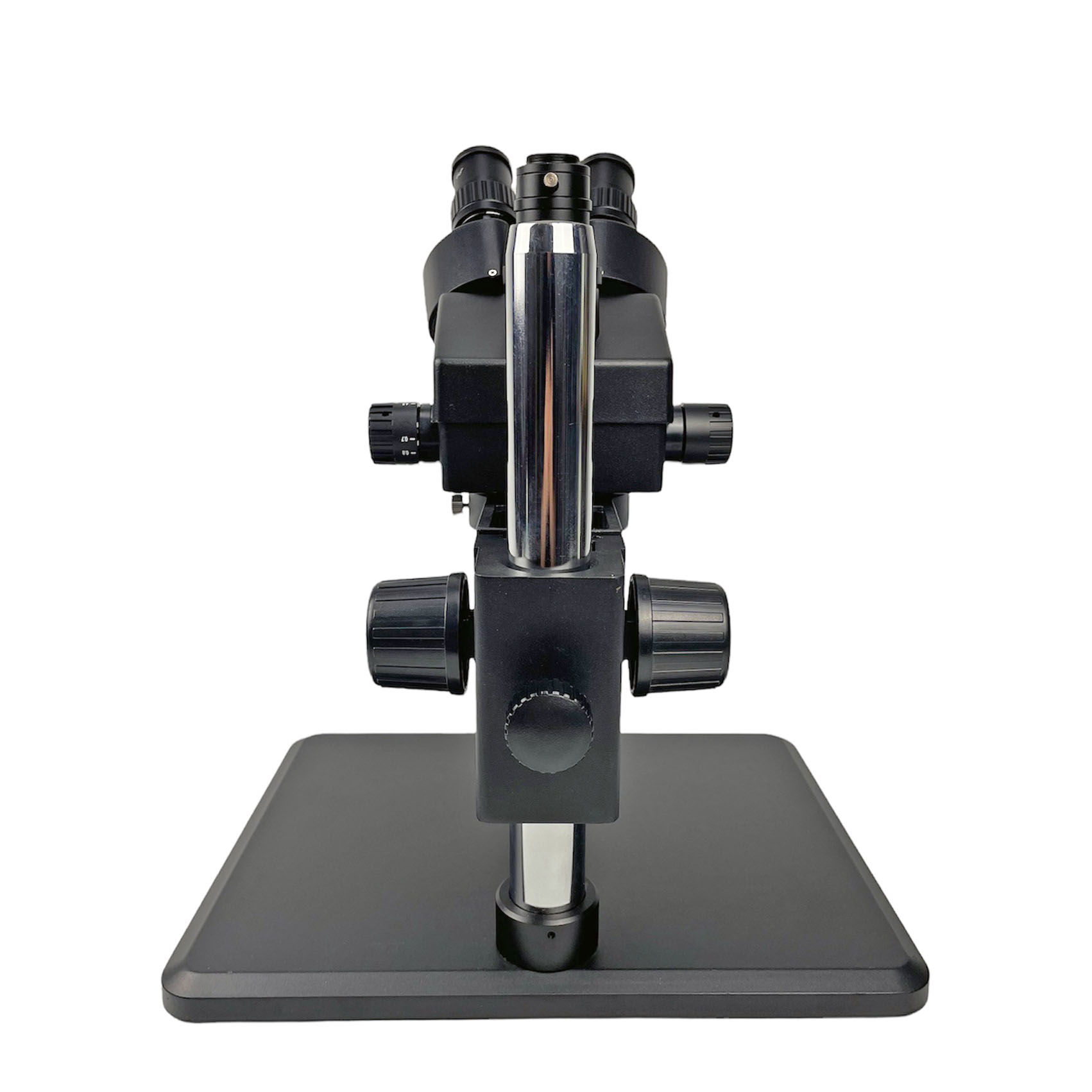

ZM0745T-B3 0.7X-4.5X Greenough Opticl Zoom Binocular Stereo Microscope With Big Working Stage stereoscopic microscope
  • Specifications
  • Accessories
  • Products Catalog
  • ● Viewing head: Trinocular head, Inclined 45°. Interpupillary distance adjustment 54-76mm, Diopter adjustment +/- 5.
    ● Eyepiece: WF10X/20mm

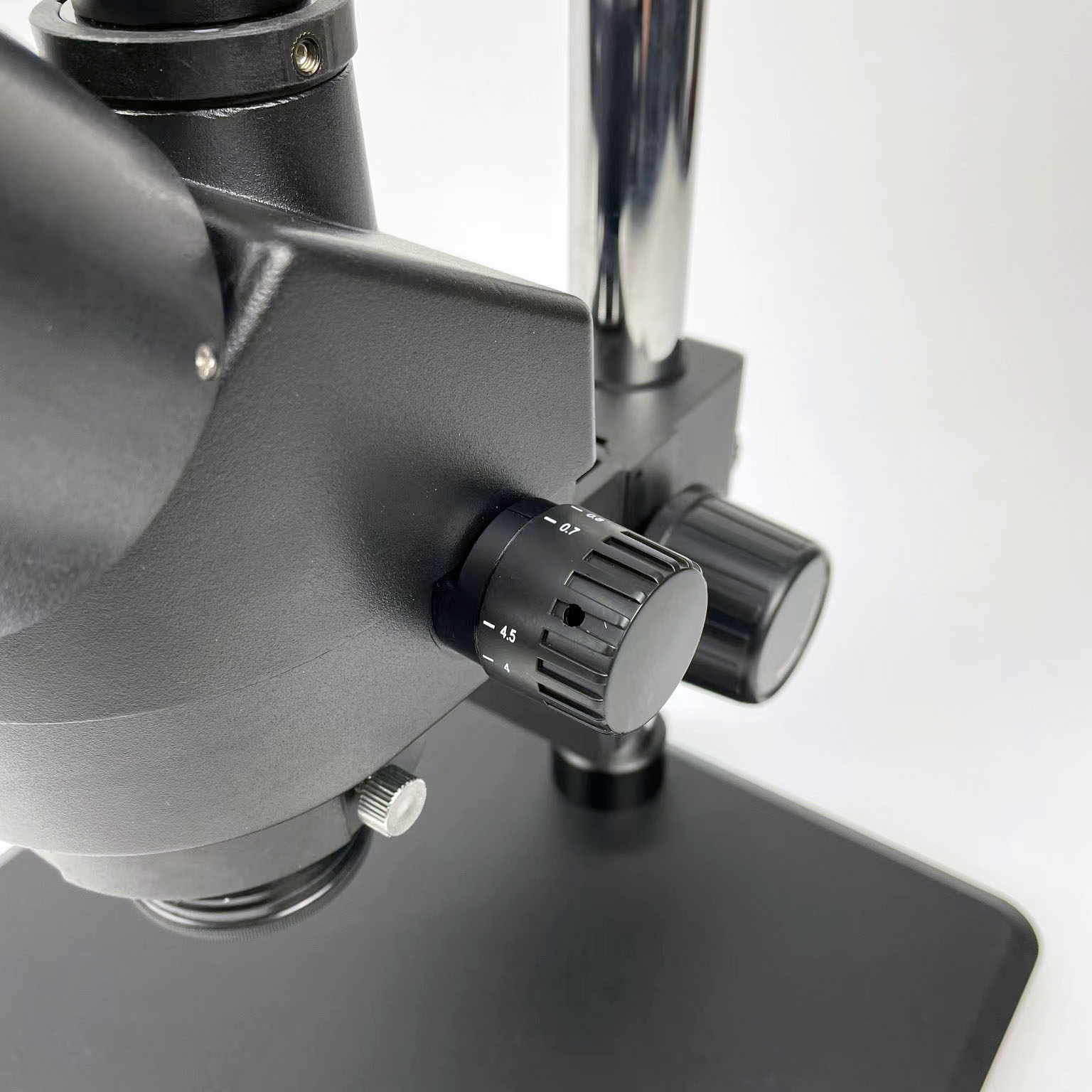

    ● Zoom Objective: 0.7-4.5X
    ● Zoom Range: 6.5:1
    ● Working Distance: 100mm
    ● Head Mounting Size: 76mm in diameter
    ● C-Mount Adapter: 1X (Included)
    ● Dust cover: Yes (Included)
    ● Vertical post height: 240mm
    ● Vertical post diameter: φ32mm
    ● Microscope body holder: φ50mm
    ● Focus travel: 50mm
    ● Base size: 320x260x16mm"
    ● Packing size: 42.4*33.5*25cm/5.45kg(one unit)
                            43.9*34.3*51cm/11.67kg(two units)
