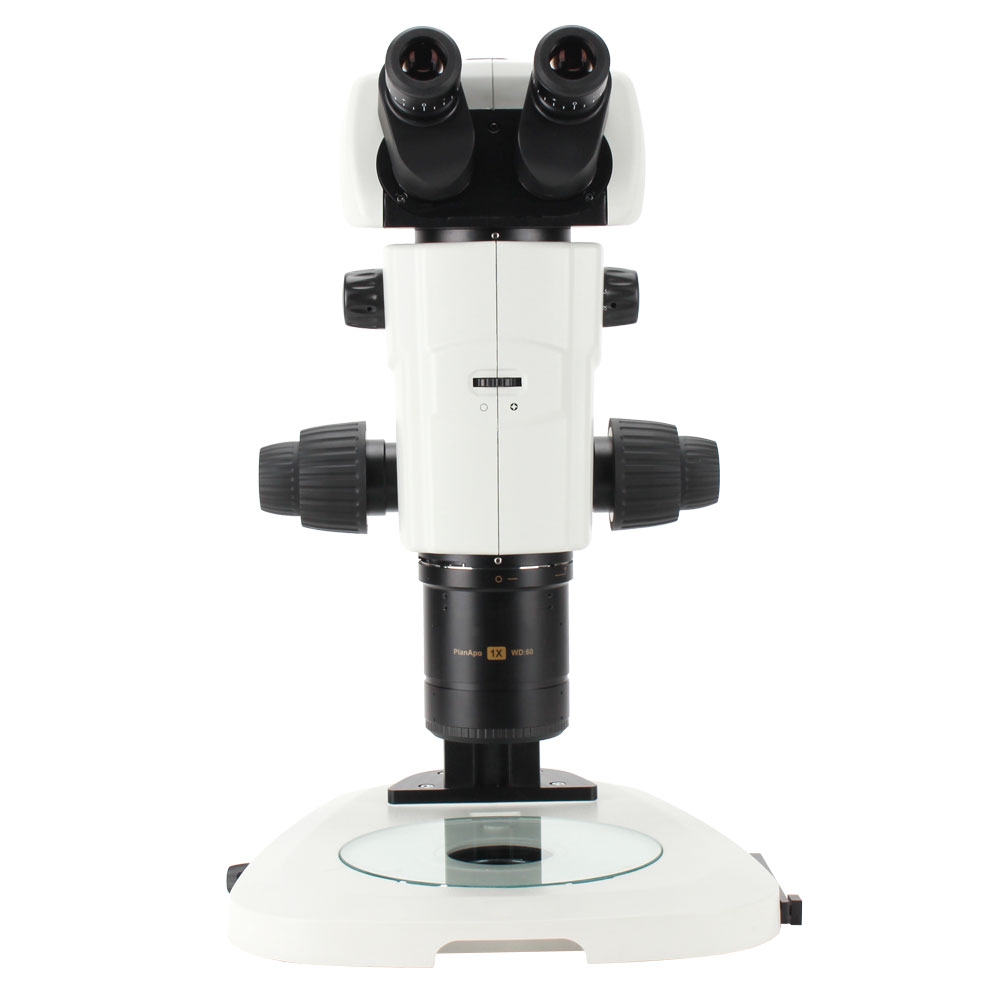

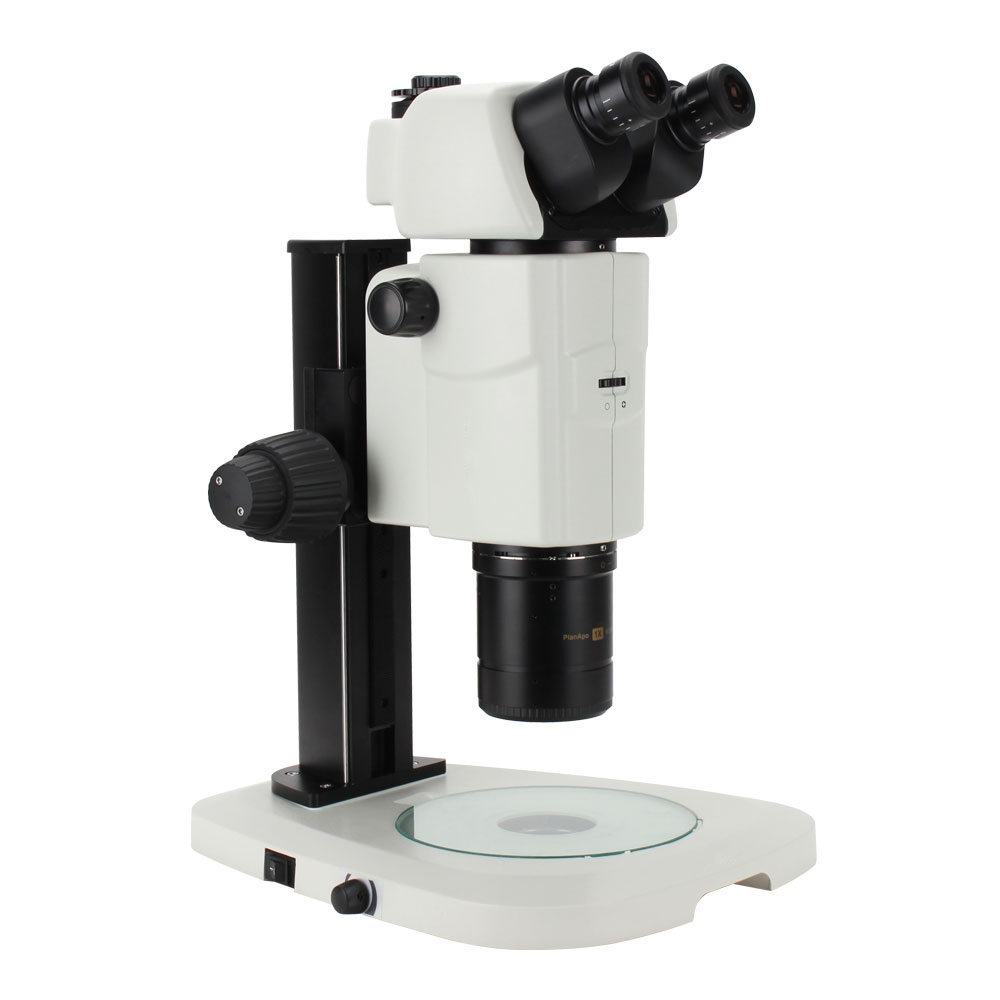

ZM-X90 0.75-13.5X Research Grade Stereo Microscope
ZM-X90 research grade parallel light stereo microscope zoom ratio could reach 1:18, high numerical aperture (NA) provides excellent image resolution, and parallel optical system increases flexibility and applicability of stereo microscopes. Various structural improvements and an ergonomic design provide an excellent user experience. This stereo microscope can provide an excellent solution for high-level life science research and industrial measurement observation.
  • Specifications
  • Accessories
  • Products Catalog

  		•
    		ZM-X90
    		 ZM-X90E
    		 ZM-X90EF
    Observation method
    		 Bright field, fluorescent, oblique lighting, simple polarizing, dark field
    		 ๐
    		 ๐
    		 ๐
    Optical system
    		 Parallel (zoom-type) Apochromatic Optical System
    		 ●
    		 ●
    		 ●
    Tube(eyepiece/camera port)

    Trinocular tube inclination angle: 20° Light distribution (both): 100: 0 or 0:100

    Ergo tilting trinocular tube, adjustable from 0-30°

    ●



    ●

    ●


    Eyepiece（F.O.V.mm）

    WF10X/23mm

    WF10X/22mm

    WF15X/16mm

    WF20X/12mm


    ●

    ๐

    ๐

    ๐

    ●

    ๐

    ๐

    ๐

    ●

    ๐

    ๐

    ๐

    Zoom objective
    		 0.75-13.5X
    		 ●
    		 ●
    		 ●
    Main objective
    		 PLAN APO 1X (NA 0.15, WD 60mm)
    		 ●
    		 ●
    		 ●
    Focusing range
    		 Coaxial coarse and fine focus 60+99mm
    		 ●
    		 ●
    		 ●
    Base
    		 LED stereo illumination base (OIC build-in illuminator)
    		 ●
    		 ●
    		 ●
    Base Dimensions (L*W*H)
    		 365x341x417.5mm
    		 ●
    		 ●
    		 ●
    Contrast methods
    		 Oblique illumination contrast (OIC) with sliding slit aperture
    		 ●
    		 ●
    		 ●
    Adapter
    		 DC12V 2A
    		 ●
    		 ●
    		 ●
    Epi-fluorescence components
    		 4 Color LED fluorescence
    		 ๐
    		 ๐
    		 ●
    Coaxial Lighting parts
    		๐
    		 ๐
    		 ๐
    Optical fiber illuminator
    		๐
    		 ๐
    		 ๐
