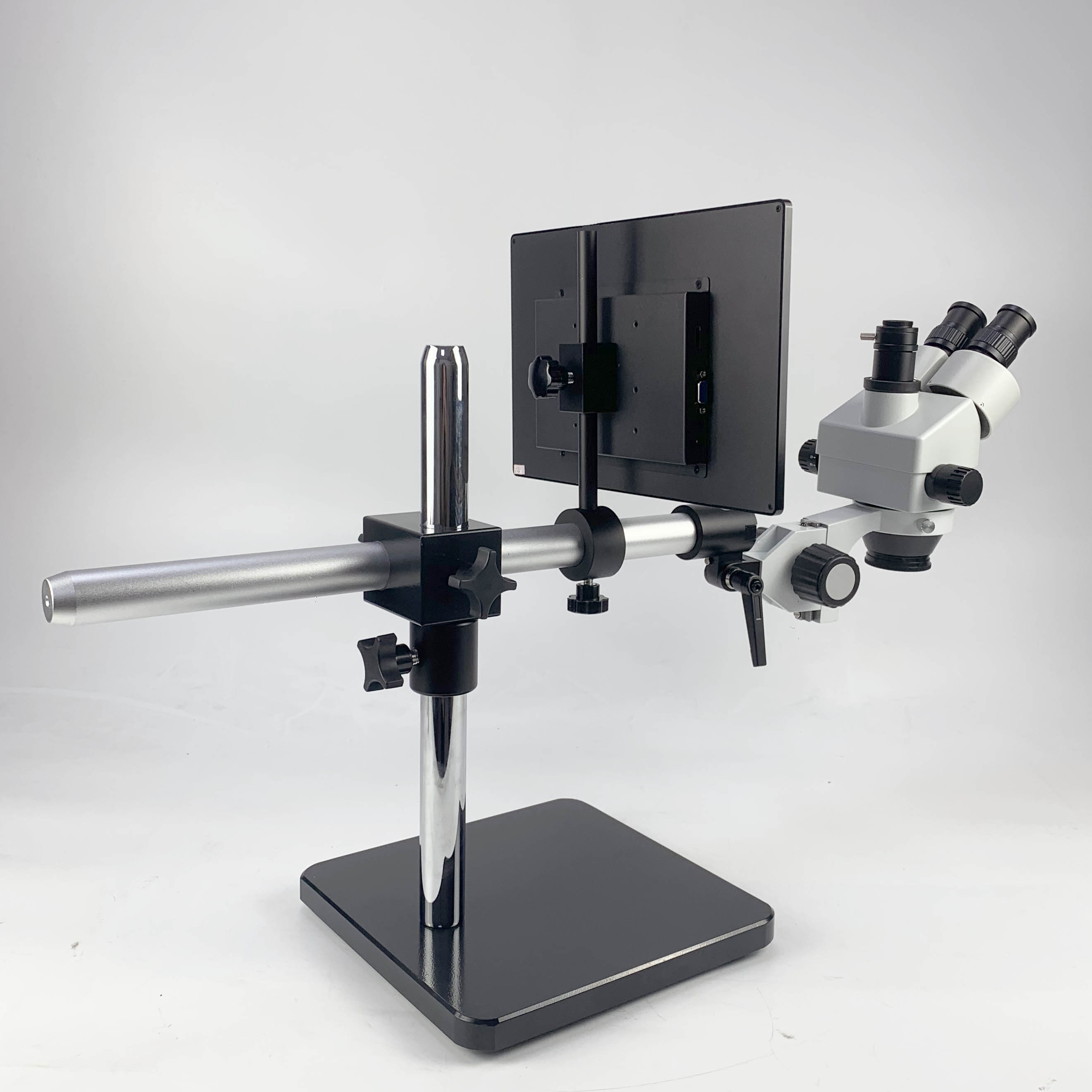

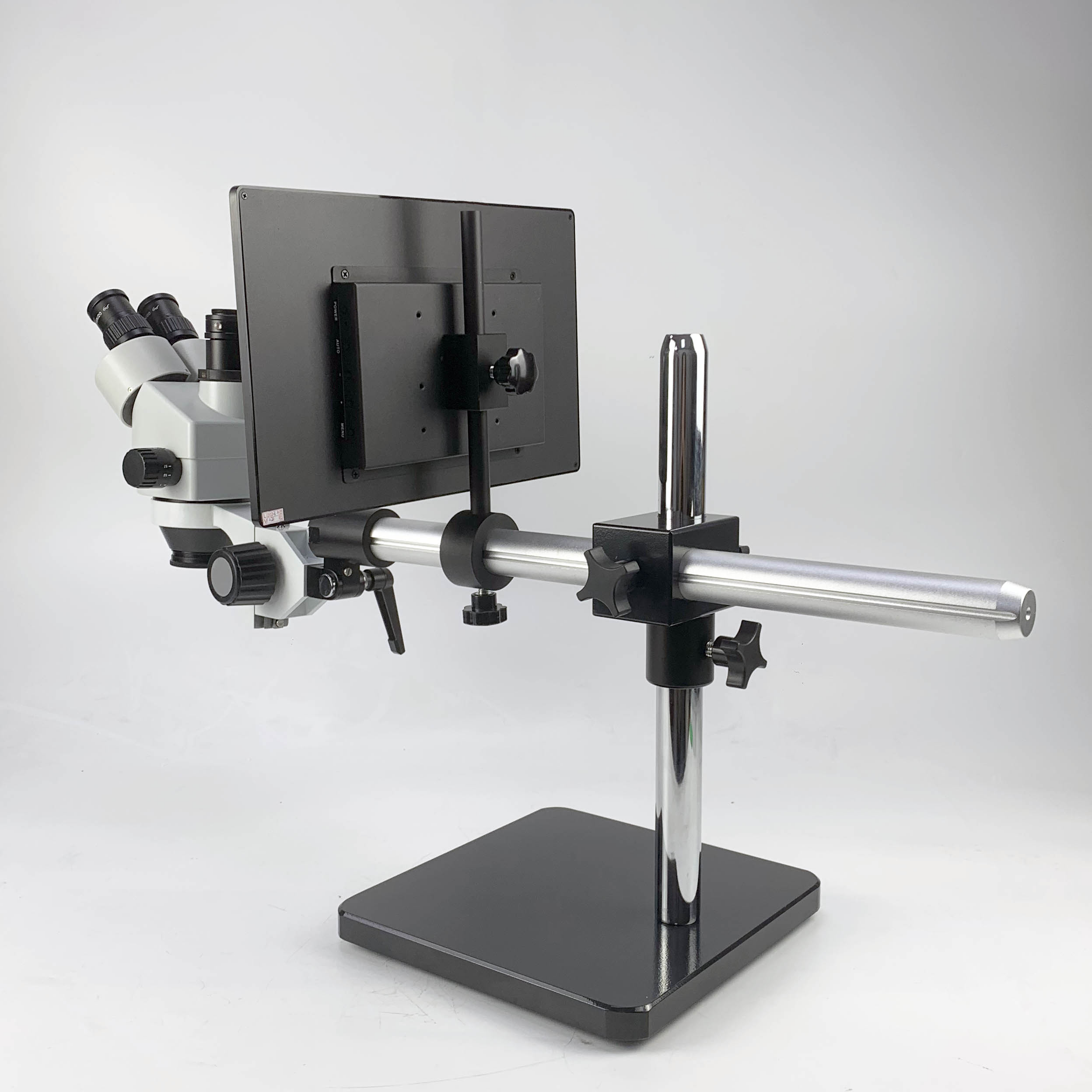

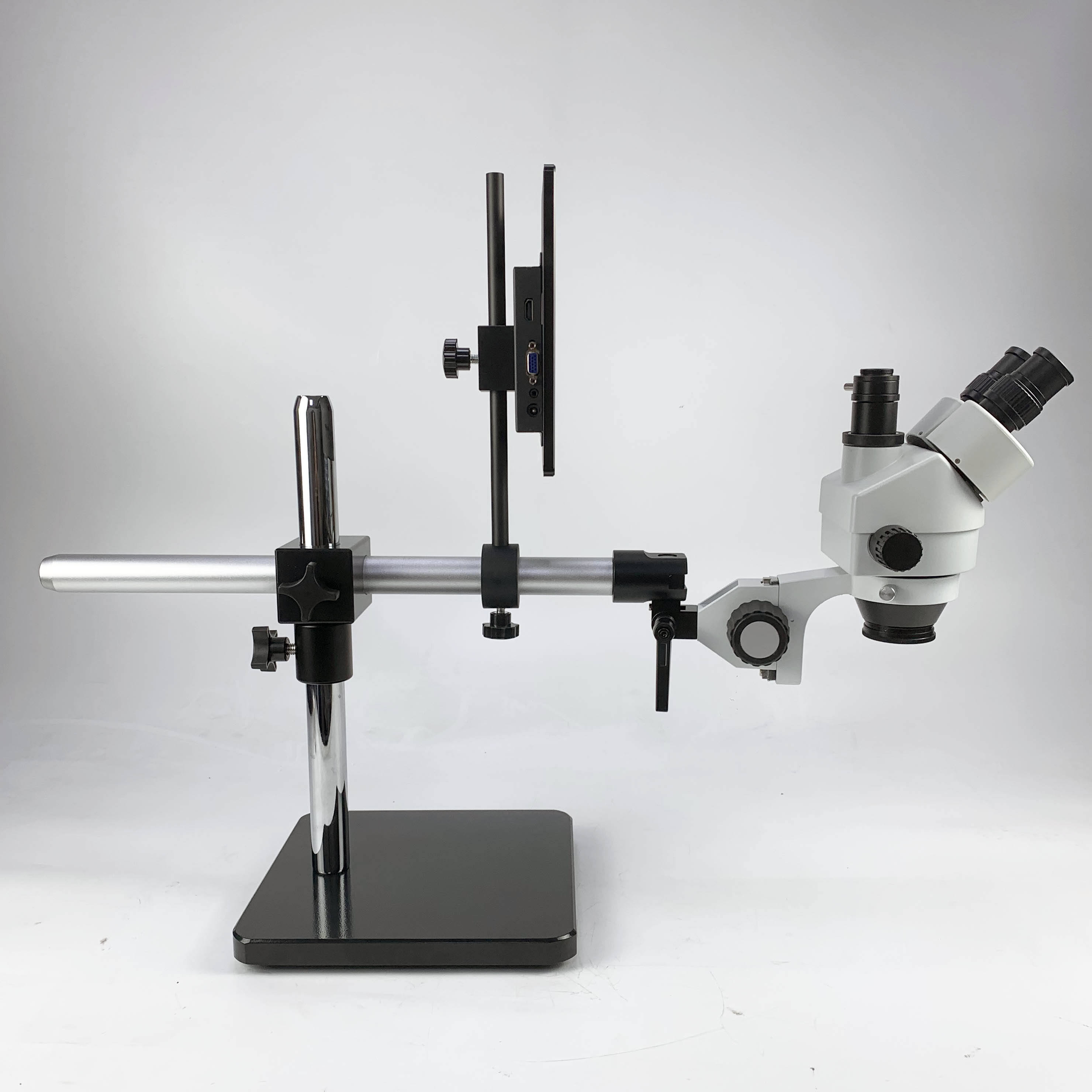

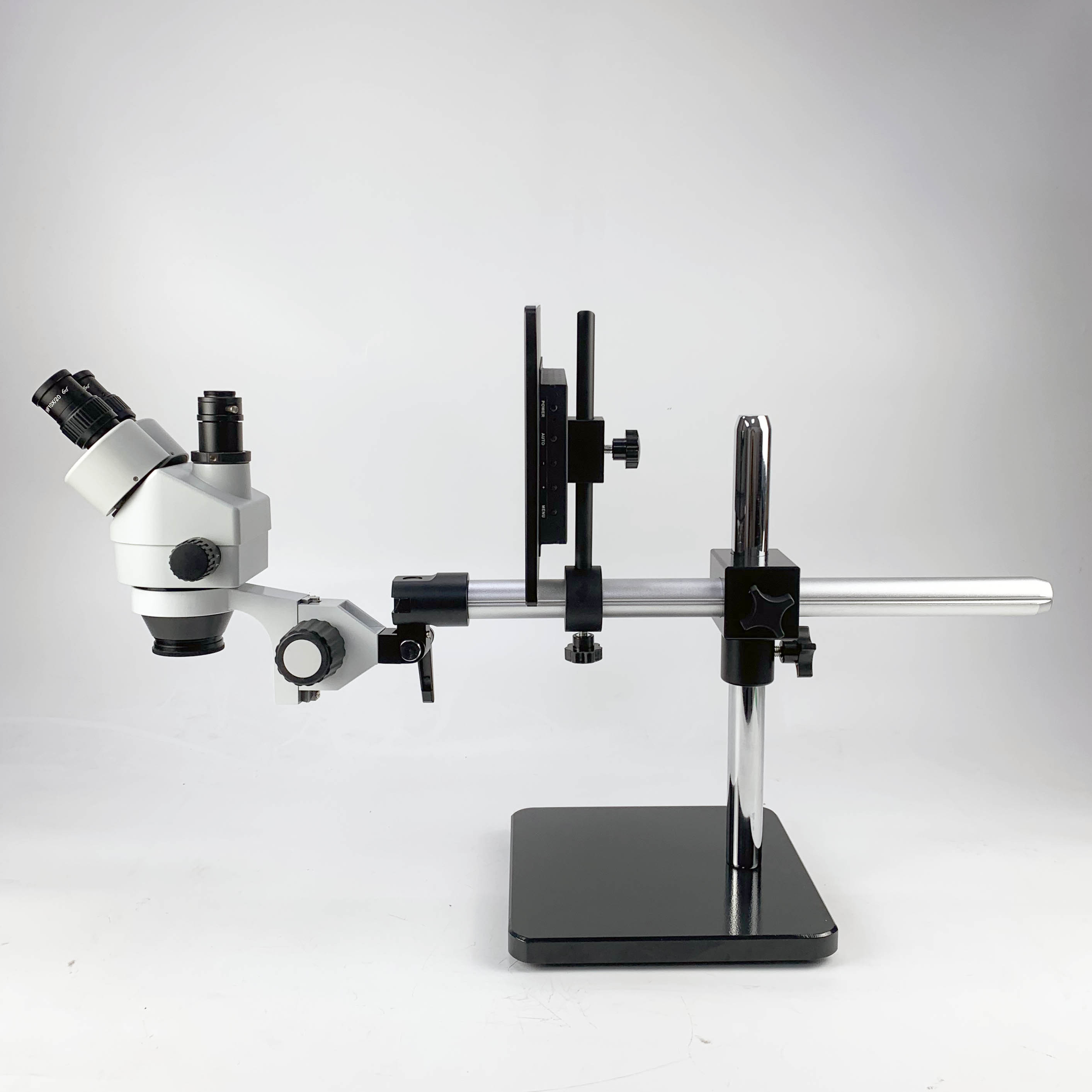

ZM-2TP1713LCD 0.7-4.5x Trinocular Stereo Microscope With 13.3 Inch LCD Screen
  • Specifications
  • Accessories
  • Products Catalog

  • SZM-0745TH 7x-45x Trinocular Zoom Stereo Microscope Head
    ● Viewing head: Trinocular head, Inclined 45°. Interpupillary distance adjustment 54-76mm, Diopter adjustment +/- 5.
    ● Eyepiece: WF10X/20mm
    ● Zoom Objective: 0.7-4.5X
    ● Zoom Range: 6.5:1
    ● Working Distance: 100mm
    ● Head Mounting Size: 76mm in diameter
    ● C-Mount Adapter: 1X (Included)
    ● Dust cover: Yes (Included)



    T-P17W Single arm microscope boom stand
    ● Expand the scope of operation and observe the object in any direction
    ● Vertical post height: 390mm
    ● Vertical post diameter: 31mm
    ● Vertical post material:  Stainless steel with scratch-resistant coating
    ● Horizontal bar length: 532mm
    ● Horizontal bar material: aluminum (solid stainless bar can be customized)
    ● Base Size: 255x255x29mm



    LCD-1330M 1080P 13.3inch LCD Screen
    ● Size: 13.3 inch
    ● Liquid Crystal Type: LV133a
    ● Physical Resolution: 1920×1080
    ● Zoom: 16:9
    ● Display Color: 16.7M, 72% NTSC
    ● Dot Pitch (mm): 0.051×0.153
    ● Brightness (nits): 300 cd/m2 (Typ.)
    ● Contrast: 1000:1 (Typ.) (transmission)
    ● Viewing Angle (up/down/left/right): Full view 85/85/85/85 (Typ.)(CR≥10)
    ● Response Time: 30 (Typ.)(Tr+Td)
    ● Power Supply: DC: 12V 2A
    ● Field Frequency: 60Hz, 75Hz
    ● Signal Interface: VGA×1, HDMI×1
    ● Color System: PAL/NTSC/SECAM
    ● Menu Operation: Button
    ● Menu Language (optional): Simplified Chinese, Traditional Chinese, English, Russian, French, Spanish, German, Italian
    ● Housing Material/Color: ABS shell/black
    ● Installation Method: Pole (25mm/32mm)
    ● Operating Temperature: 0℃~50℃
    ● Storage Temperature: -20℃~60℃
    ● Display Size (mm): 293.76(H) × 165.24(V)
    ● Shell Size (mm): 321.00×261.50×34.50
    ● Weight: 1.495kg
    ● Maximum Power Loss: ≦24W
    ● Standby Power Loss: <3W
