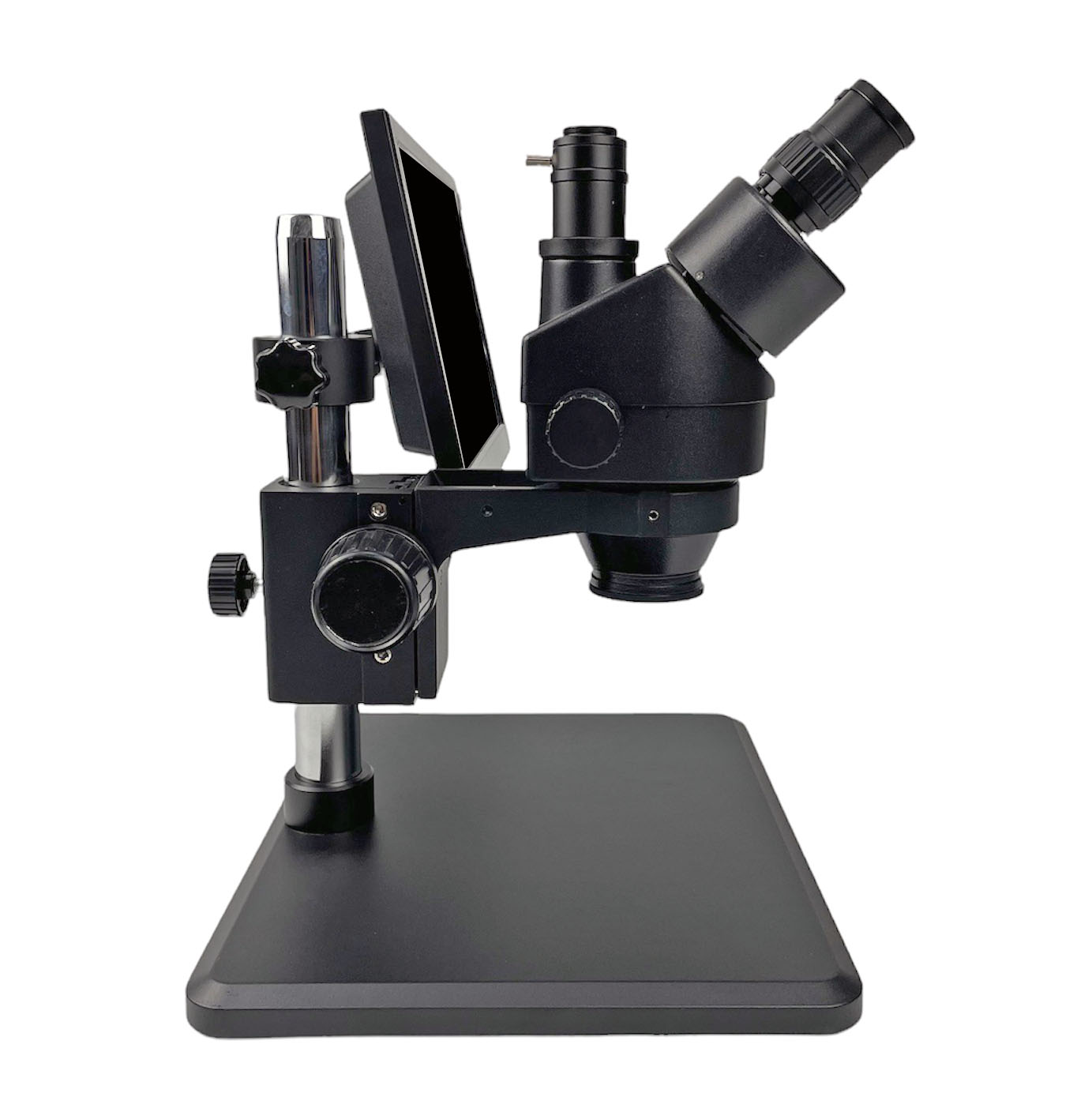

ZM0745T-B3L156 0.7X - 4.5X Zoom Trinocualr Digital Stereo Microscope With 15.6 Inch LCD Screen
  • Specifications
  • Accessories
  • Products Catalog
  • Microscope Specification:
    ● Viewing head: Trinocular head, Inclined 45°. Interpupillary distance adjustment 54-76mm, Diopter adjustment +/- 5.
    ● Eyepiece: WF10X/20mm
    ● Zoom Objective: 0.7-4.5X
    ● Zoom Ratio: 6.5:1
    ● Working Distance: 100mm
    ● Head Mounting Size: 76mm in diameter
    ● Vertical post height: 240mm
    ● Vertical post diameter: φ32mm
    ● Microscope body holder: φ50mm
    ● Focus travel: 50mm
    ● Base size: 320x260x16mm

    LCD Specification:
    ● Size: 15.6inch
    ● Liquid Crystal Type: IPS
    ● Physical Resolution: 1920×1080
    ● Zoom: 16:9
    ● Display Color: 16.2M (6-bit + FRC)
    ● Dot Pitch (mm): 0.05975×0.17925 mm (H×V)
    ● Brightness (nits): 250 cd/m² (Typ.)
    ● Contrast: 800:1 (Typ.) (transmission)
    ● Viewing Angle (up/down/left/right): Full view 85/85/85/85 (Typ.)(CR≥10)
    ● Response Time: 3ms
    ● Working power: 24W
    ● Standby power:≤ 3W
    ● Power Supply: DC: 12V 2A
    ● Field Frequency: 60Hz、75Hz
    ● Signal Interface: VGA×1、HDMI×1
    ● Color System: PAL/NTSC/SECAM
    ● Menu Operation: Button
    ● Menu Language (optional): Simplified Chinese, Traditional Chinese, English, Russian, French, Spanish, German, Italian
    ● Housing Material/Color: ABS shell/black
    ● Installation Method: Pole (25mm/32mm)
    ● Working temperature:  0℃~50℃
    ● Storage temperature: -20℃~60℃
    ● Display area: 344.16×193.59 mm (H×V)
    ● Shell size : 375.00×238.50×34.50mm
    ● Packing size: 425×345×120mm/ 2.73kg
