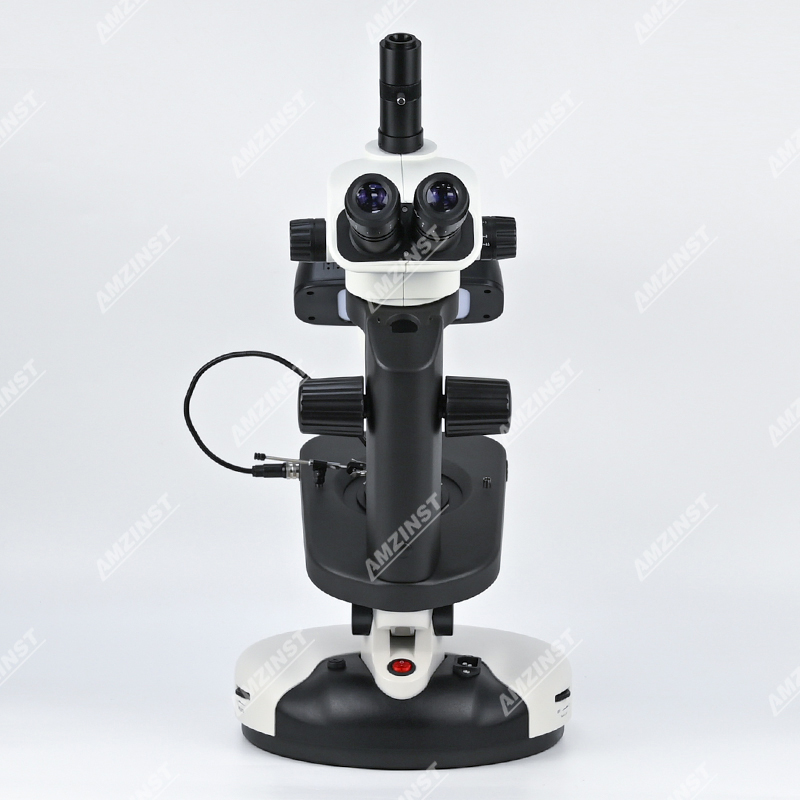

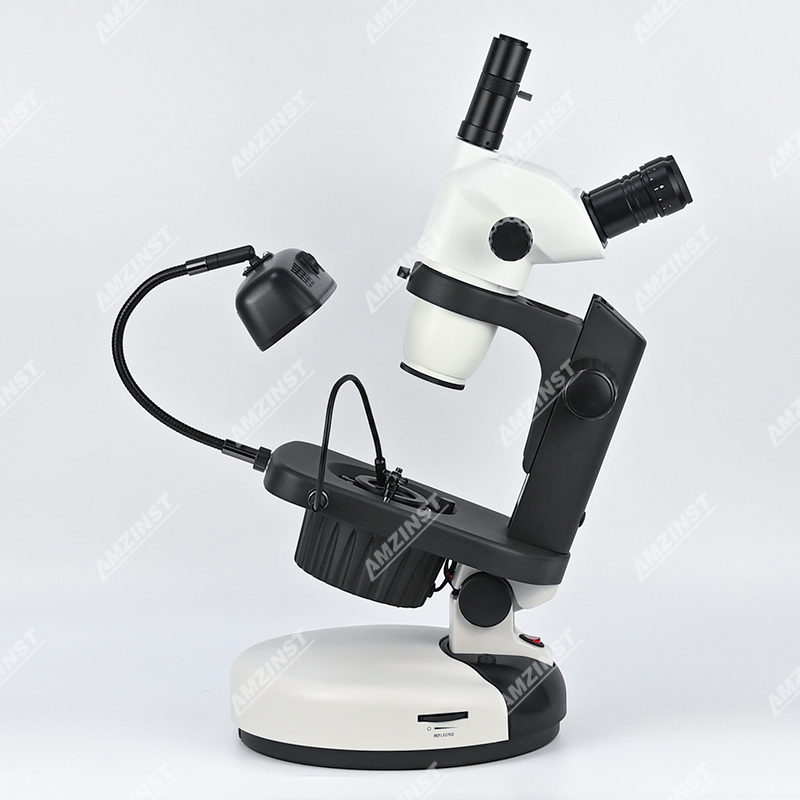

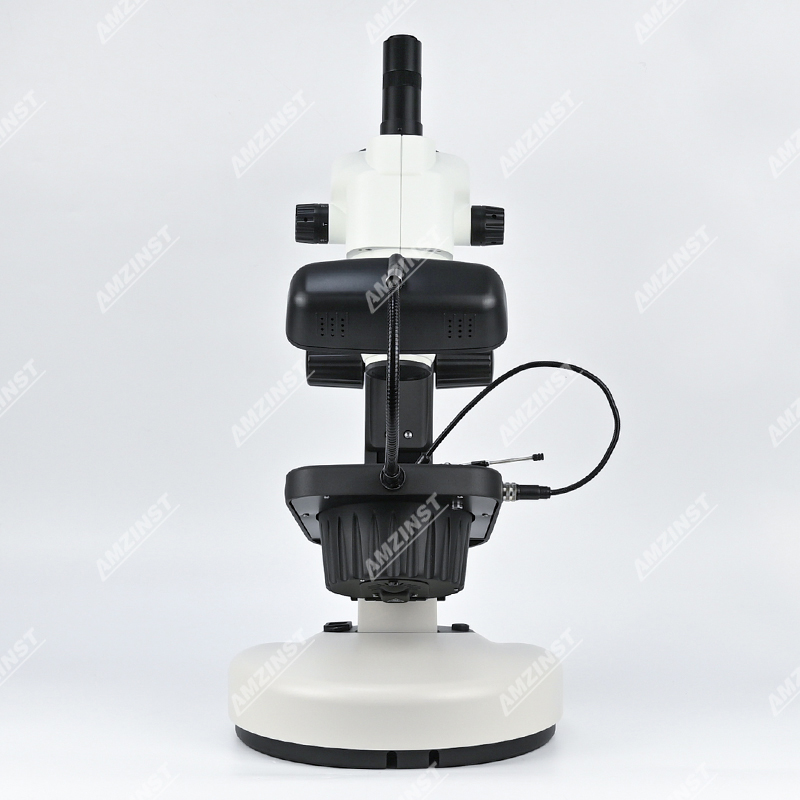

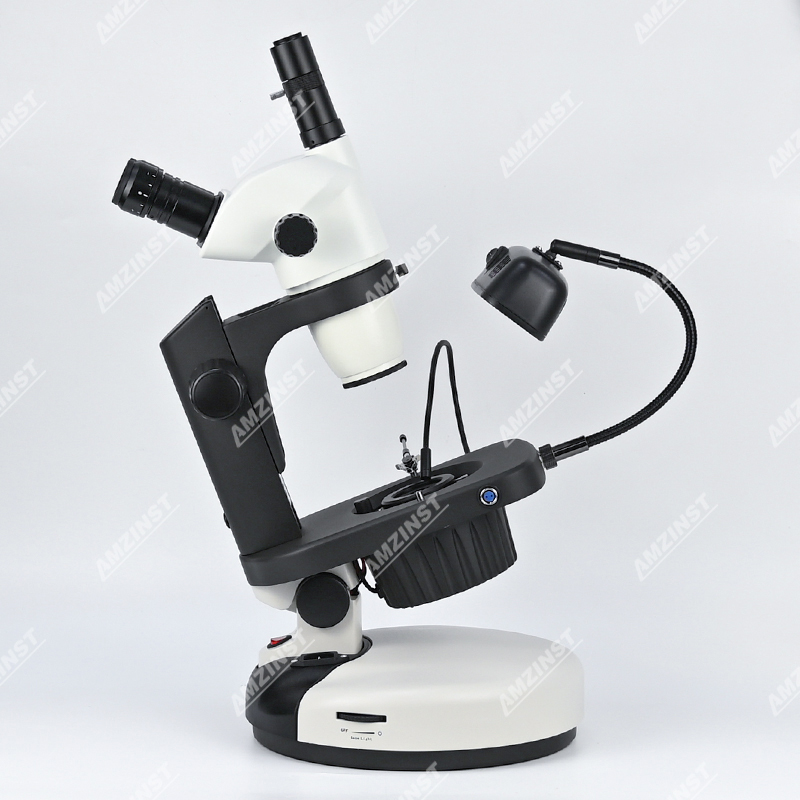

ASZ-ZT7 Zoom 6.7-45x Trinocular Professional Jewelry Gemological Microscope
  • Specifications
  • Accessories
  • Products Catalog
  • ● Optical system: Greenough
    ● Microscope body color: White
    ● Viewing head: Trinocular viewing head, Inclined 45°. Interpupillary distance adjustment 54-76mm, Diopter adjustment +/- 5
    ● Eyepieces: WF10x/22mm focusable eyepieces, Eyeguards included
    ● Zoom objectives: 0.67x – 4.5x
    ● Zoom ratio: 6.7 : 1
    ● Working distance: 110mm
    ● Head mounting size: 76mm in diameter
    ● C-Mount Adapter: 1X (Included) Stand
    ● Microscope body holder: φ76mm
    ●Sliding baffle and iris diaphragm: 2mm-41mm
    ● 3pcs Illuminators: - Overhead 7W Fluorescent lamp
                                 - LED Point Light
                                 - 6V/20W Halogen illumination
    ● Focus travel: 115mm
    ● Gem Clamp: Quality steel clamp to hold the gem for all direction observations of gems
    ● Stand angle tiltable adjustment: 0-38°

    ● Base rotatable: 0°-325°


      Optional Accessories:
    - 1x Focusable C-Mount Camera Adapter (SKU: ZM6745-1CT)
    - 0.5x Focusable C-Mount Camera Adapter (SKU: ZM6745-05CT)
    - 0.35x C-Mount Camera Adapter (SKU: ZM6745-035CT)
    - 0.3x Auxiliary lens (SKU: AU6745-03X)
    - 0.4x Auxiliary lens (SKU: AU6745-04X)
    - 0.5x Auxiliary lens (SKU: AU6745-05X)
    - 0.75x Auxiliary lens (SKU: AU6745-075X)
    - 1.5x Auxiliary lens (SKU: AU6745-15X)
    - 2x Auxiliary lens (SKU: AU6745-20X)
    - 10x/22mm eyepieces (SKU: ZM6745-10EX)
    - 15x/16mm eyepieces (SKU: ZM6745-15EX)
    - 20x/12mm eyepieces (SKU: ZM6745-20EX)
