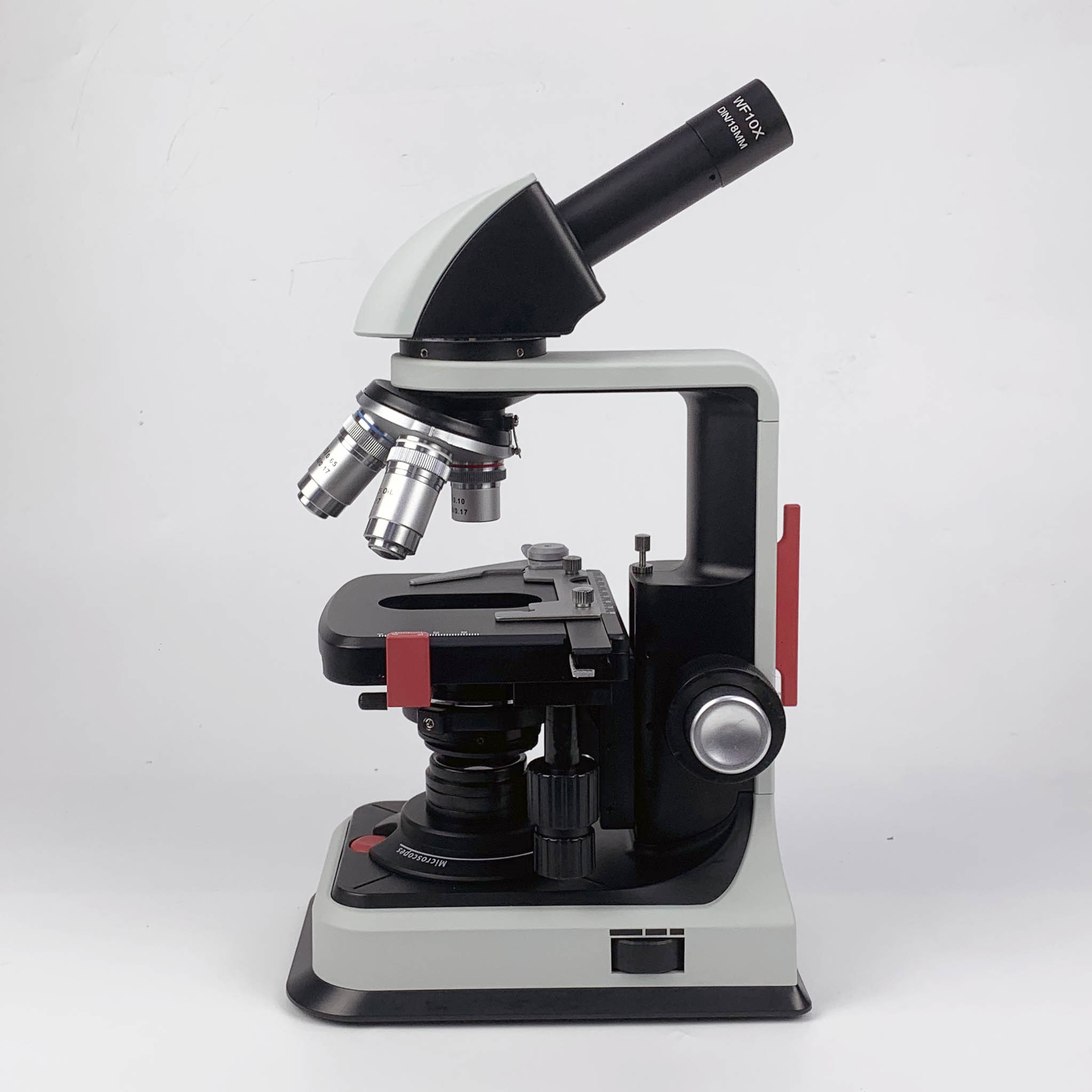

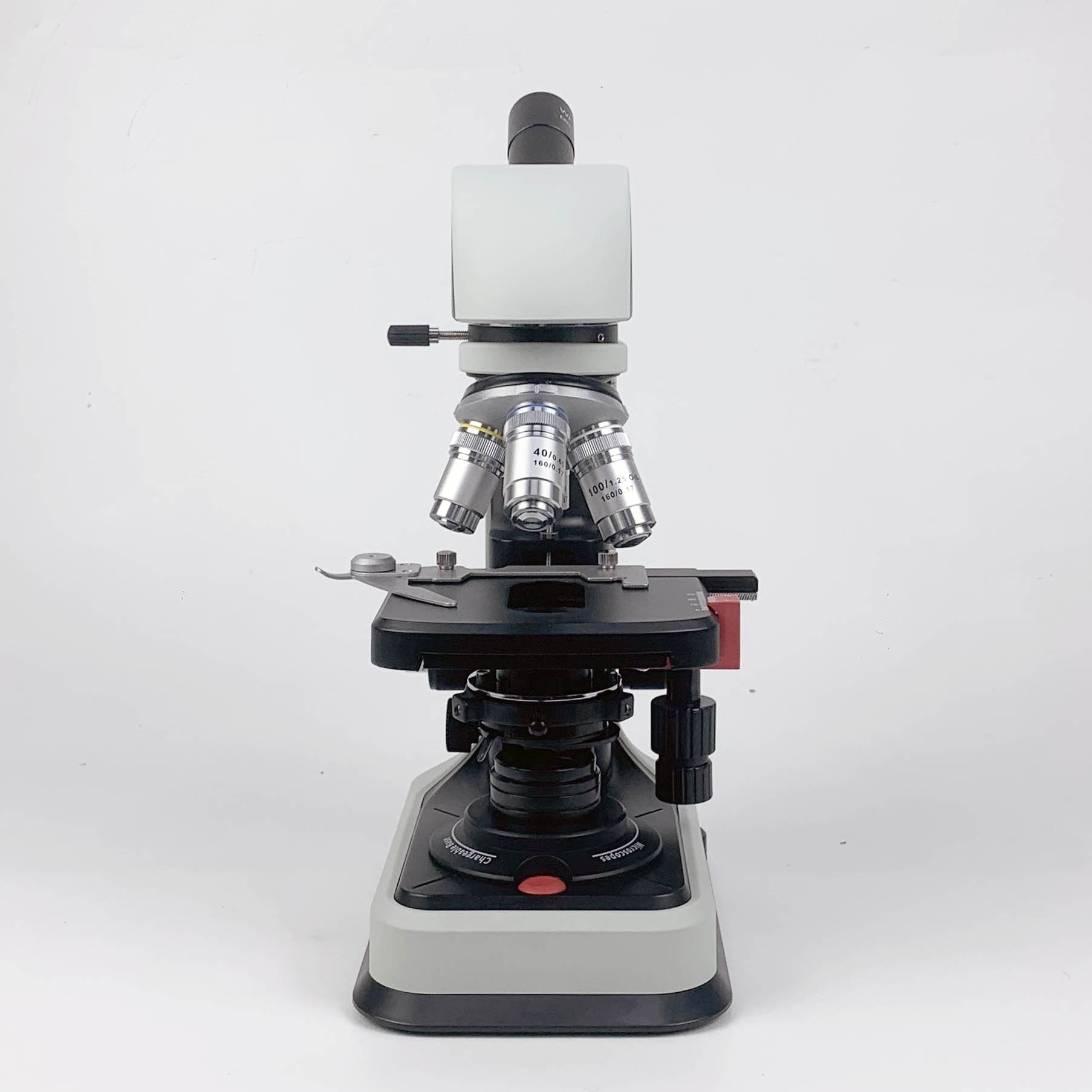

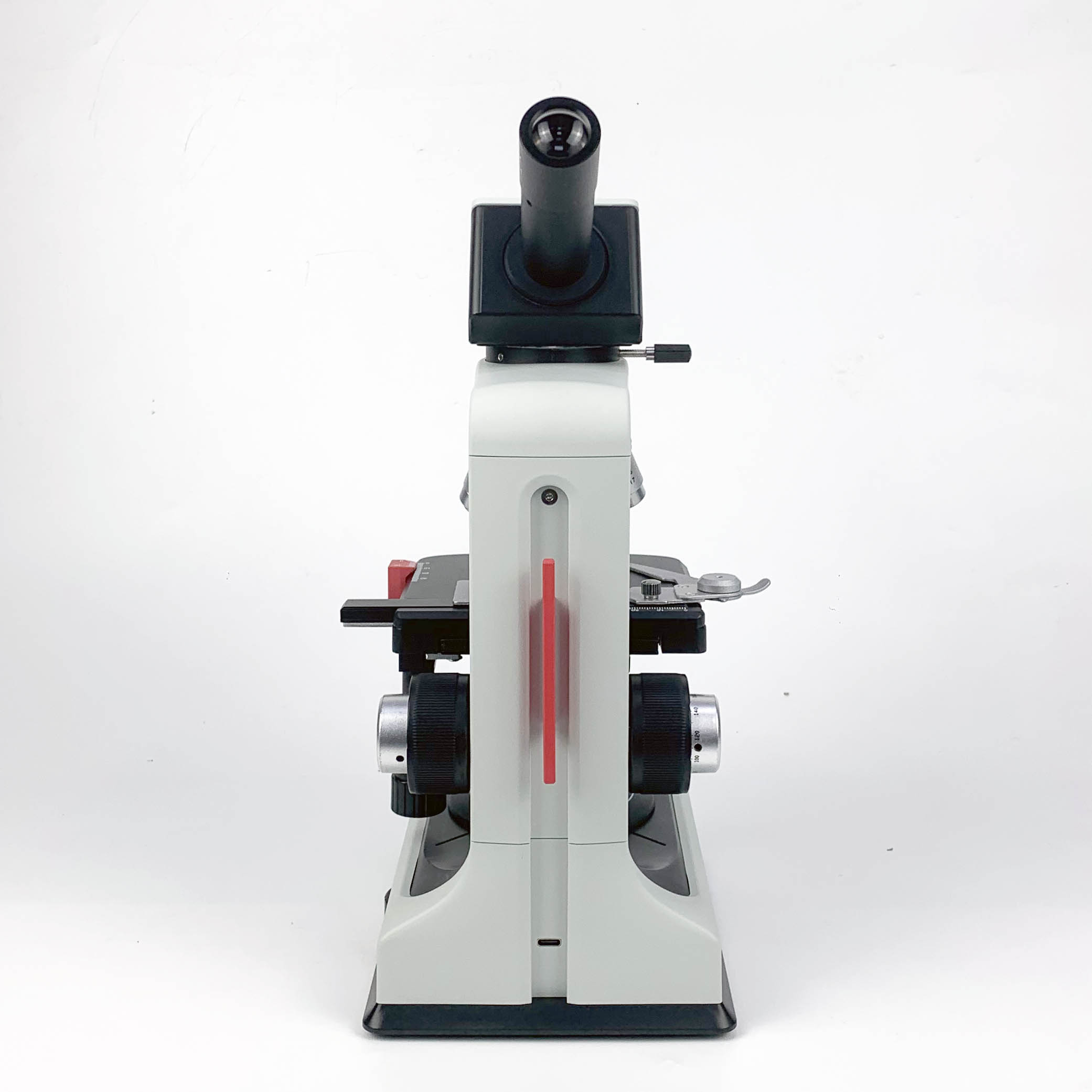

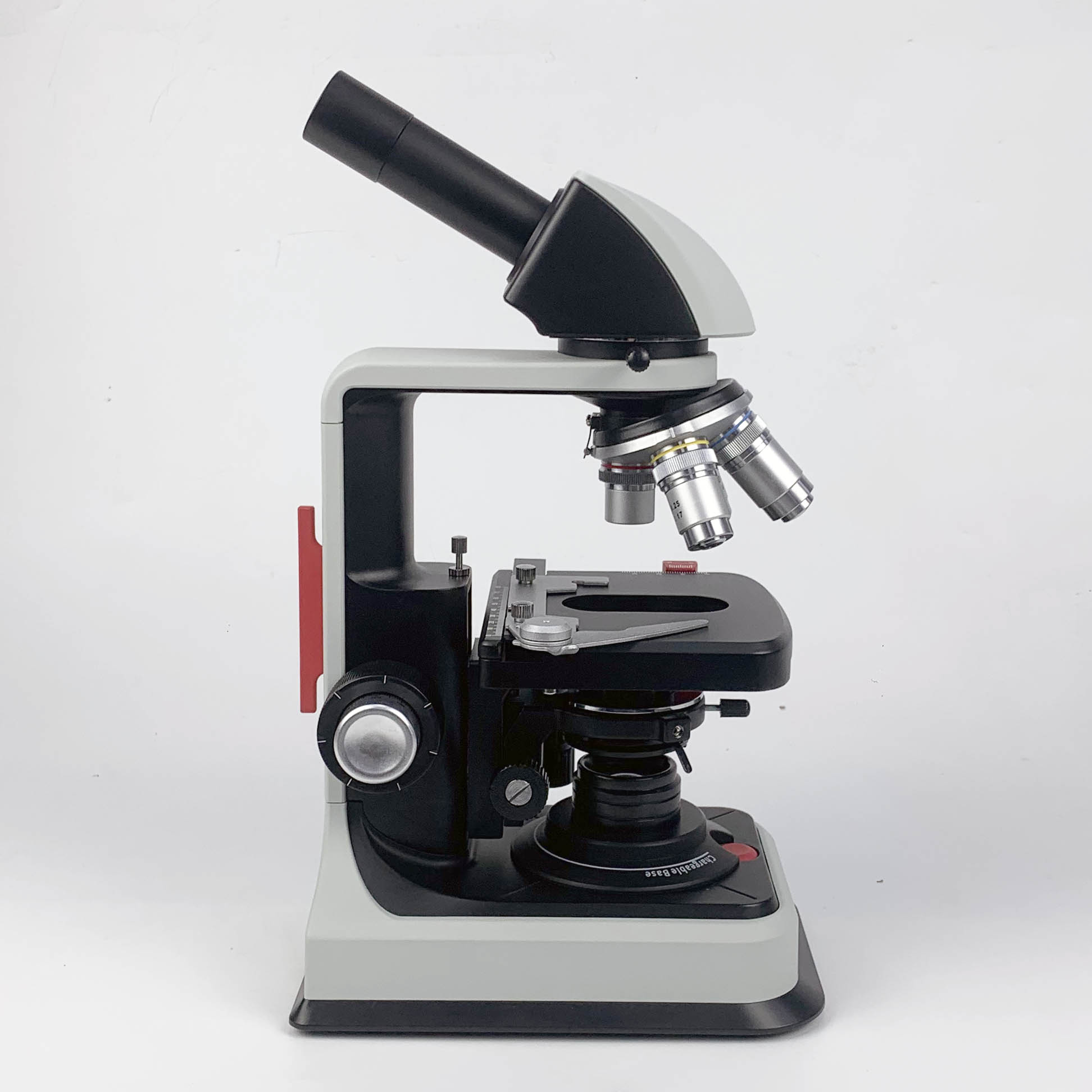

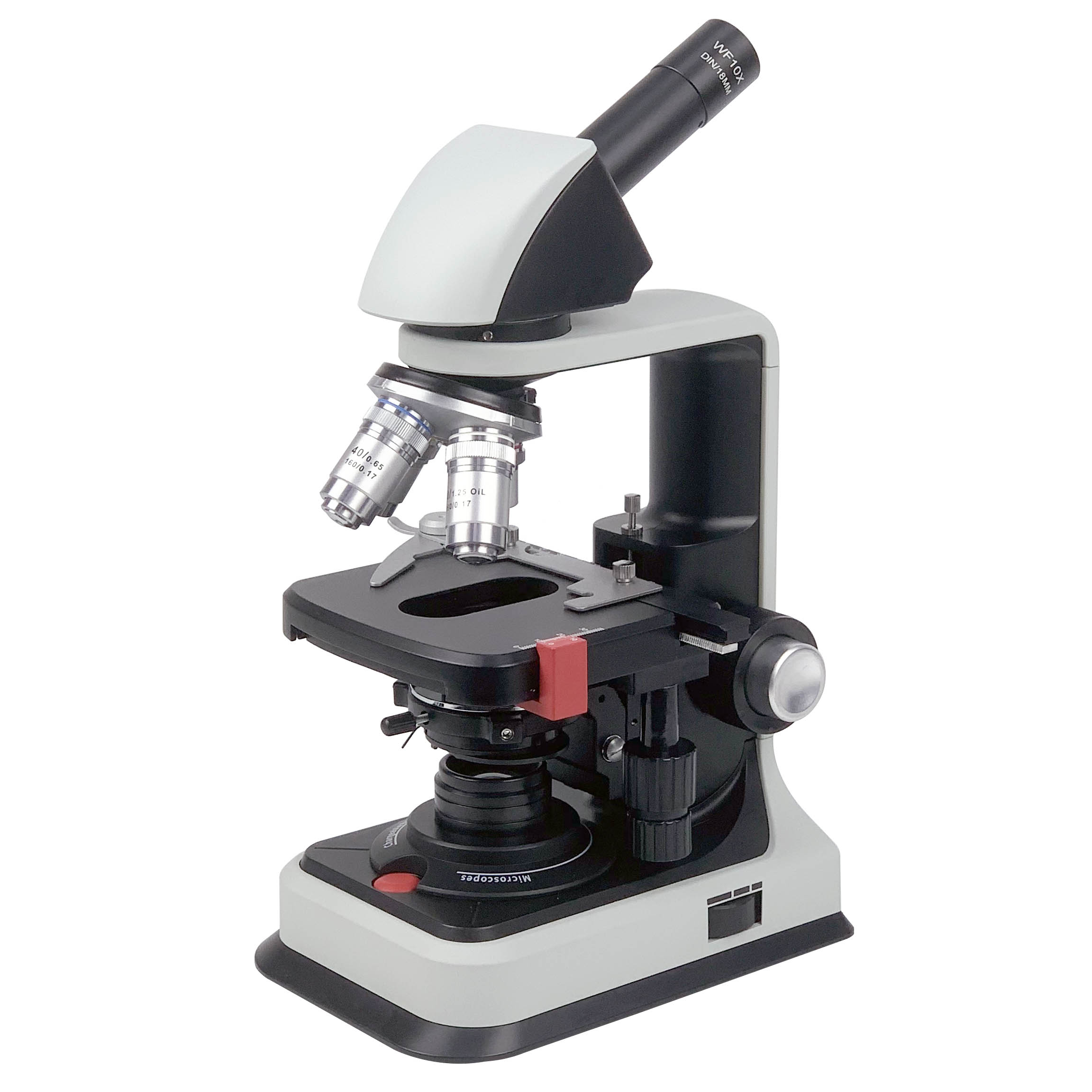

The NK-220 series microscope is an upright biological microscope from AMZ Instruments. It have, monocular, binocular, trinocular viewing head and offers magnification options of 40x, 100x, 400x, 1000x, 1600x, 2500x.
The microscope also features a built-in LED illumination system that provides bright and consistent lighting. It is ideal for applications such as biology, microbiology, and pathology.
The NK-220B is built with durable materials and is designed to provide high-quality images for many years of use.
|
|
NK-220A
|
NK-220AP
|
NK-220B
|
NK-220BP
|
NK-220T
|
NK-220TP
|
Head
|
Monocular head, 45° inclined, 360° rotatable, interpupillary distance 48-75mm, Left diopter adjustment ±5
|
●
|
●
|
໐
|
໐
|
໐
|
໐
|
Binocular head, 45° inclined, 360° rotatable, interpupillary distance 48-75mm, Left diopter adjustment ±5
|
໐
|
໐
|
●
|
●
|
໐
|
໐
|
Trinocular head, 45° inclined,360° rotatable, interpupillary distance 48-75mm, Left diopter adjustment ±5
|
໐
|
໐
|
໐
|
໐
|
●
|
●
|
Eyepiece
|
WF10X/18mm, insert diam23.2mm
|
●
|
●
|
●
|
●
|
●
|
●
|
WF10X/20mm, insert diam23.2mm
|
໐
|
໐
|
໐
|
໐
|
໐
|
໐
|
WF16X/13mm, insert diam23.2mm
|
໐
|
໐
|
໐
|
໐
|
໐
|
໐
|
WF25X/8mm, insert diam23.2mm
|
໐
|
໐
|
໐
|
໐
|
໐
|
໐
|
Achromatic objective
|
4X/0.1, 160/0.17, WD= 36.5mm
|
●
|
໐
|
●
|
໐
|
●
|
໐
|
10X/0.25, 160/0.17, WD= 0.76mm
|
●
|
໐
|
●
|
໐
|
●
|
໐
|
40X/0.65, 160/0.17, Spring, WD= 0.53mm
|
●
|
໐
|
●
|
໐
|
●
|
໐
|
100X/1.25, 160/0.17, Spring, Oil, WD= 0.13mm
|
●
|
໐
|
●
|
໐
|
●
|
໐
|
Plan achromatic objective
|
4X/0.10, 160/0.17
|
໐
|
●
|
໐
|
●
|
໐
|
●
|
10X/0.25, 160/0.17
|
໐
|
●
|
໐
|
●
|
໐
|
●
|
40X/0.65, 160/0.17
|
໐
|
●
|
໐
|
●
|
໐
|
●
|
100X/1.25, 160/0.17
|
໐
|
●
|
໐
|
●
|
໐
|
●
|
Nosepiece
|
Quadruple revolving nosepiece 1
|
●
|
/
|
●
|
/
|
●
|
/
|
Quadruple revolving nosepiece 2
|
/
|
●
|
/
|
●
|
/
|
●
|
Stage
|
Double layer mechanical stage, size110mmx120mm, moving range: 70mmx30mm
|
●
|
●
|
●
|
●
|
●
|
●
|
Rackless stage 110mmx120mm, moving range:70mmx30mm
|
໐
|
໐
|
໐
|
໐
|
໐
|
໐
|
Focusing
|
Coaxial coarse and fine focusing
|
●
|
●
|
●
|
●
|
●
|
●
|
Condenser
|
ABBE N.A.1.25 condenser with iris diaphragm & filter
|
●
|
●
|
●
|
●
|
●
|
●
|
Filter
|
Light blue filter
|
●
|
●
|
●
|
●
|
●
|
●
|
Light source
|
1W LED
|
●
|
●
|
●
|
●
|
●
|
●
|
Type-C USB cable
|
●
|
●
|
●
|
●
|
●
|
●
|
Rechargeable battery,(Note: if shipped by air, Battery not be offered with goods)
|
໐
|
໐
|
໐
|
໐
|
໐
|
໐
|
C-mount adapter
|
1X C-mount Adapter
|
/
|
/
|
/
|
/
|
●
|
●
|
Dimension
|
200x140x360mm (L*W*H)
|
●
|
●
|
●
|
●
|
●
|
●
|
Note: "●" Standard outfit "໐" Optional outfit
|
