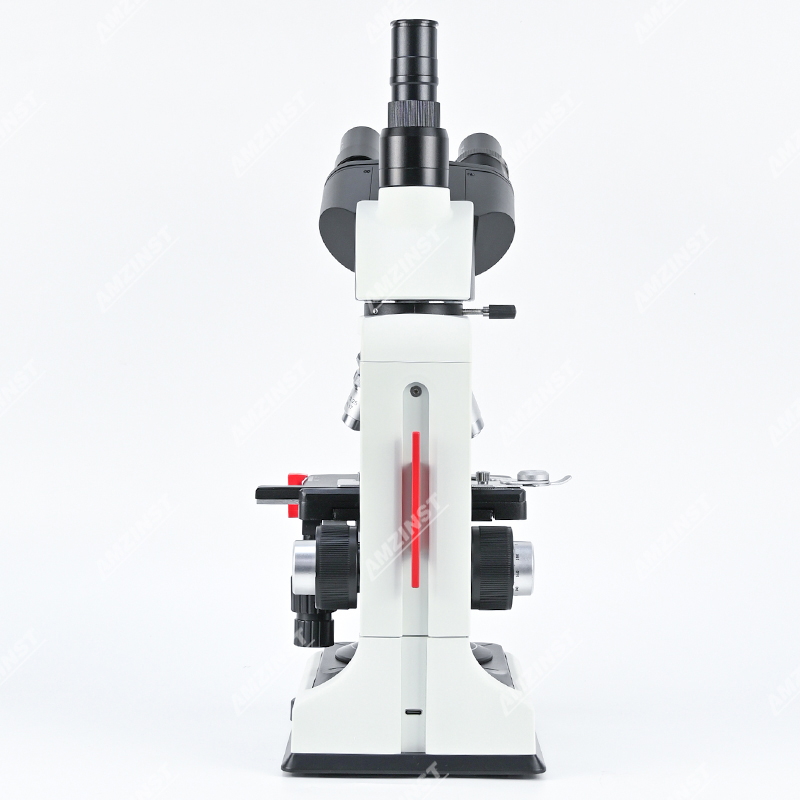

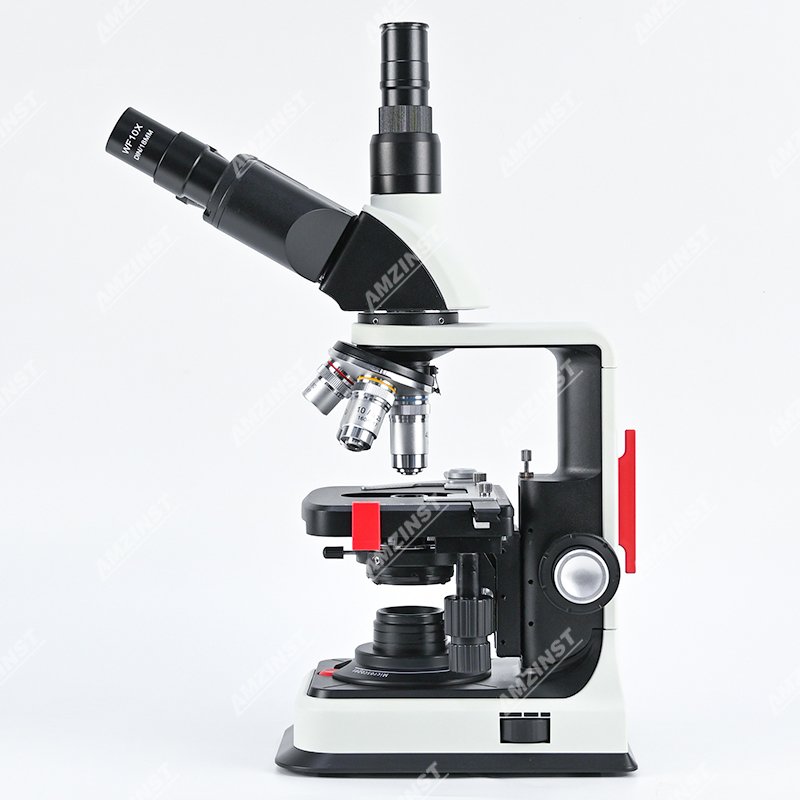

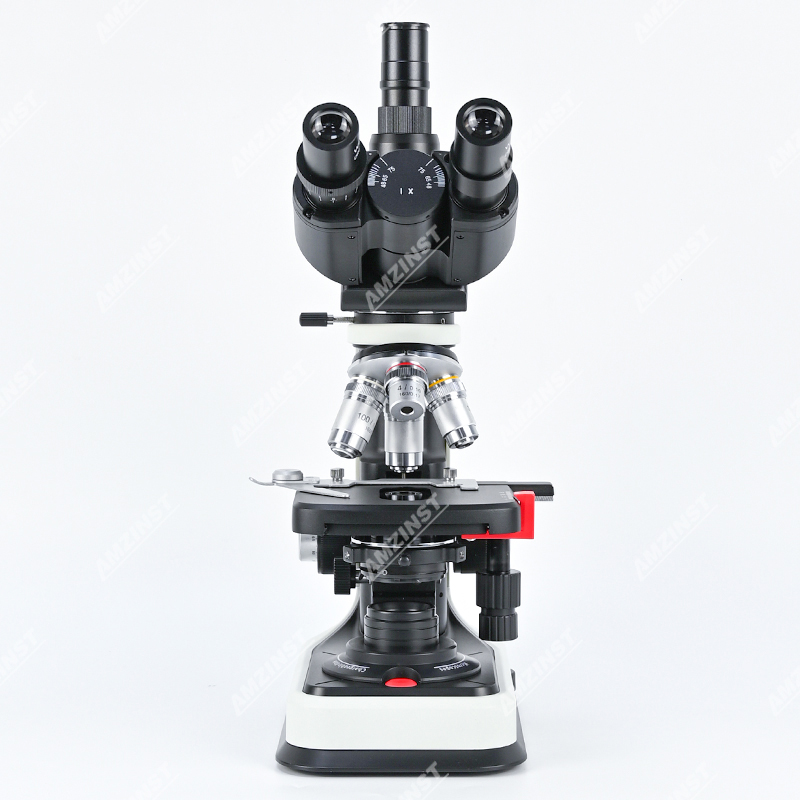

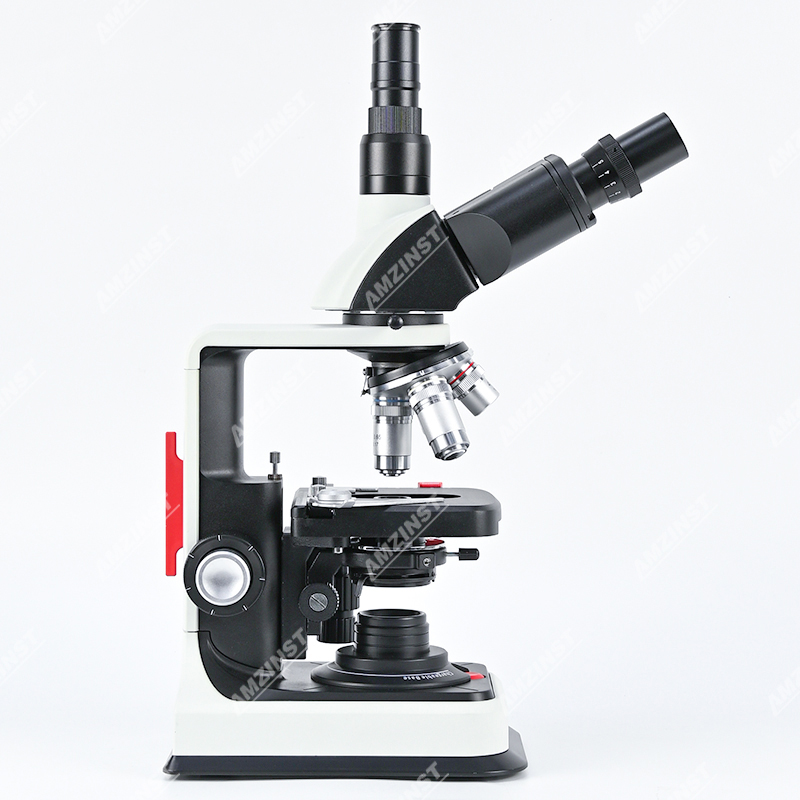

NK-220T New Design Trinocular Biological Microscope
  • Specifications
  • Accessories
  • Products Catalog
  • The NK-220 series microscope is an upright biological microscope from AMZ Instruments. It have, monocular, binocular, trinocular viewing head and offers magnification options of 40x, 100x, 400x, 1000x, 1600x, 2500x.

    The microscope also features a built-in LED illumination system that provides bright and consistent lighting. It is ideal for applications such as biology, microbiology, and pathology.

    The NK-220B is built with durable materials and is designed to provide high-quality images for many years of use.



    NK-220A
    NK-220AP
    NK-220B
    NK-220BP
    NK-220T
    NK-220TP
    Head
    Monocular head, 45° inclined, 360° rotatable, interpupillary distance 48-75mm, Left diopter adjustment ±5






    Binocular head, 45° inclined, 360° rotatable, interpupillary distance 48-75mmLeft diopter adjustment ±5






    Trinocular head, 45° inclined,360° rotatable, interpupillary distance 48-75mmLeft diopter adjustment ±5






    Eyepiece
    WF10X/18mm, insert diam23.2mm






    WF10X/20mm, insert diam23.2mm






    WF16X/13mm, insert diam23.2mm






    WF25X/8mm, insert diam23.2mm






    Achromatic objective
    4X/0.1, 160/0.17, WD= 36.5mm






    10X/0.25, 160/0.17, WD= 0.76mm






    40X/0.65, 160/0.17, Spring, WD= 0.53mm






    100X/1.25, 160/0.17, Spring, Oil, WD= 0.13mm






    Plan achromatic objective
    4X/0.10, 160/0.17






    10X/0.25, 160/0.17






    40X/0.65, 160/0.17






    100X/1.25, 160/0.17






    Nosepiece
    Quadruple revolving nosepiece 1

    /
    /
    /
    Quadruple revolving nosepiece 2
    /
    /
    /
    Stage
    Double layer mechanical stage, size110mmx120mm, moving range: 70mmx30mm






    Rackless stage 110mmx120mm, moving range:70mmx30mm






    Focusing
    Coaxial coarse and fine focusing






    Condenser
    ABBE N.A.1.25 condenser with iris diaphragm & filter






    Filter
    Light blue filter






    Light source
    1W LED






    Type-C USB cable






    Rechargeable battery,(Note: if shipped by air, Battery not be offered with goods)






    C-mount adapter
    1X C-mount Adapter
    / / / /
    Dimension
    200x140x360mm (L*W*H)






    Note: "●" Standard outfit "໐" Optional outfit
