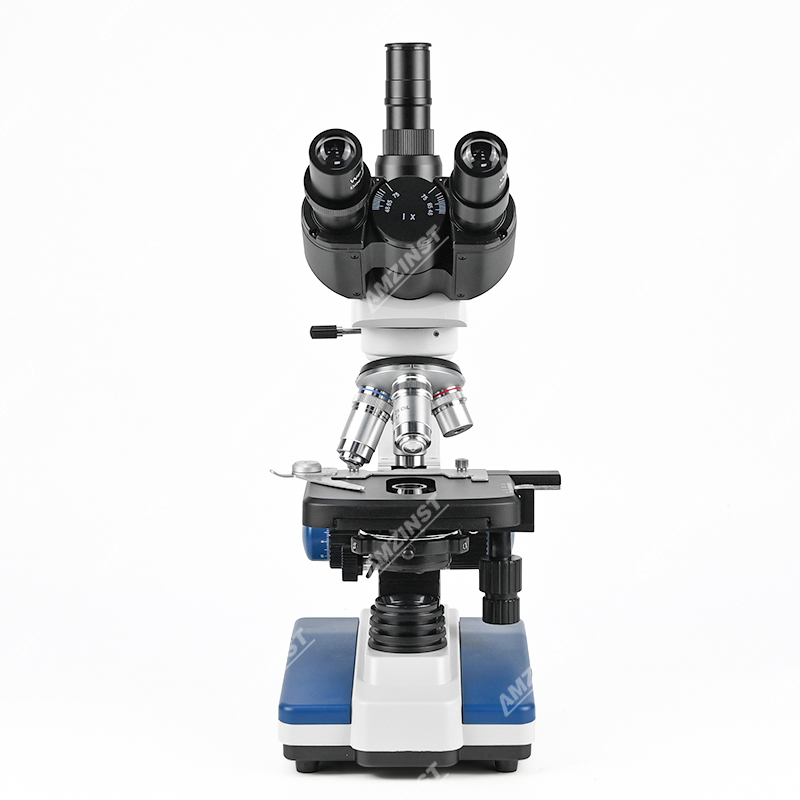

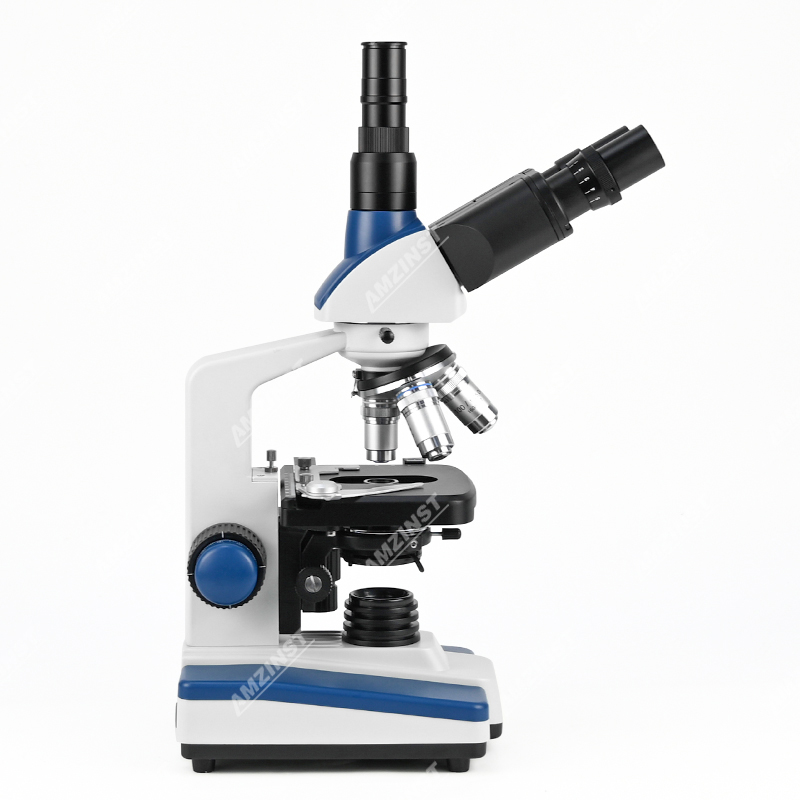

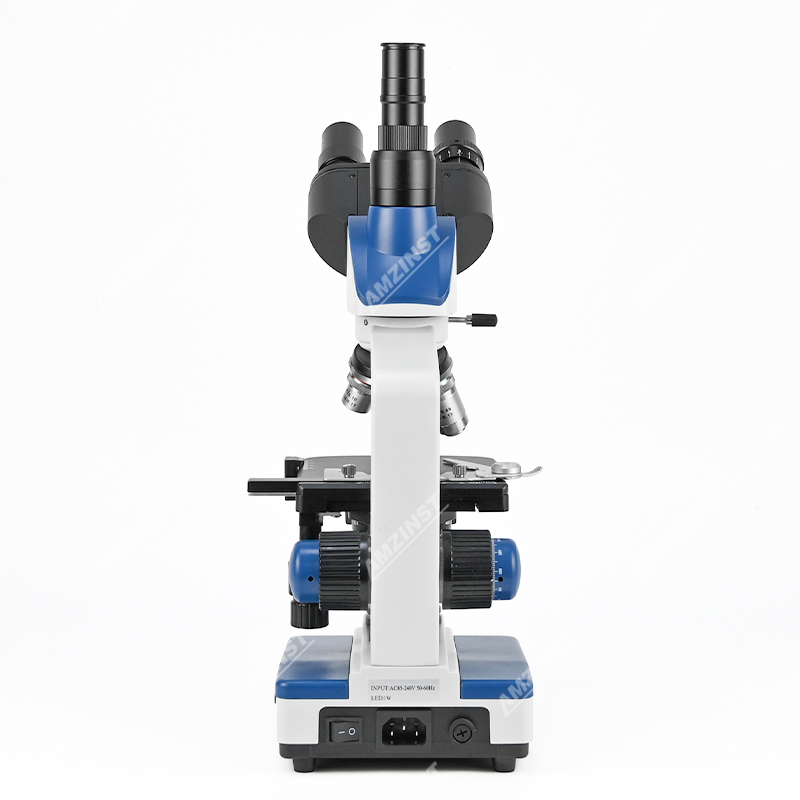

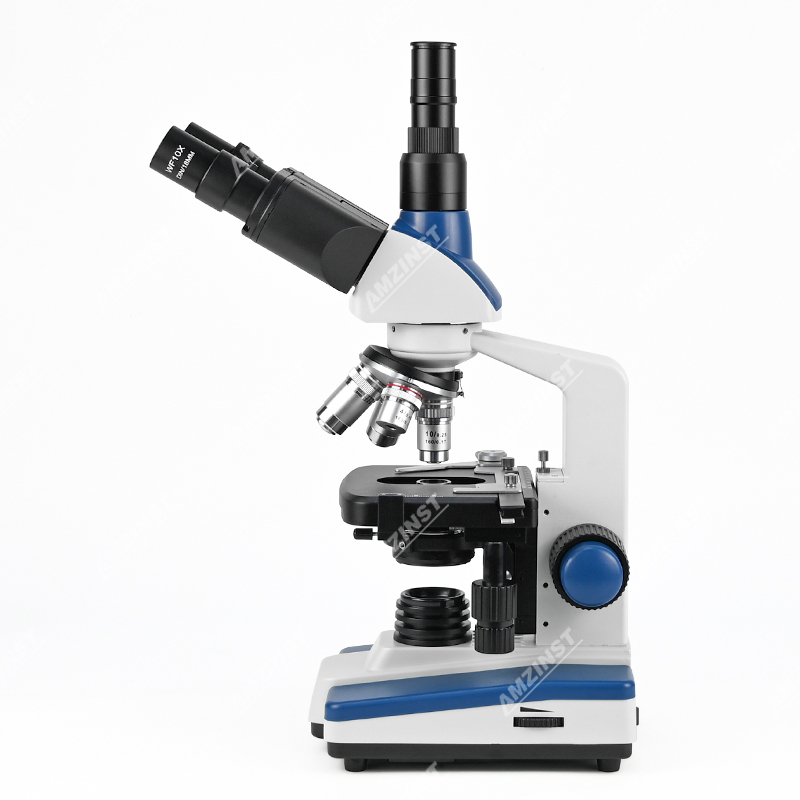

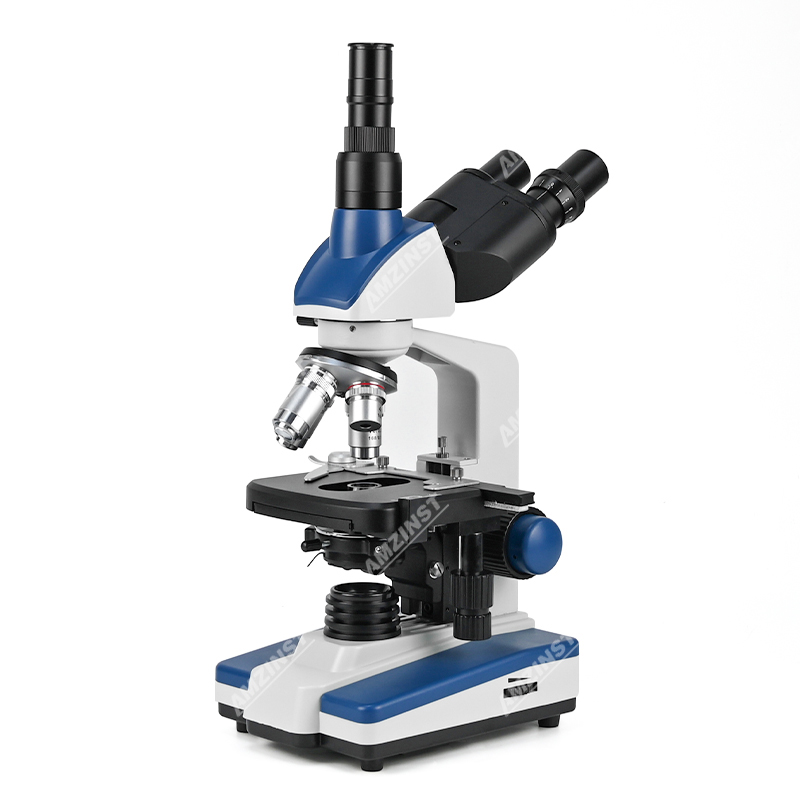

NK-210T 40X-2500X Classic LED Trinocular Brightfield Biological Microscope

NK-210A

NK-210B

NK-210T

Head

Monocular head, 45° inclined, 360° rotatable, interpupillarydistance 48-75mm, Left diopter adjustment ±5

●

໐

Binocular head, 45° inclined, 360° rotatable, interpupillary distance 48-75mm, Left diopter adjustment ±5

໐

●

໐

Trinocular head, 45° inclined, 360° rotatable, interpupillary distance 48-75mm, Left diopter adjustment ±5

໐

●

Eyepiece

WF10X/18mm, insert diam23.2mm

●●

WF10X/20mm, insert diam23.2mm

໐

WF16X/13mm, insert diam23.2mm

໐

WF25X/8mm, insert diam23.2mm

໐

DIN achromatic objective

4x N.A.0.10, W.D.=18.6mm

●

10x N.A.0.25, W.D.=6.5mm

●

40x(S) N.A.0.65, W.D.=0.47mm

●

100x(S, Oil) N.A.1.25, W.D.=0.07mm

●

Nosepiece

Inwards quadplex nosepiece

●

Condenser

NA1.25 Abbe condenser with iris diaphragm

●

Mechanical stage

Anti-scratch painting double-layer stage size: 118mm x 127mm, travel: 70mm x 21mm, with caliper

●

120 x 135 mm, ball-bearing mechanism, with X and Y adjustment 75 x 35 mm (optional)

໐

Focusing

Coaxial coarse and fine focusing knobs, travel range: 26mm, Scale: 0.002mm (2um)

●

Transmitted illumination

Variable-intensity 1W LED

●

Main body material

Aluminum die-cast

●

Input voltage

90V-240V 50/60Hz

●

Microscope dimension

180x150x370mm (L*W*H)

●

Packing list

1x Microscope
1x Pair of 10x eyepieces
1x Bule filter
1x Immersion oil
1x Dust cover
1x Power cable
