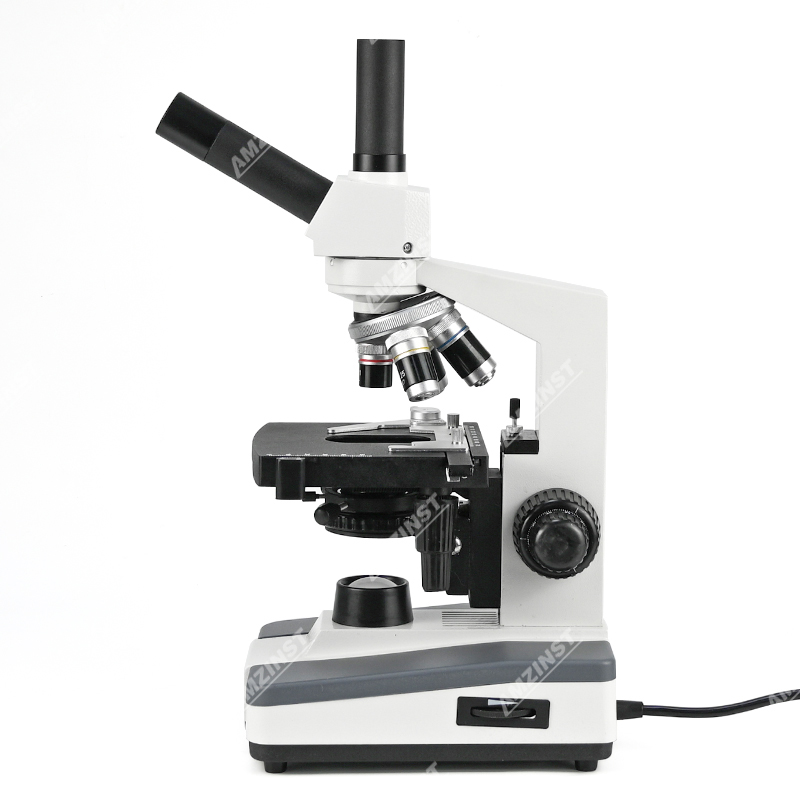

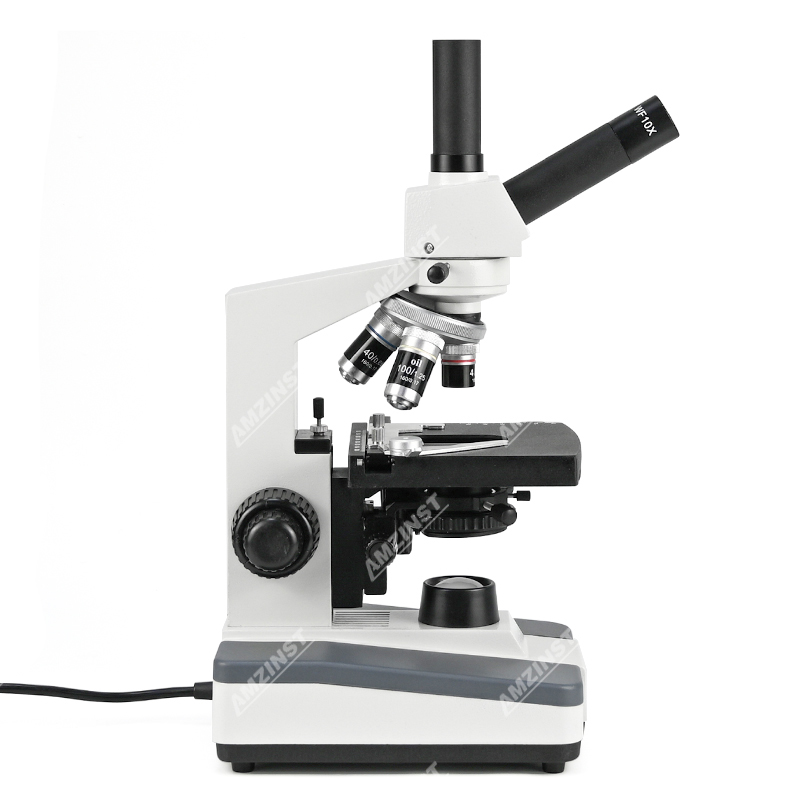

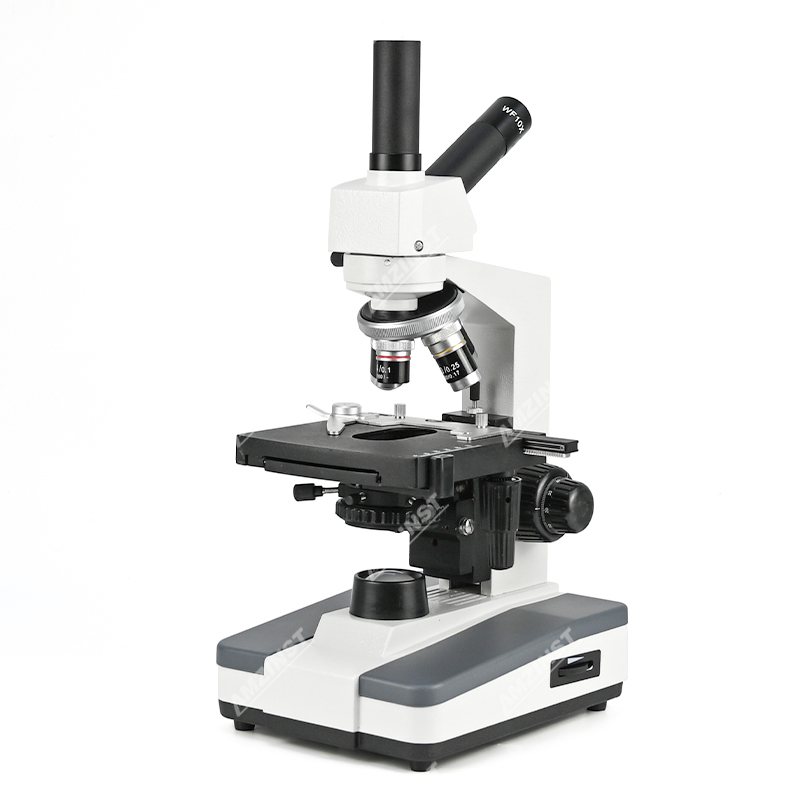

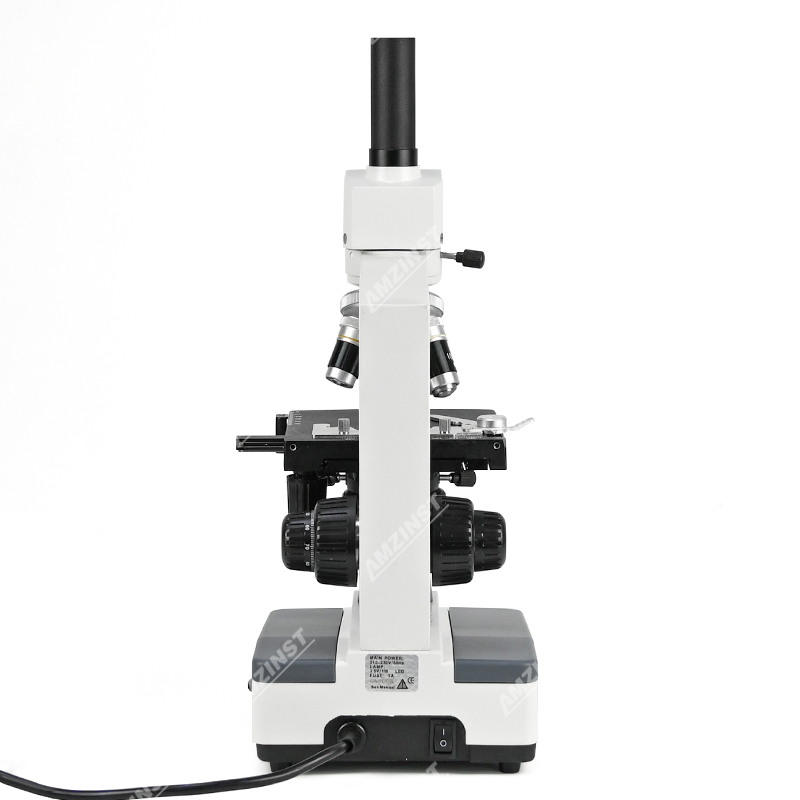

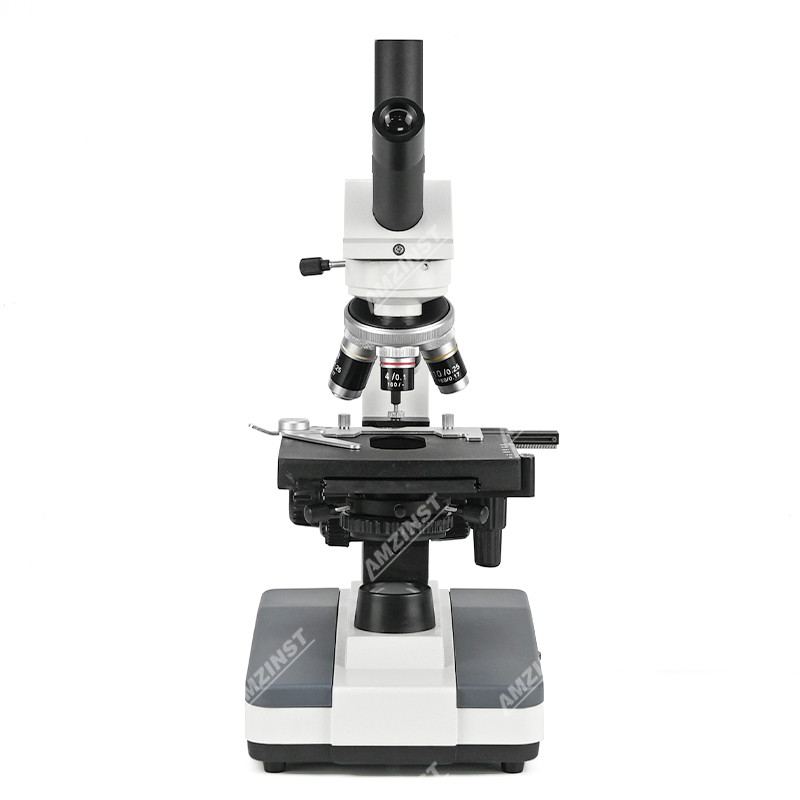

NK-201E 40x-1000x Biological Microscope With Vertical Tube
  • Specifications
  • Accessories
  • Products Catalog
  • ● Dual observation head: One tube 30° Inclined and another tube vertical, 360° rotatable
    ● Eyepiece: WF10X/18mm
    ● Achromatic Objective:
    - 4x/0.1, W.D.=37.5mm
    - 10x/0.25, W.D.=7.316mm
    - 40x/0.65 (S), W.D.=0.632mm
    - 100x/1.25 (S,Oil), W.D.=0.198mm
    ● Nosepiece: Backward quadruple nosepiece
    ● Stage: double layers mechanical stage 130X130mm, moving range X-Y: 60X30mm
    ● Condenser: ABBE N.A.1.25; Ф2-Ф30mm Iris Diaphragm
    ● Filter: Ф32 Bule, Green, Yellow
    ● Focusing: Coaxial coarse & fine focusing, coarse stroke 20mm, fine precision 0.01mm
    ● Illumination: Built-in adjustable brightness 1W LED ( 6V/20W Halogen Lamp for optional)
    ● Input power: 100V-240V, 50/60Hz
    ● Microscope Dimension: 20.5*16.5*40.5cm
